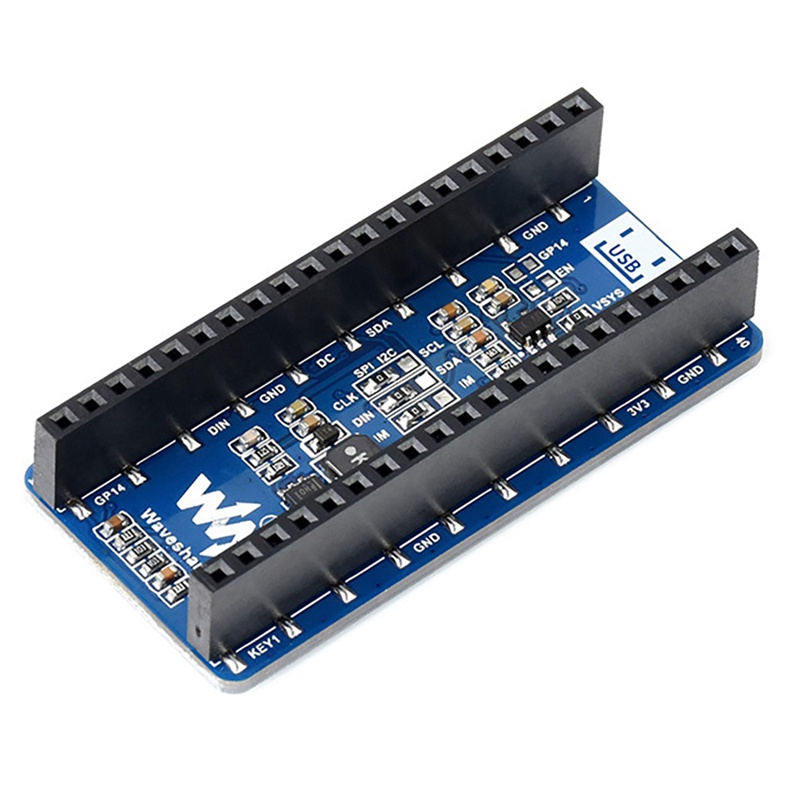

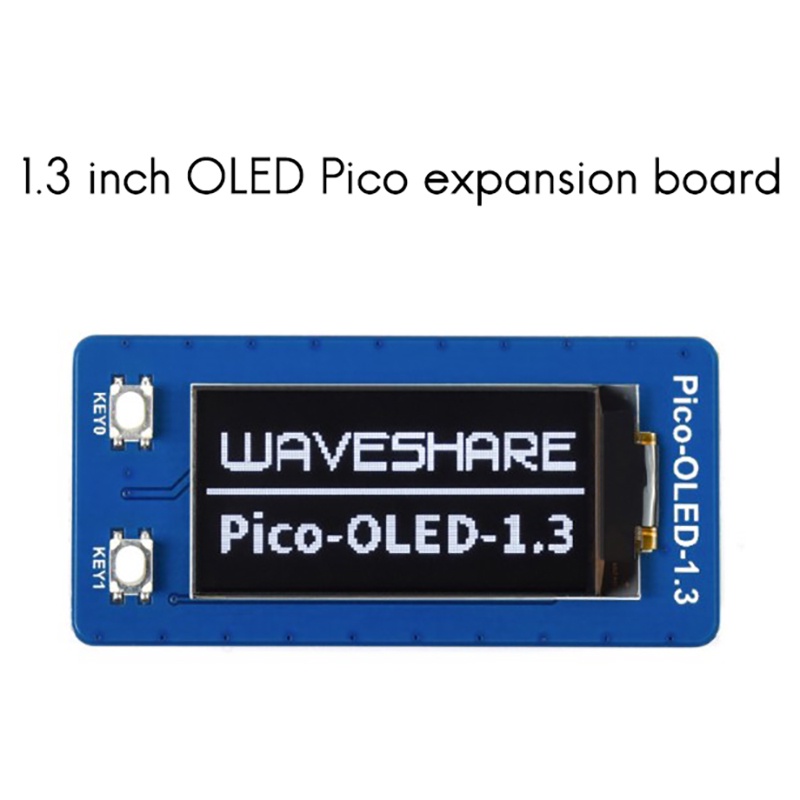

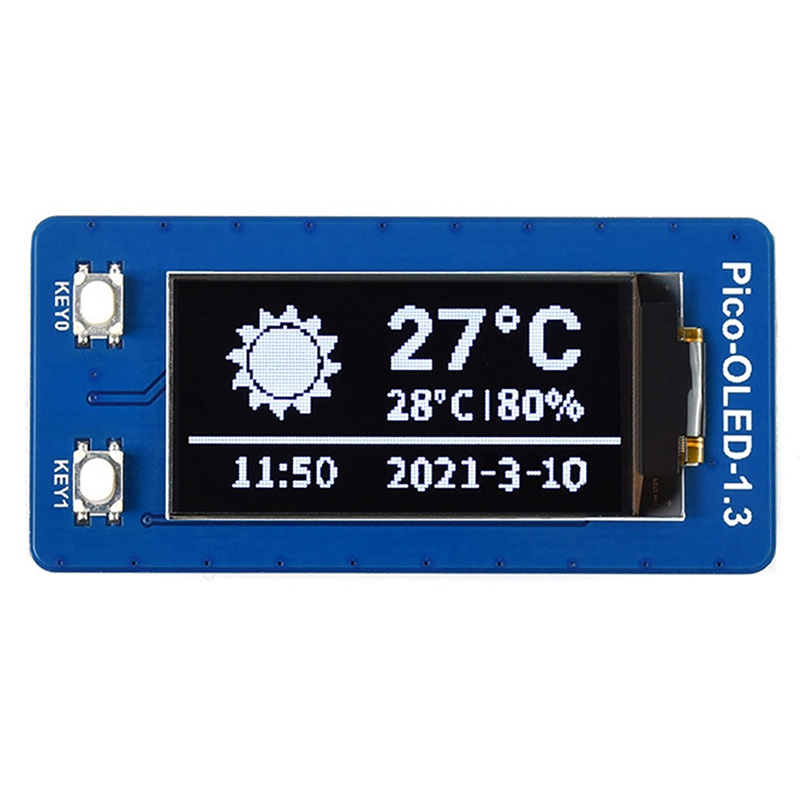

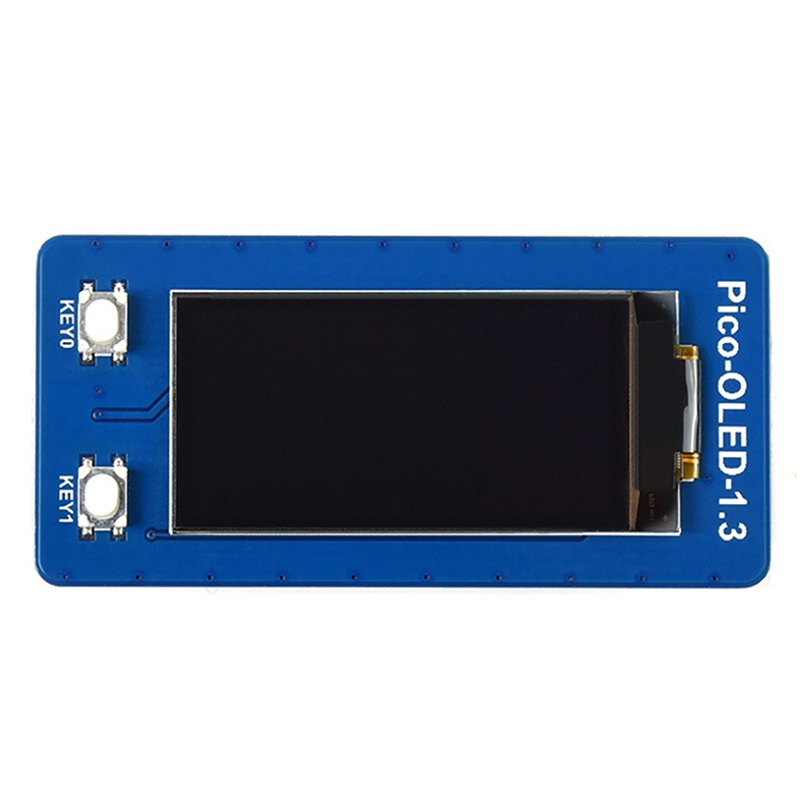

Waveshare Display ule for Raspberry Pico 1.3-Inch OLED Display ule SH1107 I2C/SPI Communication Expansion Board
0 Đánh Giá
Đã Bán 0
116
249.000 đ
Mua ngay trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
Cập nhật: chủ nhật 02/08/2026 lúc 10:32 SA
LỊCH SỬ GIÁ SẢN PHẨM
Đang tải lịch sử giá...
SO SÁNH GIÁ
MÔ TẢ SẢN PHẨM
1. Adopt four-wire SPI and I2C two interfaces, good compatibility and high transmission speed
2. Built-in SH1107 driver chip, use SPI, I2C interface to communicate
3. Comes with 2 buttons for easy expansion of applications

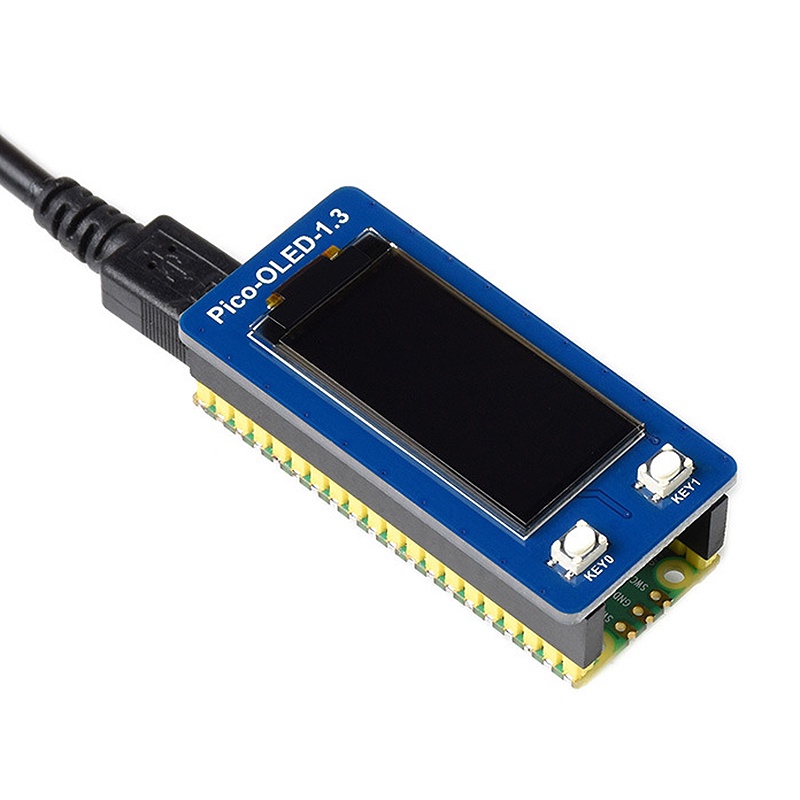

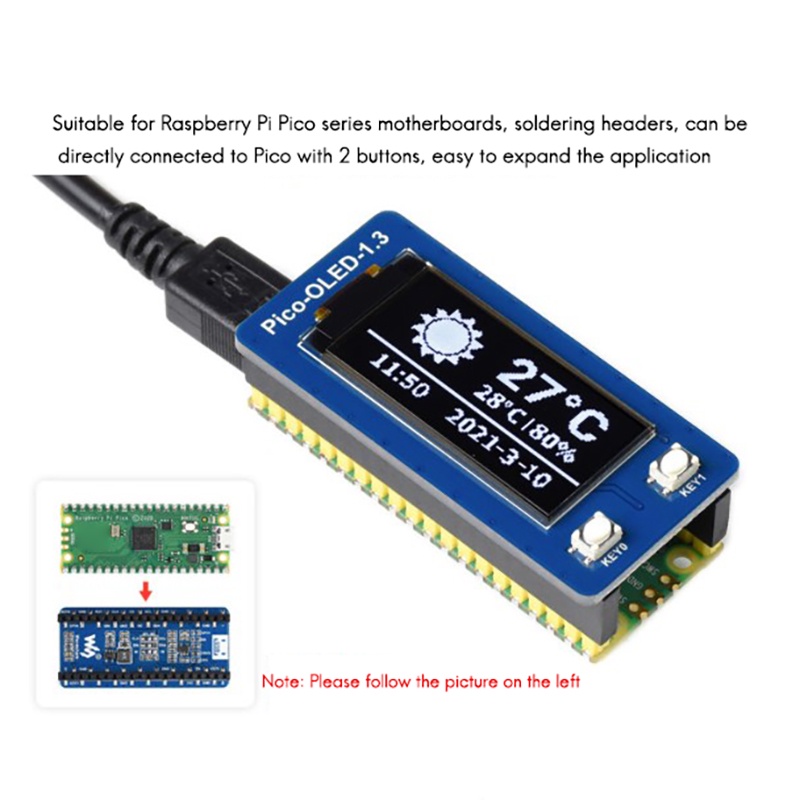

4. Onboard for Raspberry Pi Pico interface, suitable for Raspberry Pi Pico series motherboards
5. Mini and exquisite, easy to operate and easy to use
Product parameters:
Product name: Pico-OLED 1.3 inch display ule
Working voltage: 3.3V
Resolution: 64x128 pixels
Communication interface: 4-wire SPI, I2C
Display panel: OLED
Control chip: SH1107
Colour:Blue
Material:PCB+metal

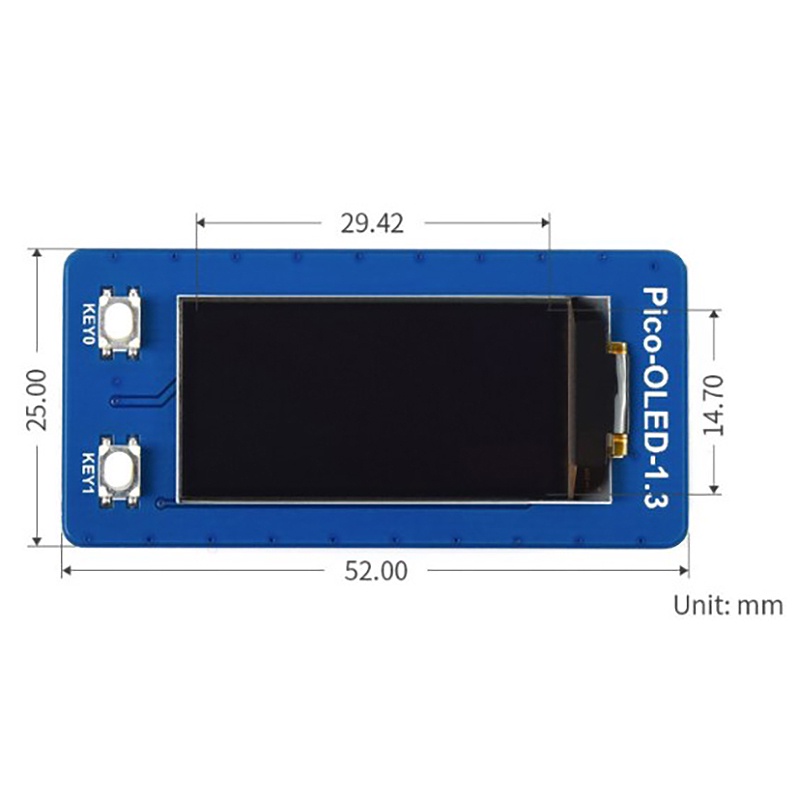

Size:52x25mm
Pixel size: 0.15x0.15mm
Display size: 14.70x29.42mm
Package Contents:
1 * 1.3 inch OLED display uleOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
2. Built-in SH1107 driver chip, use SPI, I2C interface to communicate
3. Comes with 2 buttons for easy expansion of applications
4. Onboard for Raspberry Pi Pico interface, suitable for Raspberry Pi Pico series motherboards
5. Mini and exquisite, easy to operate and easy to use
Product parameters:
Product name: Pico-OLED 1.3 inch display ule
Working voltage: 3.3V
Resolution: 64x128 pixels
Communication interface: 4-wire SPI, I2C
Display panel: OLED
Control chip: SH1107
Colour:Blue
Material:PCB+metal
Size:52x25mm
Pixel size: 0.15x0.15mm
Display size: 14.70x29.42mm
Package Contents:
1 * 1.3 inch OLED display uleOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
