Thiết Bị Đo Dao Động Kỹ Thuật Số Gvs 2.4 Tft 3z

2.4 tft digital oscilloscope probe


Specifications:

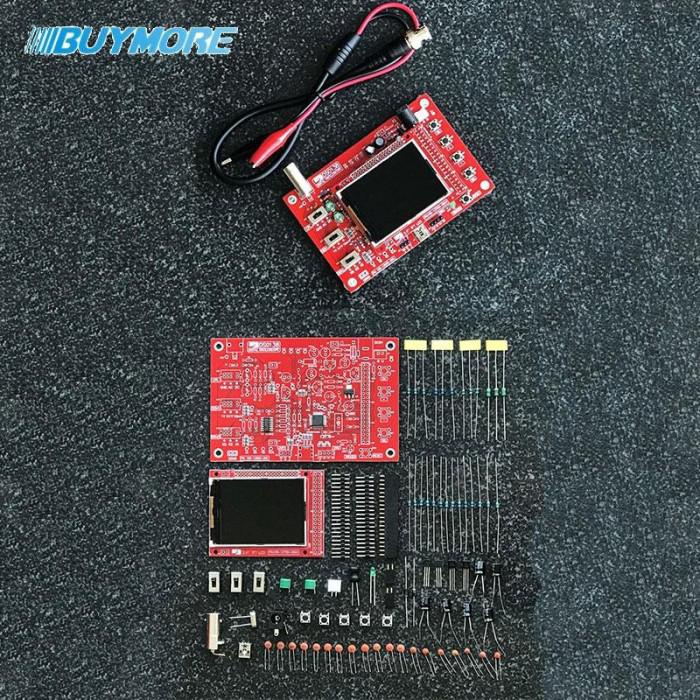

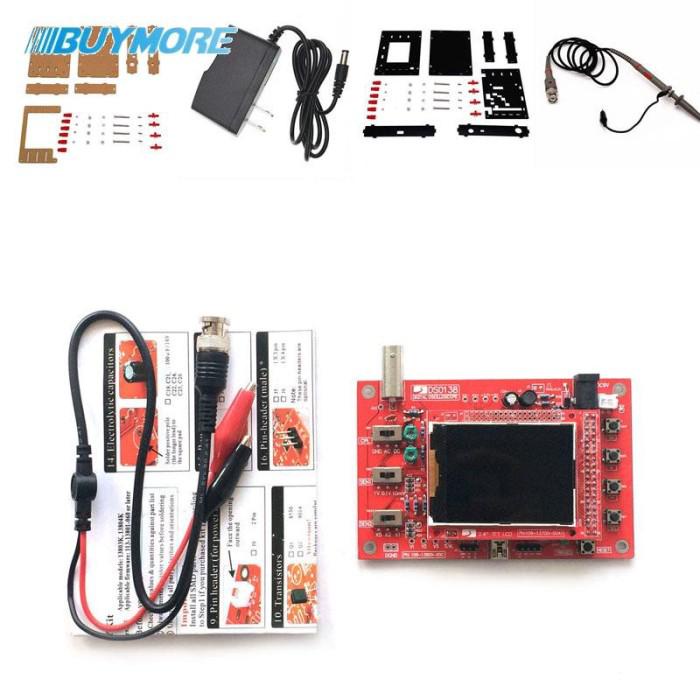

Color and style: Dso138 us plug power / dso138 acrylic shell / dso138 black acrylic shell / dso138 parts / dso138 finished module / dso138 probe (Optional)
Abs + acrylic + stainless steel material
Ac 100-240v 9v dc 9v voltage output cable length plug input
Highest real-time sampling rate: 1msps
Accuracy: 12 bits
Sample buffer depth: 1024 bytes
Width band analog: 0-200khz
Vertical sensitivity: 10mv / div - 5v / div (progress by 1-2 - 5)
The vertical displacement is adjustable and carry with an indication
Impedance input: 1m
Maximum input voltage: 50vpp (1: 1 probe), 400vpp (10: 1 probe)
Horizontal time base range: 10s / div - 50s / div (progressive by 1-2 - 5)
Features:
- automatic., Conventional and single trigger mode, Easy to capture the instantaneous waveform, Available in ascent and descent edge trigger
The trigger level position is adjustable and carry with an indication.
- can observe the waveform before trigger, can frozen the display of waveform at any time.
- with 1khz / 3.3v square wave test signal source, With the waveform digital display, The paramedics can be displayed are: Frequency, Cycle., Pulse width, Duty cycle., Maximum, Minimum, Averages, # peak and peak #, Effective value.
Save / recall the waveform, the waveform does not disappear when turn off the power.
Product size:
Dso138 power supply 7x6 x 2.7cm

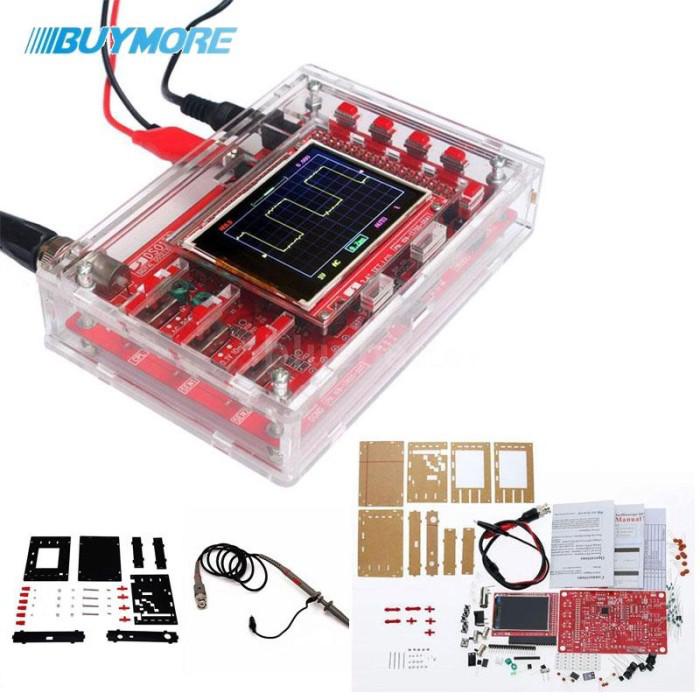

Dso138 acrylic shell 13x9 x 2cm

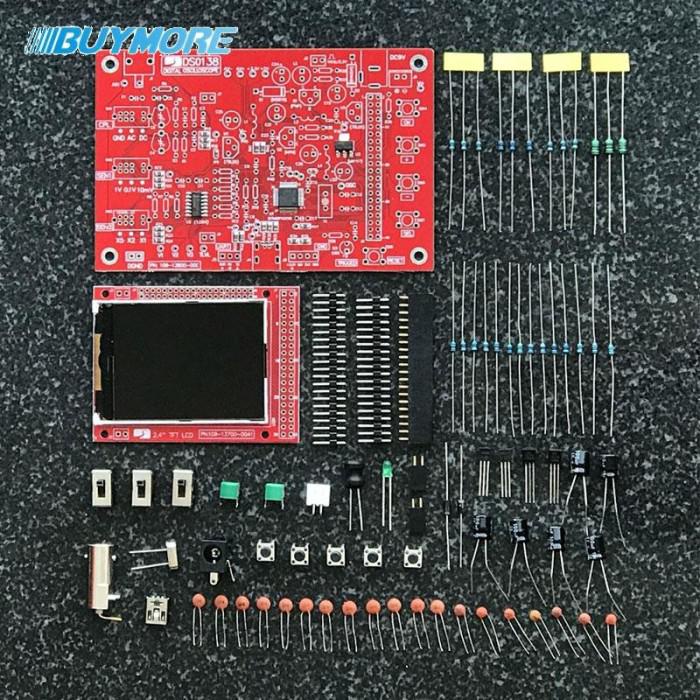

Dso138 parts: 1

Provides a variety of server printings
