Teaching Portable HD 1080P Broadcast Gaming Audio Home Office Live Stream HDMI To USB 2.0 Video Capture Card
1 Đánh Giá
Đã Bán 2
72
202.000 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
thứ năm 29/04/2021 lúc 11:51 CH
MÔ TẢ SẢN PHẨM
Features:
Resolution: The maximum input resolution is 4K, and the maximum output resolution is 1080P.
Transmission: 8/10/12 bit color depth;When using standard AWG26 cable, the input transmission distance is up to 15 meters (1080P and below resolution);
Support: Support most acquisition software, support for Windows, for Android and for MacOS;
USB: Comply with USB video UVC specification;Comply with USB audio UAC specification;
Portable: No external power supply, compact size and easy to carry.
Specification
Material: Plastic, electronic components

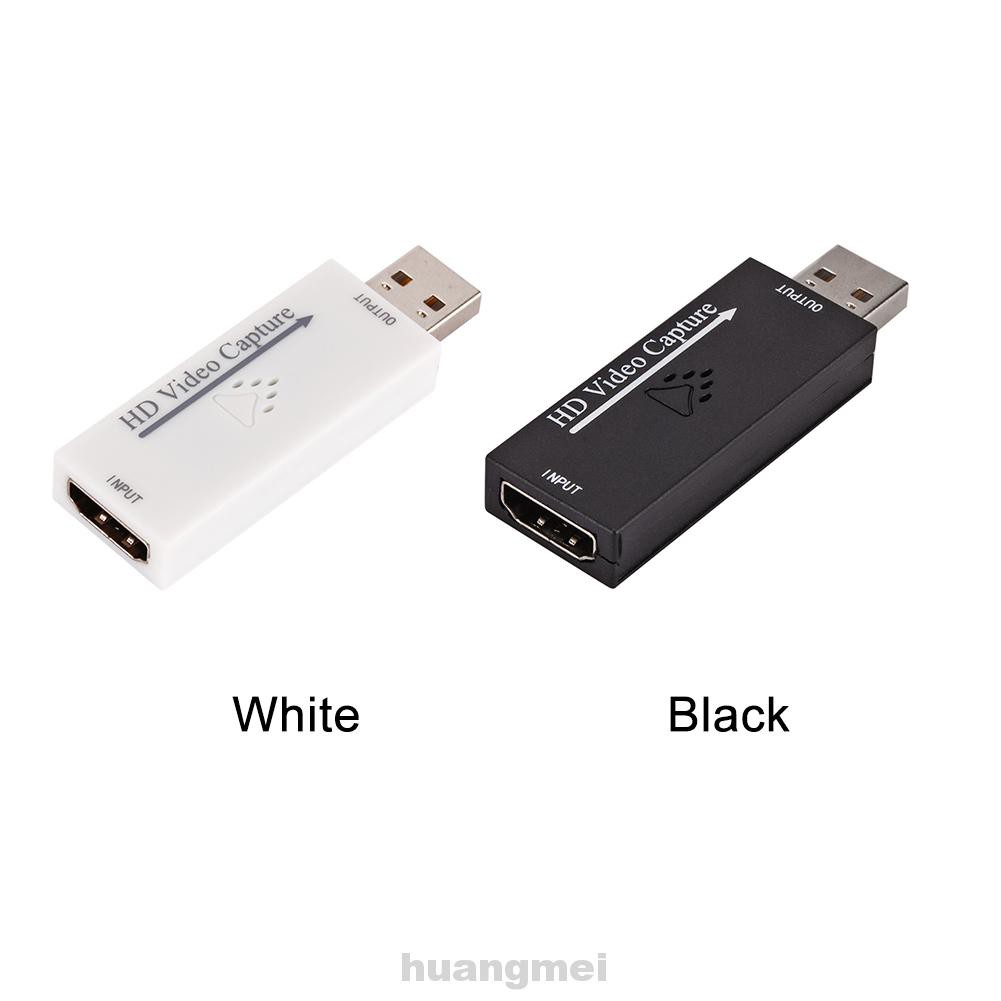

Color: White, black

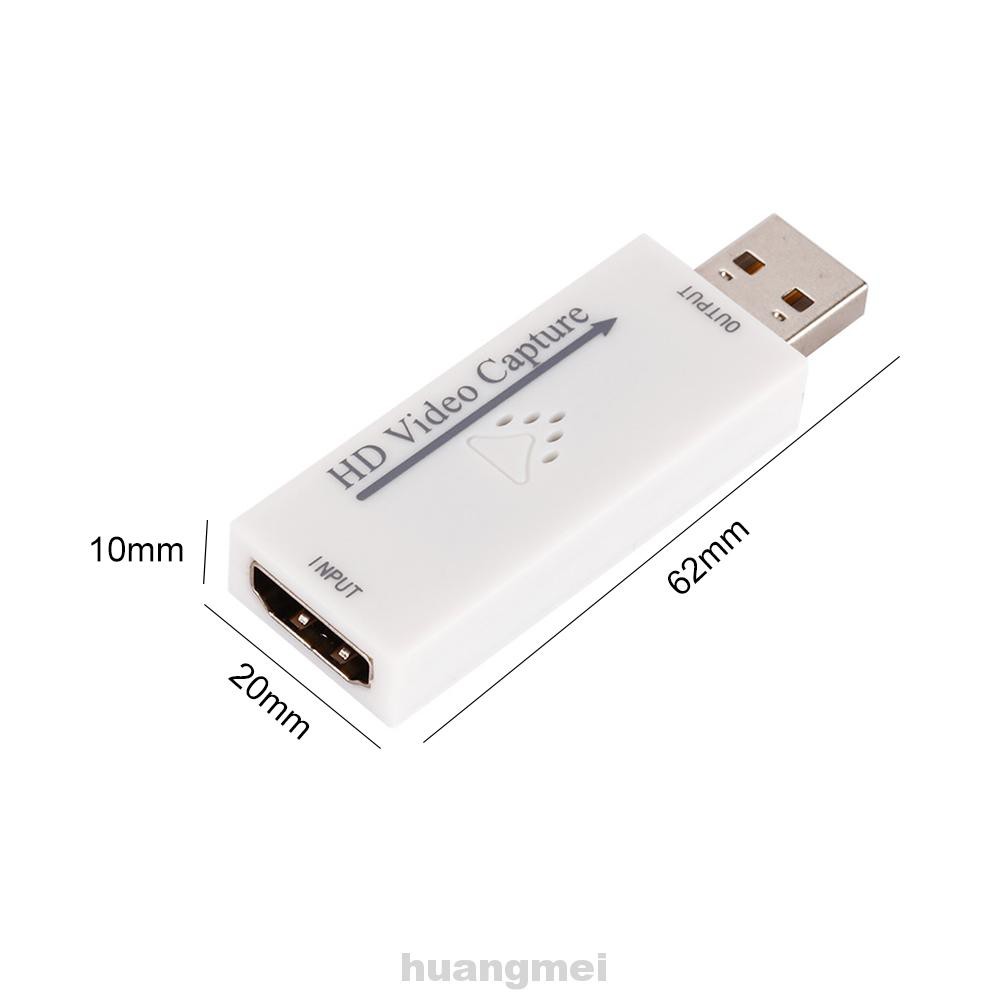

Size(L x W x H): About 62 x 20 x 10 mm
HDMI resolution: 4K for maximum input
Video input format :8/10/12 bit color depth
Video output mode :YUV, JPEG
Video output resolution: Maximum output resolution is 1080P
Support audio format :L-PCM
Input cable length :≤15 m, AWG26 HDMI standard cable
Maximum working current: 0.4a /5VDC
Operating temperature range :-10 to +55℃
Connection operation:
1: Connect the UHD signal source to the HDMI input port of the USB capture card via an HDMI cable
2: Plug the USB socket of the USB acquisition card into the USB port of the computer
3: Acquisition operation steps (OBS): open software → add a new source → select 'Video capture device' → Set screen size →
Select 'Studio mode' (double window) → click 'Start recording', as shown in the figure below
1. Add a new source and select 'Video capture device' 2. Set screen size
3. Select 'studio Mode' (double-window) to complete the above Settings.
Tips:
Computer side hardware configuration requirements
CPU: PC I5-3400 or above;NB I7-3537U 2.0GHZ or above
Graphics card: PC NVIDIA GT630 or above;NC NVIDIA GT735M or above
Storage: 4G RAM
Package included:

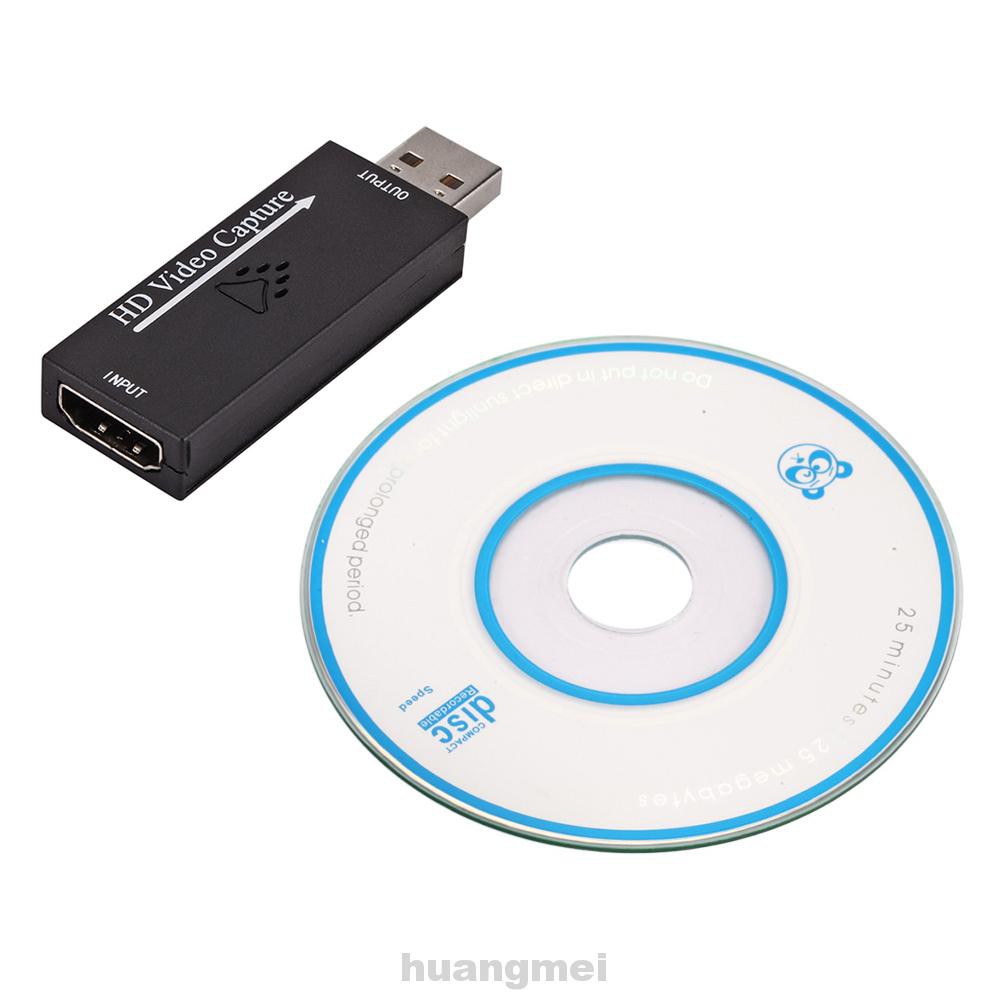

1pc x Video Capture Card
1pc x CD
Notice:
Due to the light and screen difference, the item's color may be slightly different from the pictures.
Please allow 0.5-2cm differences due to manual measurement.
#Video #Capture #Card #HD #1080P #Live #Stream #HDMI #To #USB #2.0 #Adapter #Teaching #Portable #Recorder #Broadcast #Gaming
