Set 3 Động Cơ Bước Nema 17 Kèm Cáp Nối 1m 4-pin
0 Đánh Giá
Đã Bán 0
119
778.000 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
chủ nhật 23/05/2021 lúc 04:31 CH
MÔ TẢ SẢN PHẨM

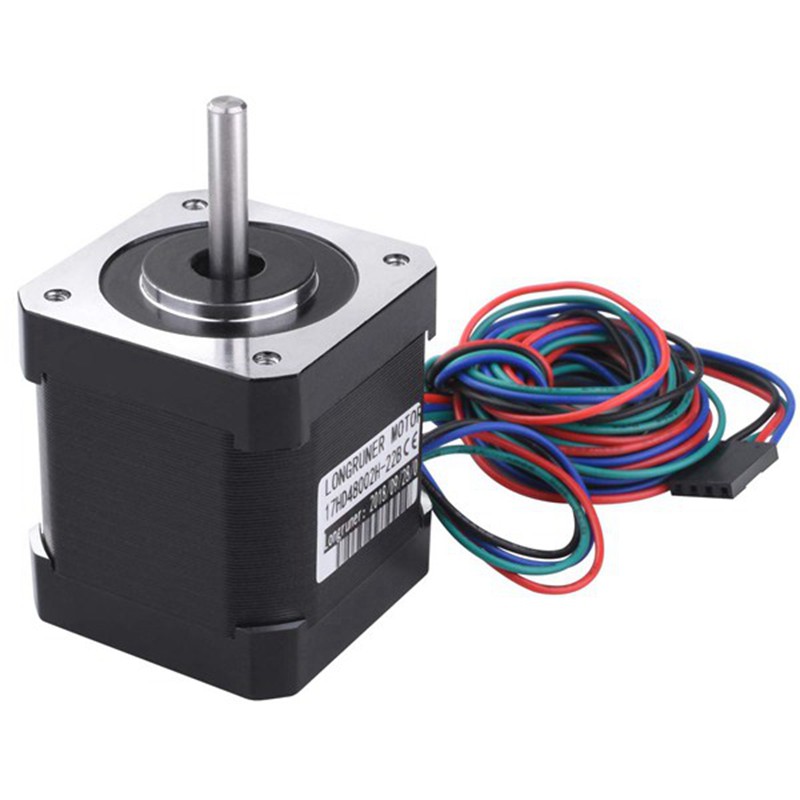

NEMA-17 Stepper Motor 84 oz.in (59 Ncm) 47mm Body 1.8 degree with 1M 4-pin Cable and Mounting Bracket Kit DIY 3D Printer CNC Robot.
1m wire, one connect electrical machine, on the other end has variety optional ports; heat shrink tubing effect to prevent the wire tangled up.

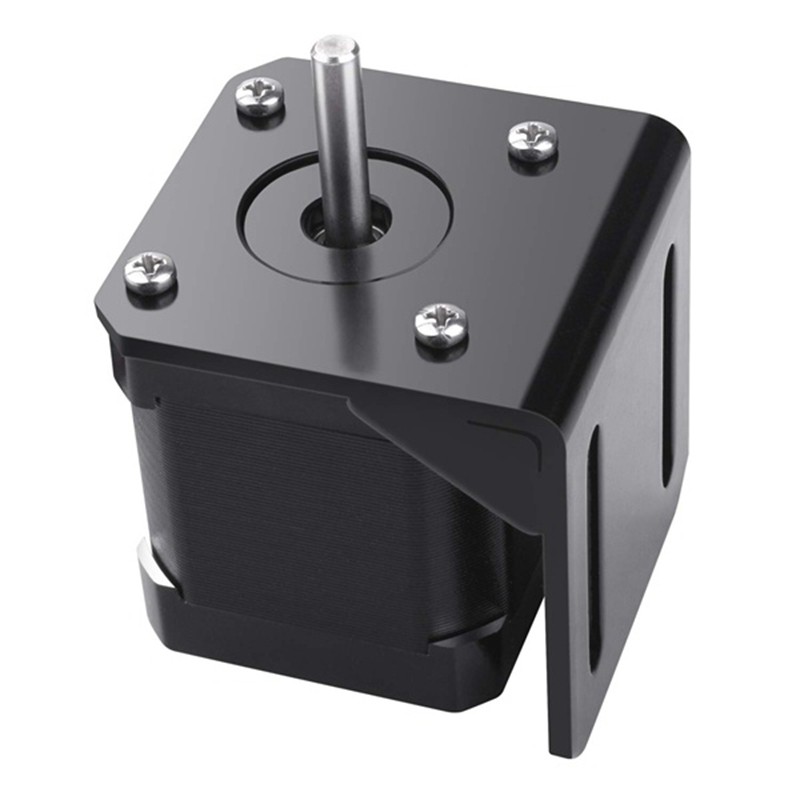

90 Degree Mounting Bracket with M3 screws.
4-wire 1M Lead w/ Insulated Sleeve - Detachable for easy installation.

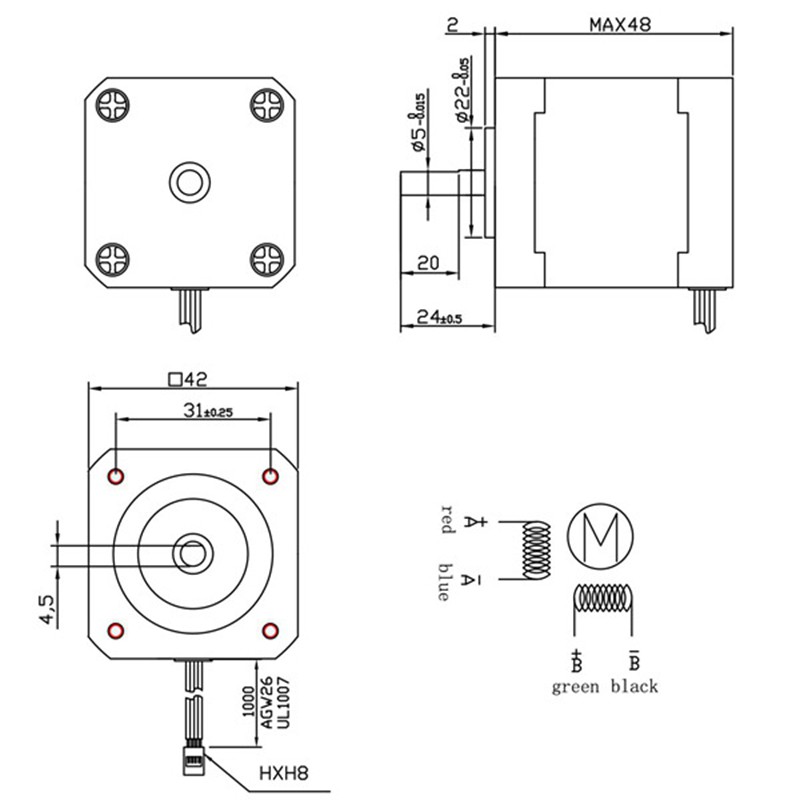

Stepper motor Specification:
Rated Current/phase: 1.7A
Frame Size: 41 x 41mm
Body Length: 47mm
Shaft Diameter: 5mm
Shaft Length: 22mm

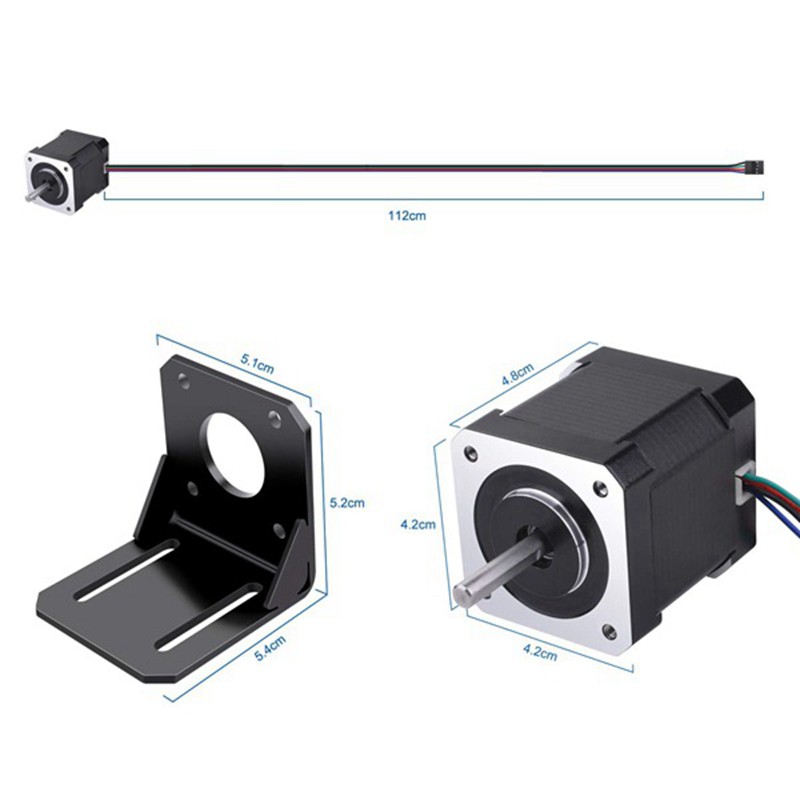

Mounting Bracket Kit Specification:
Three Pack - NEMA 17 Mounting Bracket - 90 degrees
M3 Screws Included (12)
Mounting Holes: 31mm center-to-center
Max Collar Diameter: 22mm
Powder-coated steel
Nema17 Standard
Mounting Holes: 31mm center-to-center
Max Collar Diameter: 22mm
Colour:black
Material:metal
Package Contents:
3 * Nema 17 stepper motor with 1m Cable & Connector
3 * Nema 17 Stepper Motor Mounting Bracket
12 * M3 Screws
Warning:
Make sure the motor connect to a constant current or chopper drive controller before you test motor.
Connecting the motor directly to a power supply will destroy the motor.Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
