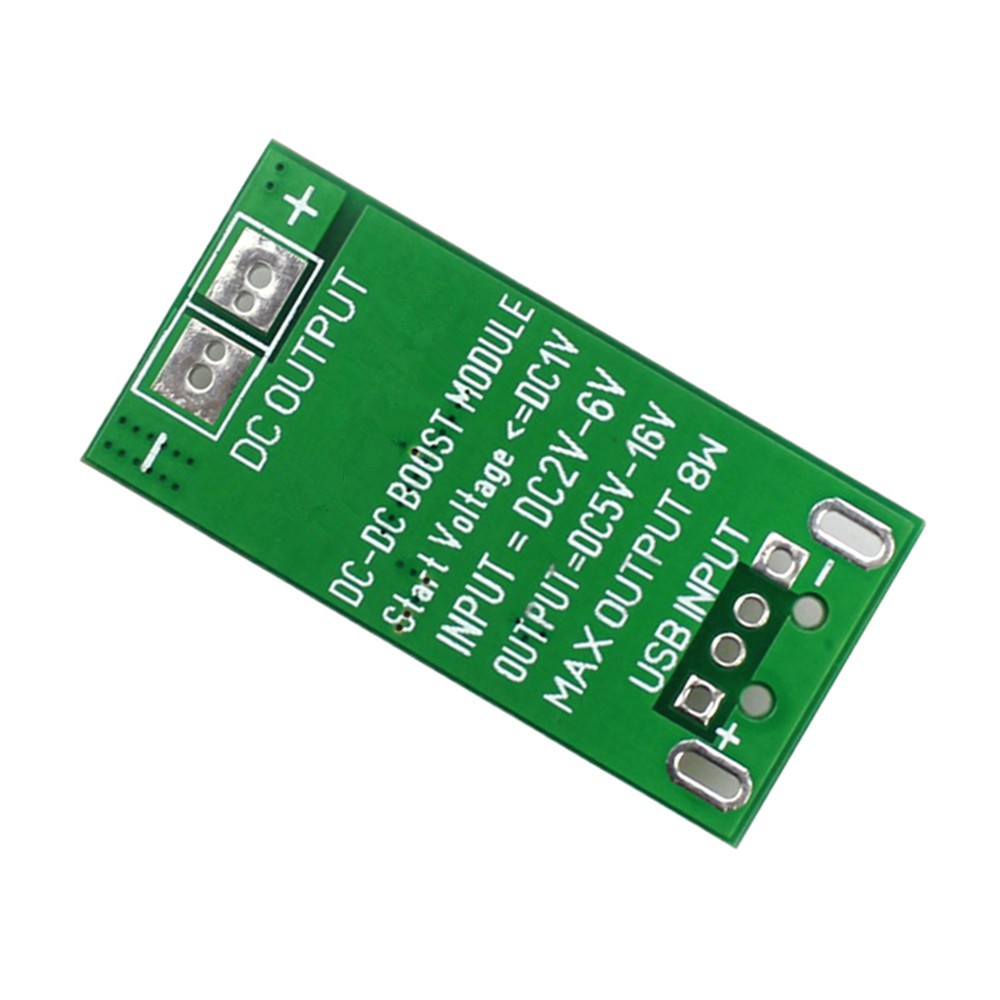

Mô Đun Tăng Áp 8w Usb Đầu Vào Dc-dc 5v Sang 12v
3 Đánh Giá
Đã Bán 8
124
23.000 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
thứ bảy 29/05/2021 lúc 03:52 CH
MÔ TẢ SẢN PHẨM
8W USB Input DC-DC 5V to 12V Converter Step Up Module Power Supply Boost Module
The starting voltage of the module is 1.2V, the working voltage is 2V-6.5V, the input can't exceed 6.5V, otherwise it is easy to breakdown, and the reverse short circuit is prohibited!
The output power is 8-9W, and it is easy to overheat. The input current is less than 2A, and the peak value is 2.5A. When it is used for a long time, IN<2A current!
Input 1.5V at no load: 2-3.5mA current without LED, 10-15mA with LED (12V output test)
When inputting 1.5V, it can output 12V voltage, the current is about 10-15mA, if the output 9V current is about 20-30mA
========== Note: The output voltage is not recommended to exceed 10 times the input, easy to output out of control! =========
The following are general test data: (for reference only)
If it is 1.5V liter 12V or 9V, it is recommended to order a non-LED version in batches to reduce the no-load power! Will also reduce costs
Input DC2V boost to 12V output current is about 100mA, input DC3V boost to 12V output current about 200mA
Input DC4.2V boost to 12V output current is about 450mA, input DC 5V boost to 12V output current about 500mA-600mA
Input DC6V rises 12V, input current 2A output 12V 700-800mA, need to pay attention to air temperature! To avoid overheating damage
If you boost to 9V, you can convert it yourself, which is a little higher than the power of 12V, and the efficiency is also high!
For example, when the 3.7V is 12V, the output current is about 400mA, and the peak value is 500mA. If the output is 9V, it is about 500mA, and the peak value is 650mA.
The starting voltage of the module is 1.2V, the working voltage is 2V-6.5V, the input can't exceed 6.5V, otherwise it is easy to breakdown, and the reverse short circuit is prohibited!
The output power is 8-9W, and it is easy to overheat. The input current is less than 2A, and the peak value is 2.5A. When it is used for a long time, IN<2A current!
Input 1.5V at no load: 2-3.5mA current without LED, 10-15mA with LED (12V output test)
When inputting 1.5V, it can output 12V voltage, the current is about 10-15mA, if the output 9V current is about 20-30mA
========== Note: The output voltage is not recommended to exceed 10 times the input, easy to output out of control! =========
The following are general test data: (for reference only)
If it is 1.5V liter 12V or 9V, it is recommended to order a non-LED version in batches to reduce the no-load power! Will also reduce costs
Input DC2V boost to 12V output current is about 100mA, input DC3V boost to 12V output current about 200mA
Input DC4.2V boost to 12V output current is about 450mA, input DC 5V boost to 12V output current about 500mA-600mA
Input DC6V rises 12V, input current 2A output 12V 700-800mA, need to pay attention to air temperature! To avoid overheating damage
If you boost to 9V, you can convert it yourself, which is a little higher than the power of 12V, and the efficiency is also high!
For example, when the 3.7V is 12V, the output current is about 400mA, and the peak value is 500mA. If the output is 9V, it is about 500mA, and the peak value is 650mA.
