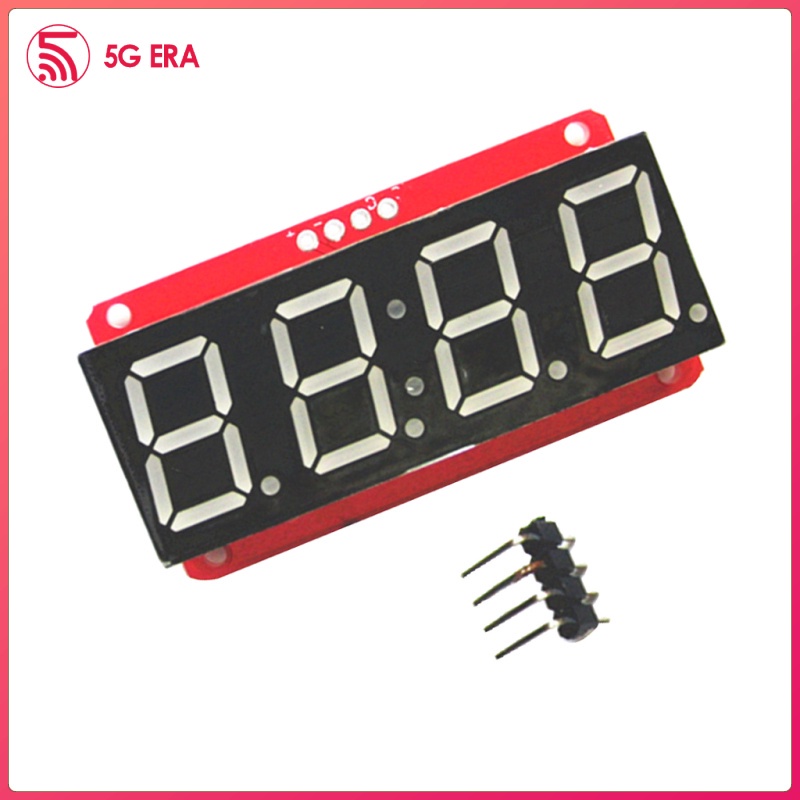

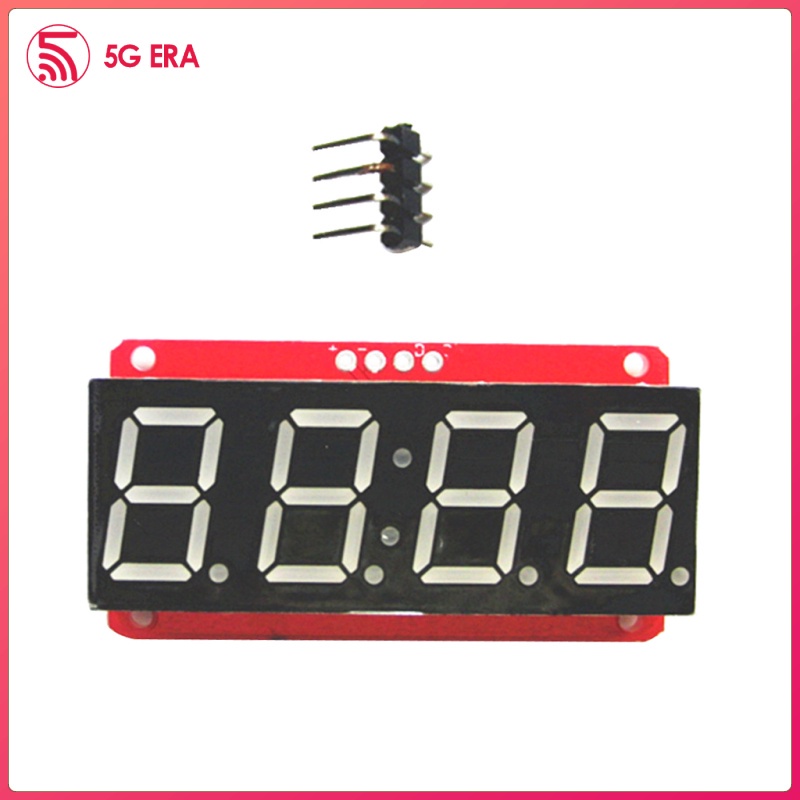

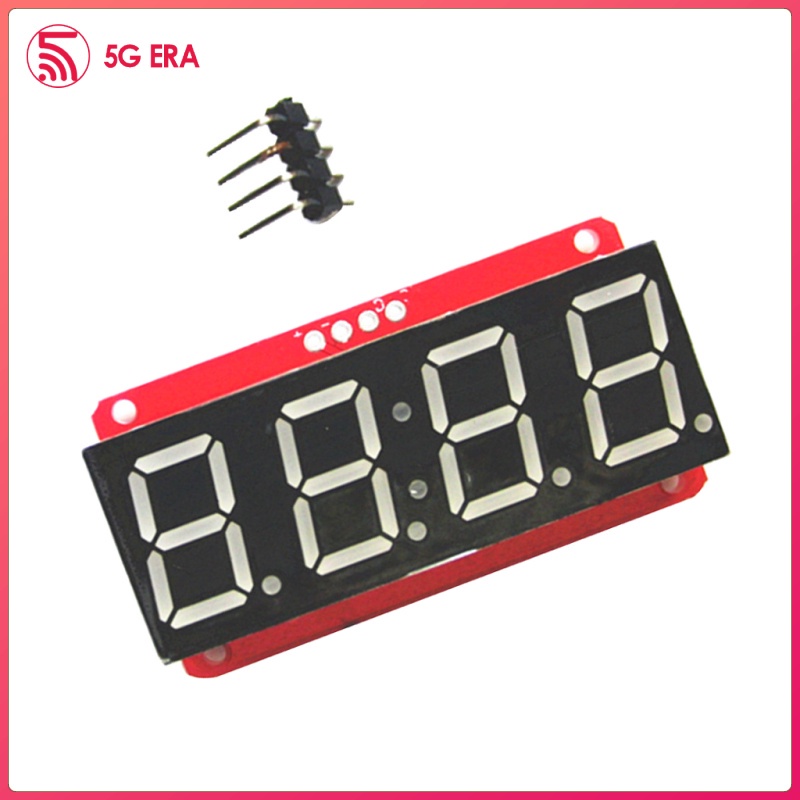

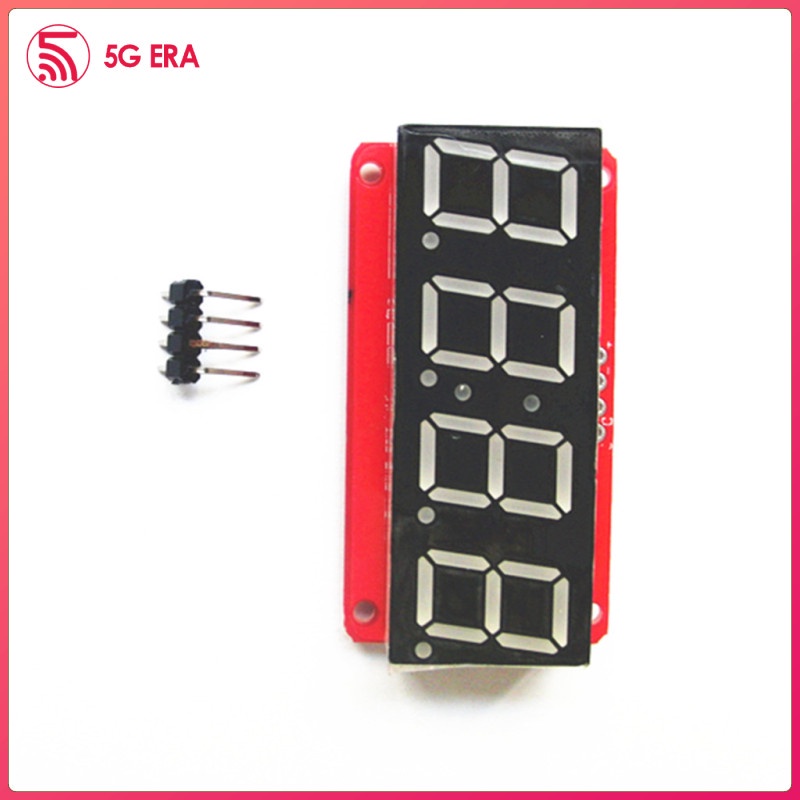

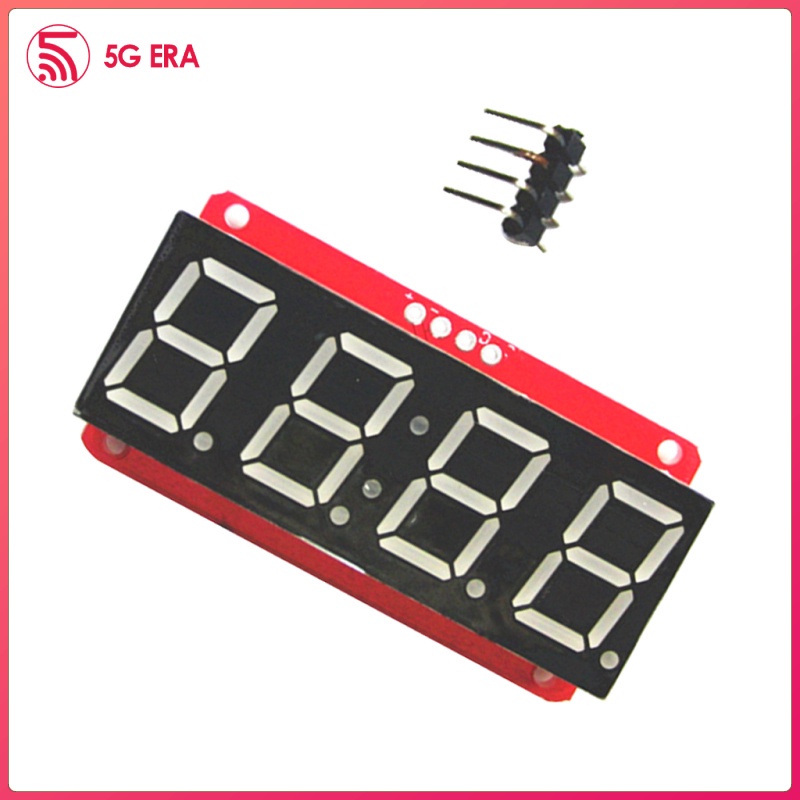

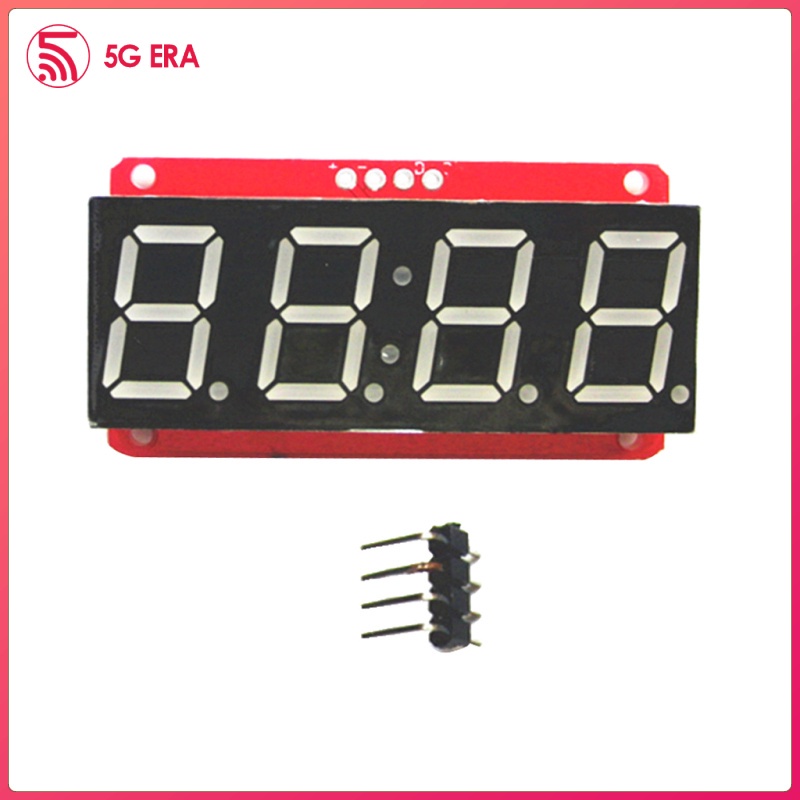

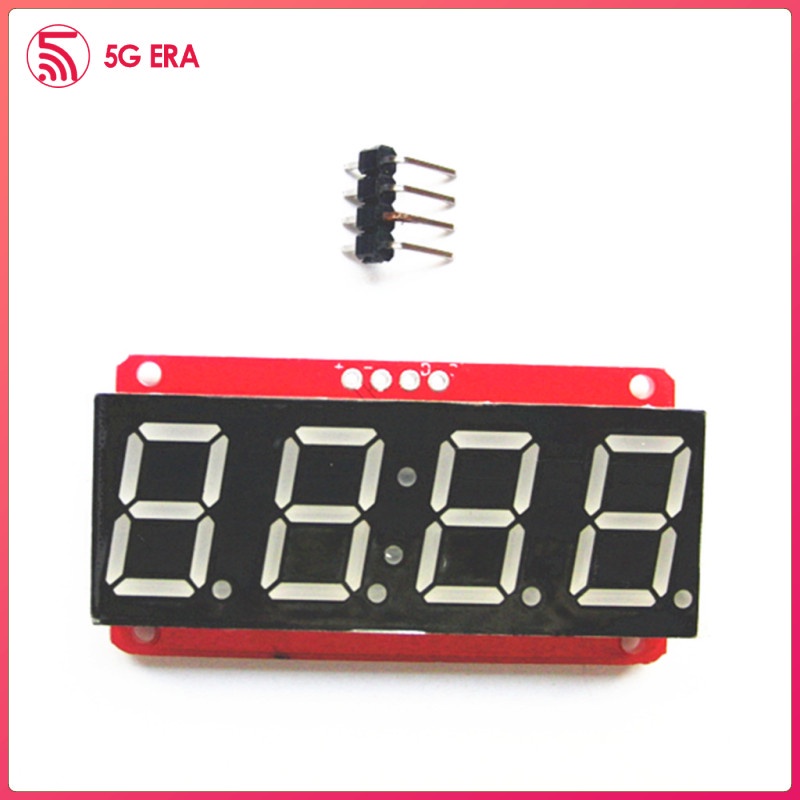

Mô Đun Hiển Thị Led 4 Chữ Số 7 Phần 0.56 "
0 Đánh Giá
0 Đã Bán
18
50.000 đ
Xem sản phẩm trên ShopeeQuốc tế
thứ ba 10/08/2021 lúc 07:32 SA
Description:
These 7-segment displays normally require 13 pins (5 characters and 8 total segments each).

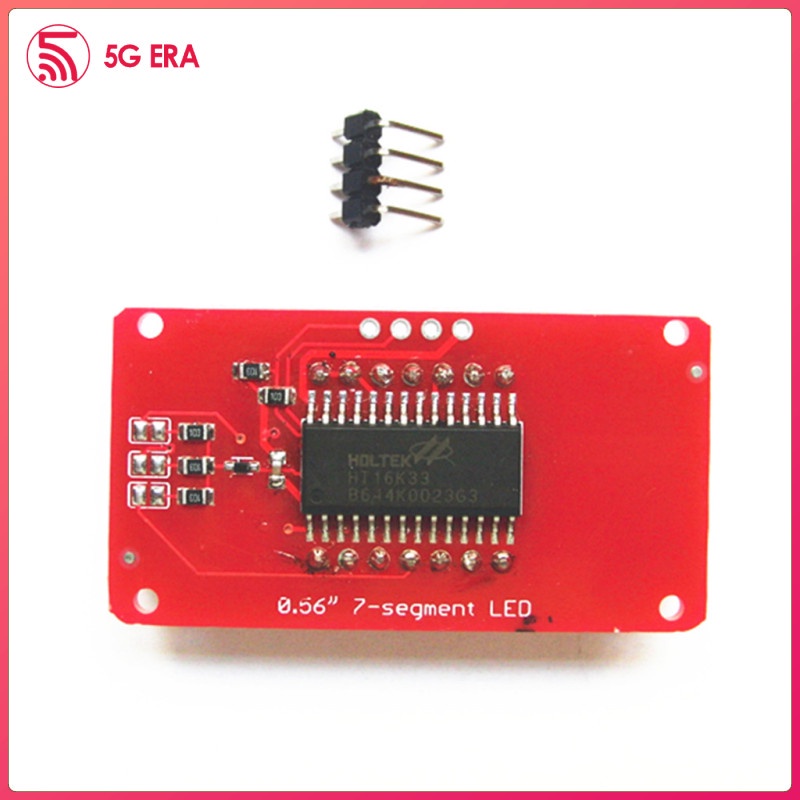

Solves the annoyance of using 13 pins or a bunch of chips by having an I2C constant-current matrix controller sit neatly on the back of the PCB.
The controller chip takes care of everything, drawing all the LEDs in the background.
All you have to do is write data to it using the 2-pin I2C interface.
There are three address select pins so you can select of 8 addresses to control up to 8 of these on a single 2-pin I2C bus (as well as whatever other I2C chips or sensors you like).
The driver chip can the entire display from 1/16 brightness up to full brightness in 1/16th steps.
It can't individual LEDs, only the entire display at once.
Specification:
Size: Approx. 5.03 x 2.68 x 1.2 cm/2 x 1.1 x 0.5 inch
Package Includes:
1 Piece 0.56" 4 Digit LED Display Module
Note:
Color might be slightly different due to the color calibration of each individual monitor.
Please allow slightly measuring deviation due to manual measurement.
