Mô Đun Hạ Áp Ac Dc 5v 700 Ma 3.5w
2 Đánh Giá
Đã Bán 69
140
18.600 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
thứ bảy 26/12/2020 lúc 09:18 CH
MÔ TẢ SẢN PHẨM
5v 700ma high performance version optimization design, suitable for control board, single chip board power supply system is very stable and reliable
工作温度:-20度至70度,高级款绿金电容耐温105度1万小时,70度时大于5年,常温时约20-50年(不建议高于70度以上使用),输出滤波高品质固态电容
Input characteristics:

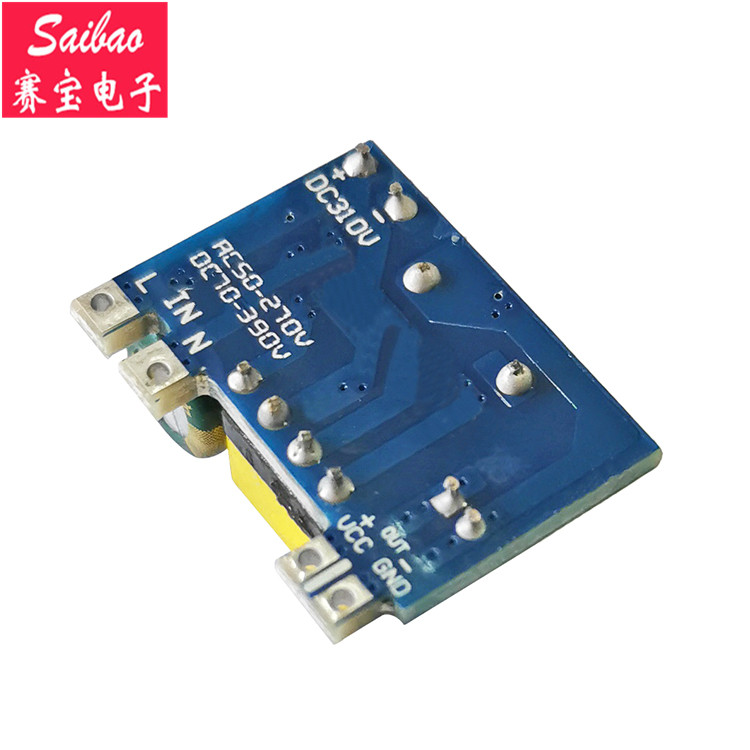

Input voltage range: ac50v - 277v dc70v - 390v
Load power: 0.05 w full load power: 4w
Output characteristics: multiple voltage modules can be used in parallel to meet the requirements of large currents in small space.
Output current: 5v 0ma - 700ma, full load into constant current mode
Test resistance: 7 eu for 5v (4.9v)
Output indicator: green light
Output power: 3.5 w efficiency about 80%
Output protection: overpressure, overcurrent, overheat, over - work, short circuit protection, etc.

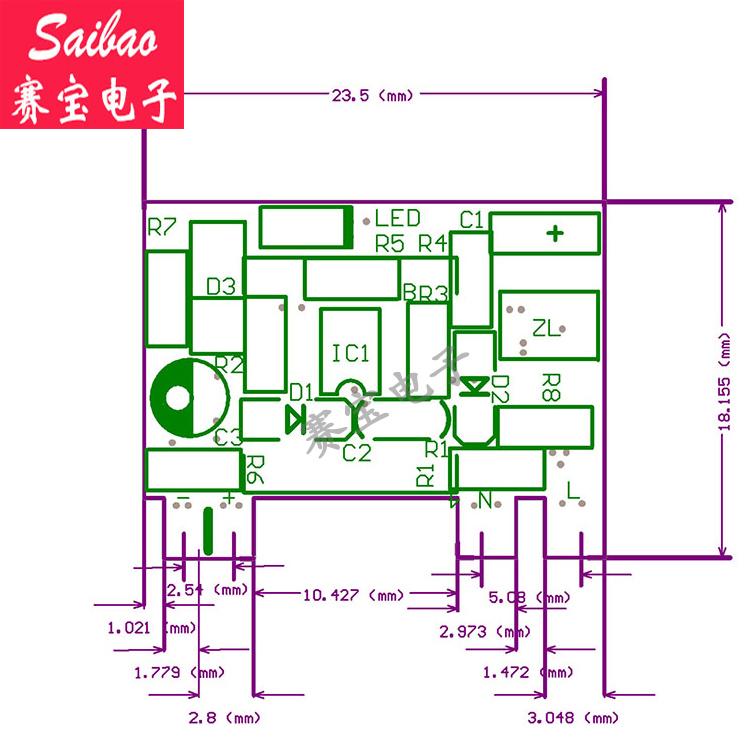

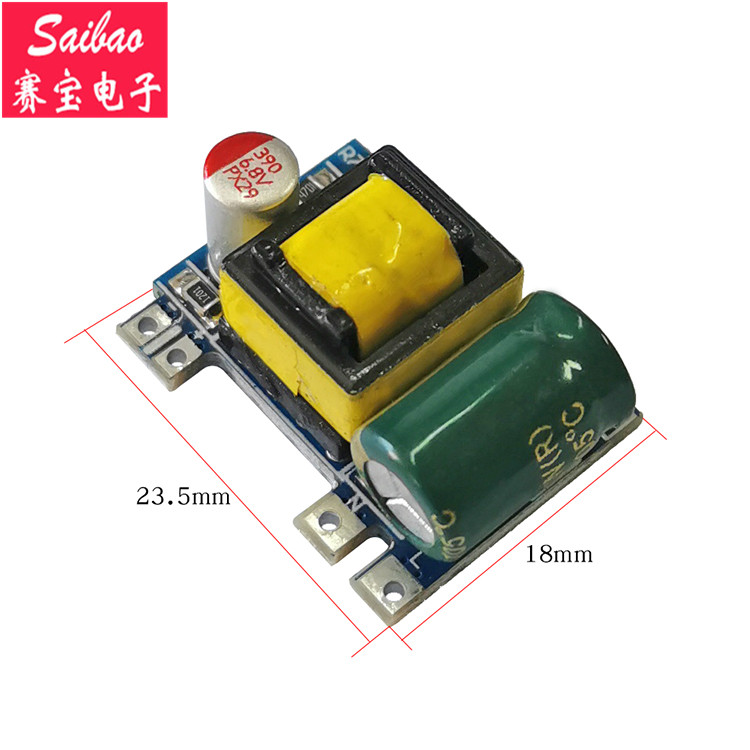

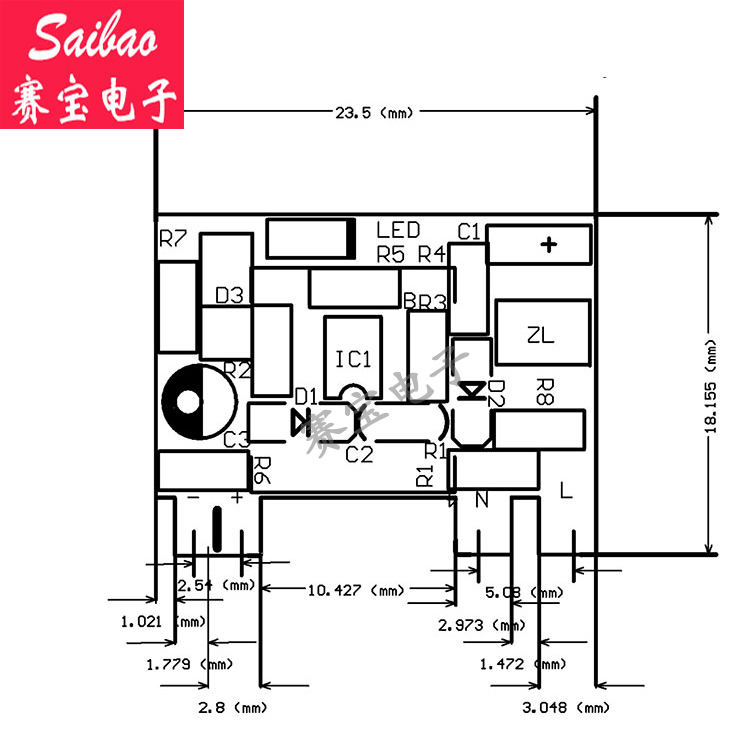

Size: 23.5x18 x 13mm
工作温度:-20度至70度,高级款绿金电容耐温105度1万小时,70度时大于5年,常温时约20-50年(不建议高于70度以上使用),输出滤波高品质固态电容
Input characteristics:
Input voltage range: ac50v - 277v dc70v - 390v
Load power: 0.05 w full load power: 4w
Output characteristics: multiple voltage modules can be used in parallel to meet the requirements of large currents in small space.
Output current: 5v 0ma - 700ma, full load into constant current mode
Test resistance: 7 eu for 5v (4.9v)
Output indicator: green light
Output power: 3.5 w efficiency about 80%
Output protection: overpressure, overcurrent, overheat, over - work, short circuit protection, etc.
Size: 23.5x18 x 13mm
