MÔ TẢ SẢN PHẨM
Estimated delivery time for this product is 7-9 days

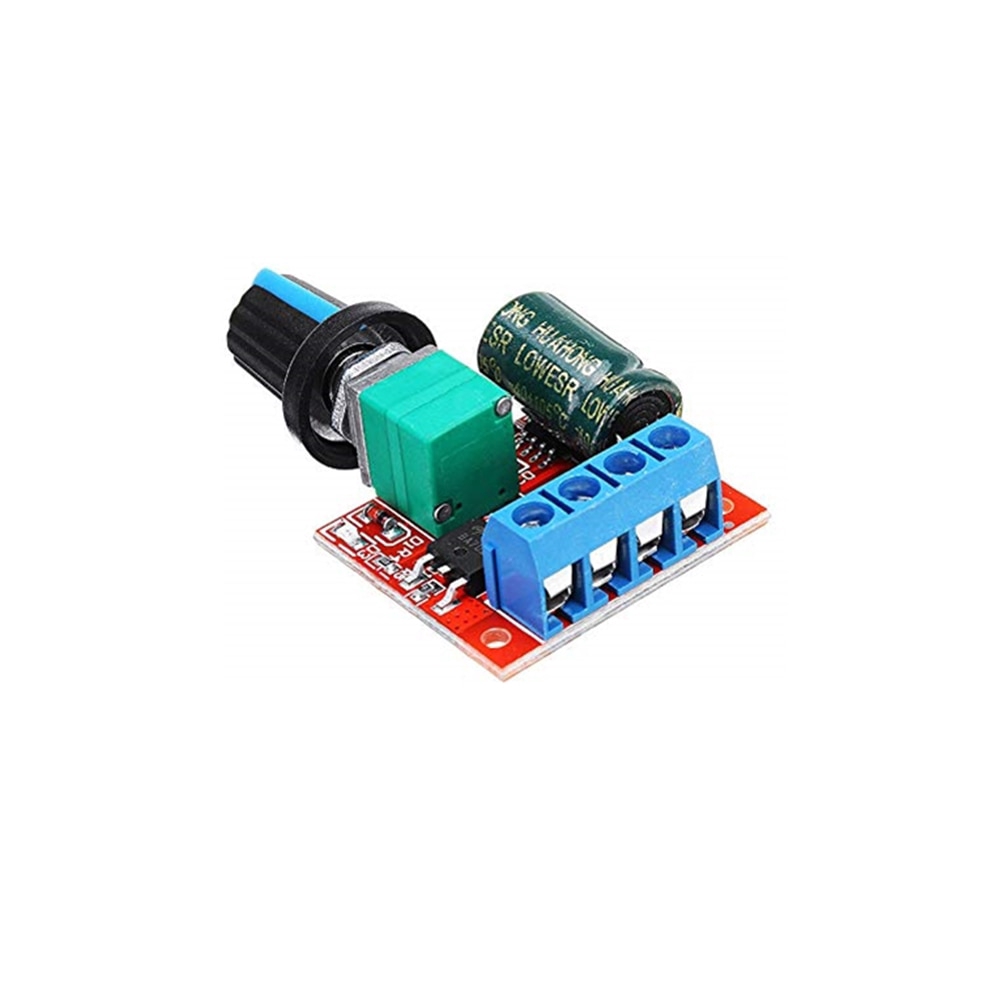

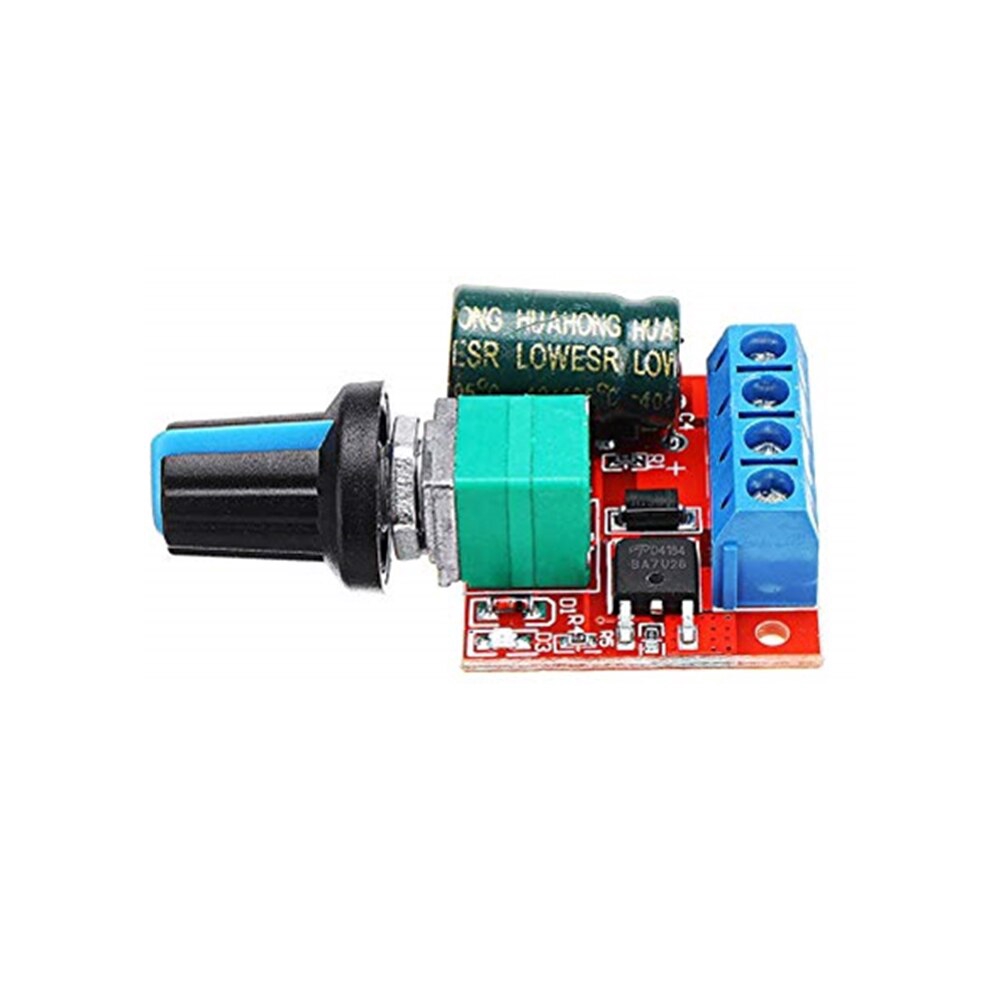

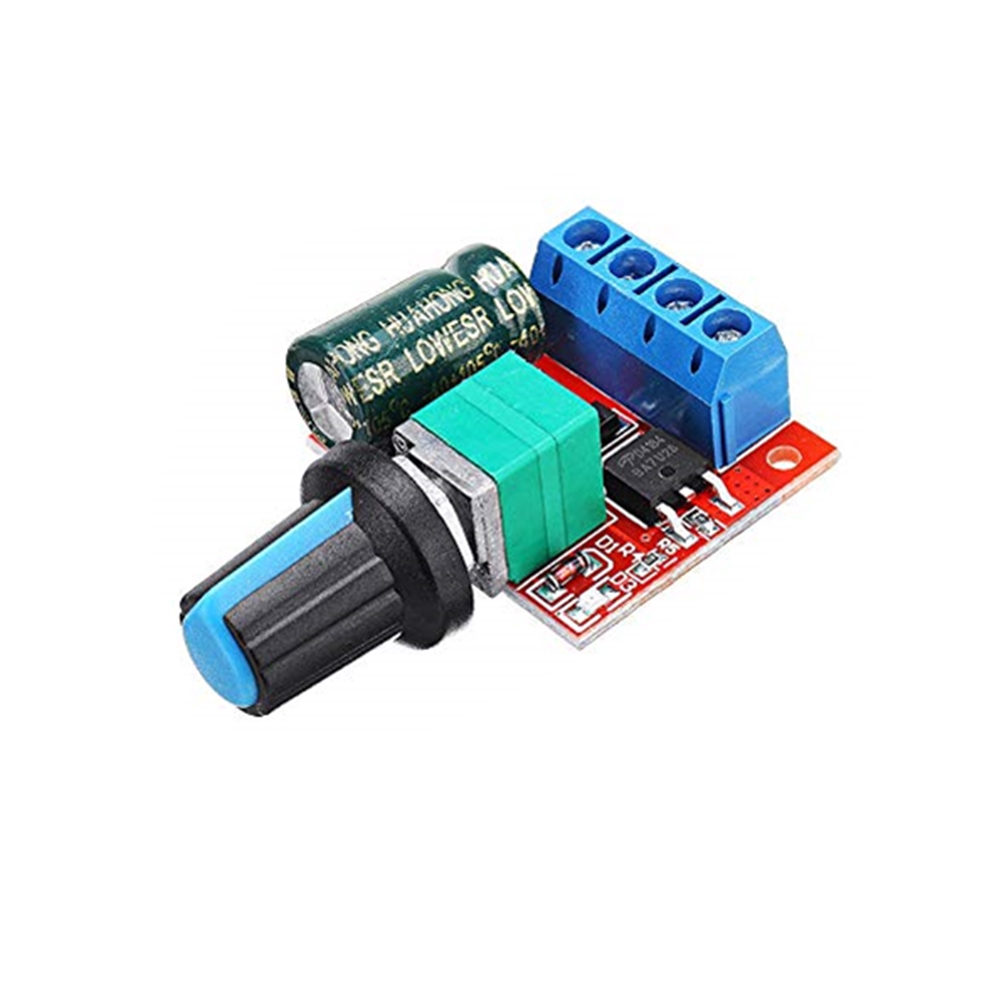

5A 90W PWM DC-DC Mini Motor Speed Control Module 4.5V-35V With 12V / 24V Adjustable Control Switch
Products details:
Operating voltage: DC4.5V-35V
Output current: 0-5A
Output power: 90W (maximum)
Static current: 7uA (standby)
PWM cycle: 1% -100%
PWM frequency: 20khz
Dimensions: 30mm x 26mm x 14mm (without handle)
Noteworthy:
The input of the DC motor controller is DC, can not be directly connected to AC (example: AC 220v at home), otherwise it will burn!
The DC power supply and cathode are not reversed, otherwise the regulator may be damaged.
Engines can be positive or negative, when the driving direction and expectations do not match, you can adjust the line order to change direction.
Adjust the knob to change the governor's output duty cycle, change engine speed.
Before buying:
1. All goods are available, we will arrange shipment immediately if we get your order.
2. Please read product description, if you have any questions, don't hesitate to contact us.
After purchase:
1. If you are satisfied, please rate the item 5 stars.
2. Please contact us first before you intend to comment negatively. We will solve the problems. If you receive a defective product, please contact us and provide photos as well as video.
#Mini # 5A # 90W #PWM #DC #Motor #Speed #Controller #Module # DC-DC # 4.5V # 35V #Adjustable #Control #Switch # 12V # 24V
