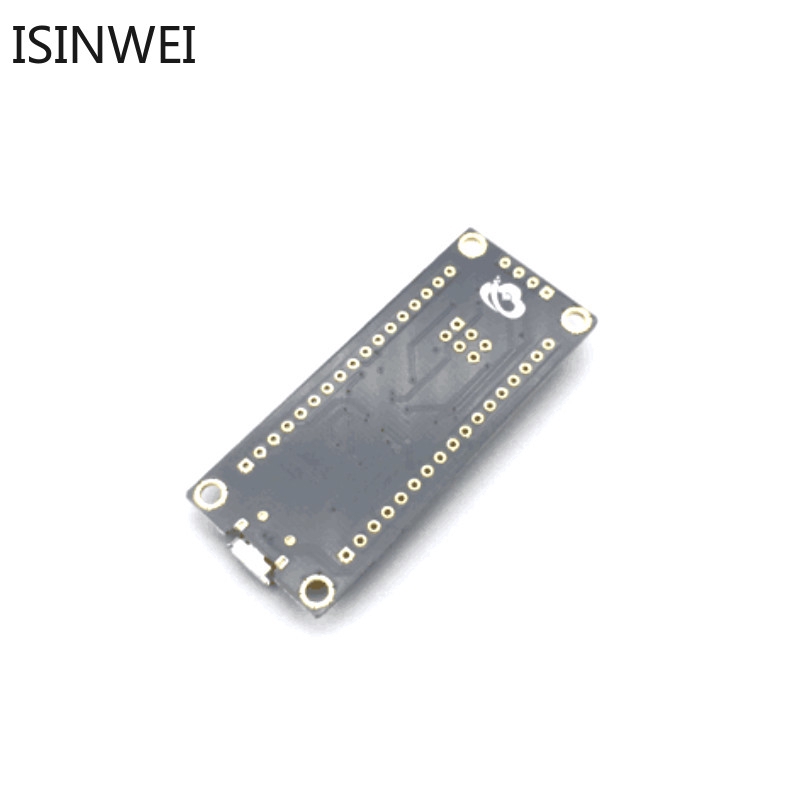

Mô đun điều khiển Micro USB cho bảng mạch cảm biến hệ thống tối thiểu STM32F103C8T6 ARM STM32
1 Đánh Giá
Đã Bán 1
153
98.147₫
Mua ngay trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
Cập nhật: thứ năm 24/09/2026 lúc 04:48 SA
LỊCH SỬ GIÁ SẢN PHẨM
Đang tải lịch sử giá...
SO SÁNH GIÁ
MÔ TẢ SẢN PHẨM
Kernel: ARM 32-bit CortexTM-M3 CPU
− up to 72MHz operating frequency
− Single cycle multiplication and hardware division
Memory
− from 64K or 128K bytes of flash program memory
− up to 20K bytes of SRAM
l clock, reset and power management
− 2.0 to 3.6 volt supply and I/O pins
− Power-on/power-off reset (POR/PDR), programmable voltage monitoring
(PVD)
− 4~16MHz crystal oscillator
− Embedded factory-tuned 8MHz RC oscillator
− Embedded 40kHz RC oscillator with calibration
− PLL that generates the CPU clock
− 32kHz RTC oscillator with calibration
Low power consumption
− Sleep, stop and standby modes
− V BAT supplies power to the RTC and the backup register
2 12-bit analog-to-digital converters with 1us conversion time (up to 16)
− Conversion range: 0 to 3.6V
− Double sampling and hold function
− Temperature sensor
DMA:
− 7-channel DMA controller
− Supported peripherals: timer, ADC, SPI, I 2 C and
USART
Up to 80 fast I/O ports
− 26/37/51/80 I/O ports, all I/O ports can be mapped to
16 external interrupts; almost all ports can tolerate 5V letters
number
Debug mode
− Serial single-wire debugging (SWD) and JTAG interface
Up to 7 timers
− 3 16-bit timers with up to 4 timers per timer
Input capture/output compare/PWM or pulse count channels
And incremental encoder input
− 1 16-bit with dead zone control and emergency brake for motor
Controlled PWM Advanced Control Timer
− 2 watchdog timers (independent and window type)
− System time timer: 24-bit self-decreasing counter
Up to 9 communication interfaces
− Up to 2 I 2 C interfaces (supports SMBus/PMBus)
− Up to 3 USART interfaces (supporting ISO7816 interface,
LIN, IrDA interface and modem control)
Up to 2 SPI interfaces (18M bits/sec)
− CAN interface (2.0B active)
− USB 2.0 full speed interface
CRC calculation unit, 96-bit chip unique code
We deal in wholesale and retail
Feel free to contact us
Skype:winniecai11
Whatsapp +86 13725560553
#STM32F103C8T6 #ARM #STM32 #Minimum #System #Development #Board #Module
