Mô Đun Cảm Biến Độ Ẩm Tự Động Xh-M214 Dv 12v 10a
0 Đánh Giá
3 Đã Bán
93
80.860 đ
Xem sản phẩm trên ShopeeQuốc tế
thứ năm 29/04/2021 lúc 09:35 CH

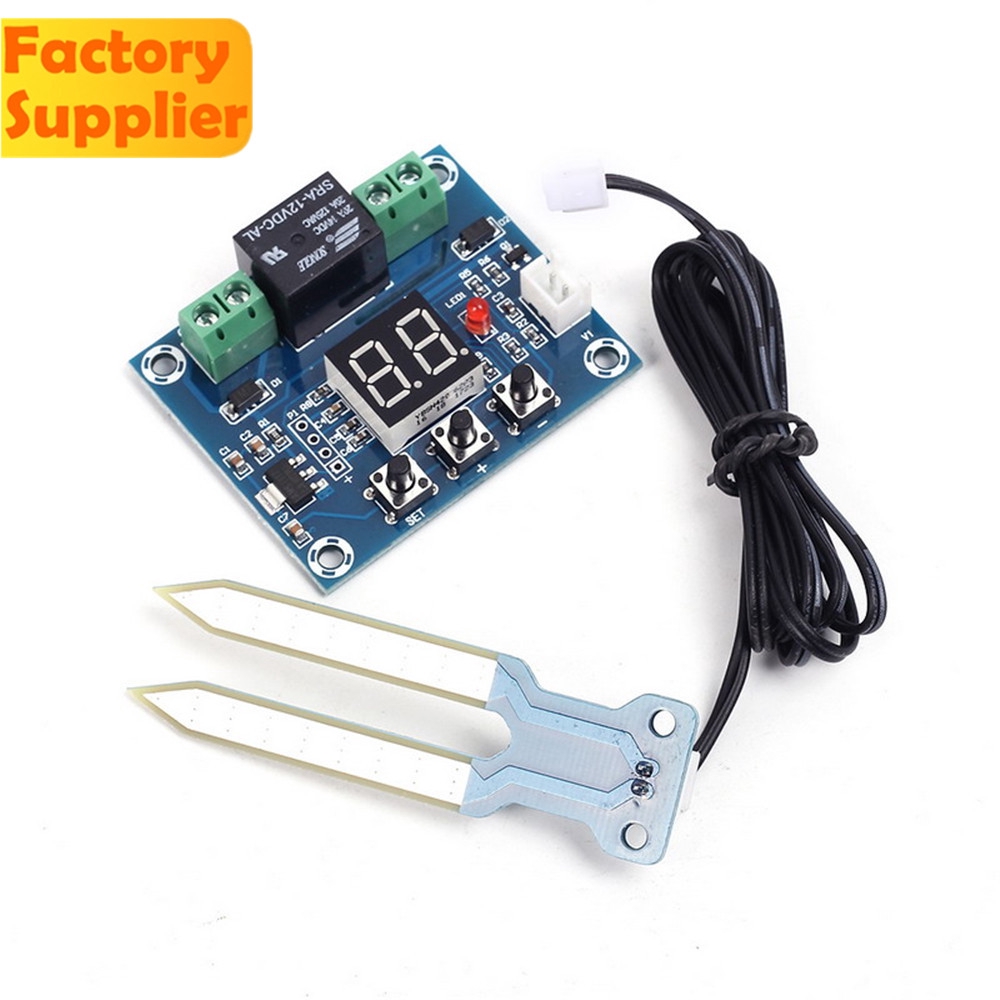

The probe can be inserted directly into the soil. It is a digital display of soil moisture. When the humidity is below the set value starting pump starts watering, when humidity reaches the set value to stop watering. The operation is very simple. It is intelligent humanization.
Parameters:
1.Product name:Soil Moisture Controller Module
2.Model:XH - M214
3.Power supply voltage:DC 12 V
4.Output way:Output switch
5.Humidity range:20-99% RH
6.Control precision:1% RH
7.Control current:10 A
8.Net weight:About 28 g
9.Size:52 * 43 * 16 mm
Using attention:
Please follow the wiring diagram of the description. You can choose the appropriate wiring mode according to the load voltage you use
1. F0 setting start humidity(the humidity of the solenoid valve or the pump start working)
Press the “SET” button to display “F0” and press the “SET” button to display the start humidity, and press +/ button to “SET” the humidity value
2. F1 setting stop humidity (the humidity of the solenoid valve or the pump stops working)
Press +/- button to switch to “F1”, press the “SET” button to display the stop humidity value, and press +/ button to SET the humidity value
3. F2 humidity correction
Normal use without correction error.The correction of values in the use of multiple modules at the same time is conducive to a unified management operation.
Package included:
1 x XH-M214 Humidity Controller Soil Sensor Module
#DIYMORE #XH-M214 #Humidity #Controller #Soil #Sensor #Module #Board #DV #12V #10A #Automatic #Control #Irrigation #Red #Digital #Display
Parameters:
1.Product name:Soil Moisture Controller Module
2.Model:XH - M214
3.Power supply voltage:DC 12 V
4.Output way:Output switch
5.Humidity range:20-99% RH
6.Control precision:1% RH
7.Control current:10 A
8.Net weight:About 28 g
9.Size:52 * 43 * 16 mm
Using attention:
Please follow the wiring diagram of the description. You can choose the appropriate wiring mode according to the load voltage you use
1. F0 setting start humidity(the humidity of the solenoid valve or the pump start working)
Press the “SET” button to display “F0” and press the “SET” button to display the start humidity, and press +/ button to “SET” the humidity value
2. F1 setting stop humidity (the humidity of the solenoid valve or the pump stops working)
Press +/- button to switch to “F1”, press the “SET” button to display the stop humidity value, and press +/ button to SET the humidity value
3. F2 humidity correction
Normal use without correction error.The correction of values in the use of multiple modules at the same time is conducive to a unified management operation.
Package included:
1 x XH-M214 Humidity Controller Soil Sensor Module
#DIYMORE #XH-M214 #Humidity #Controller #Soil #Sensor #Module #Board #DV #12V #10A #Automatic #Control #Irrigation #Red #Digital #Display
