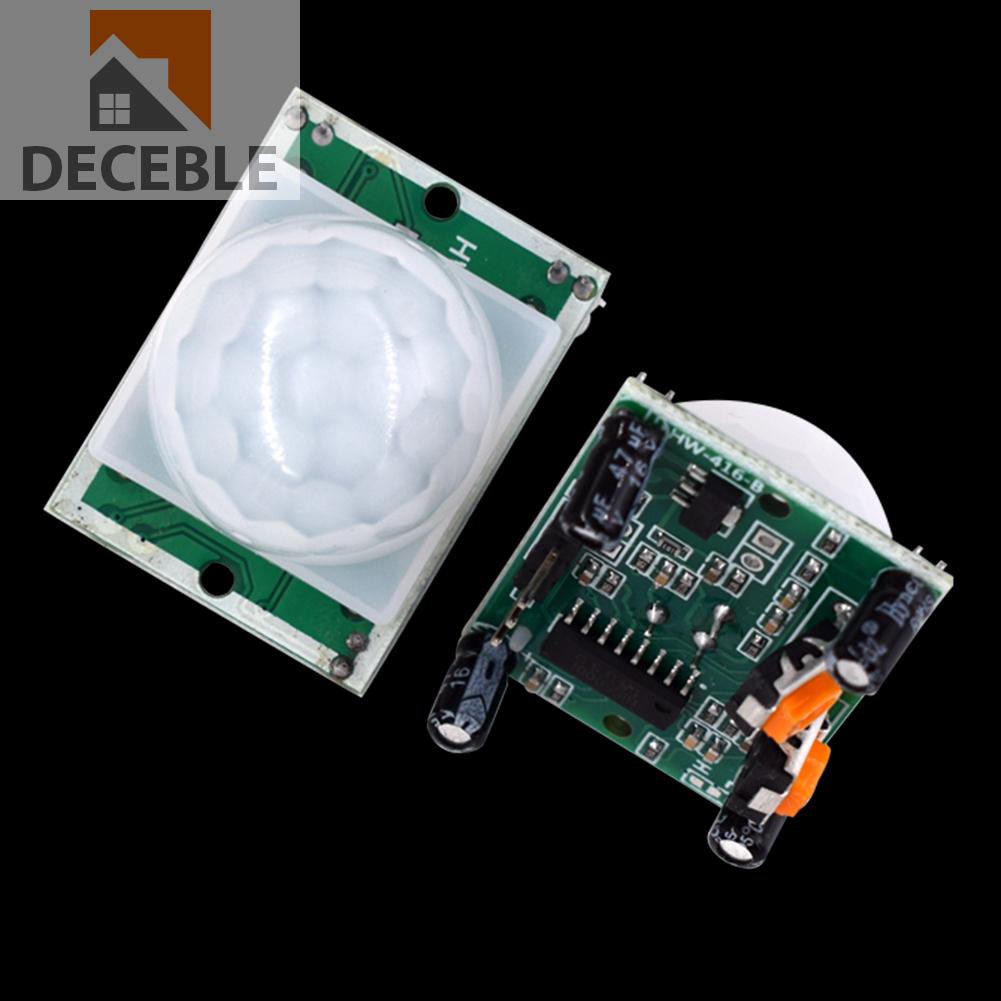

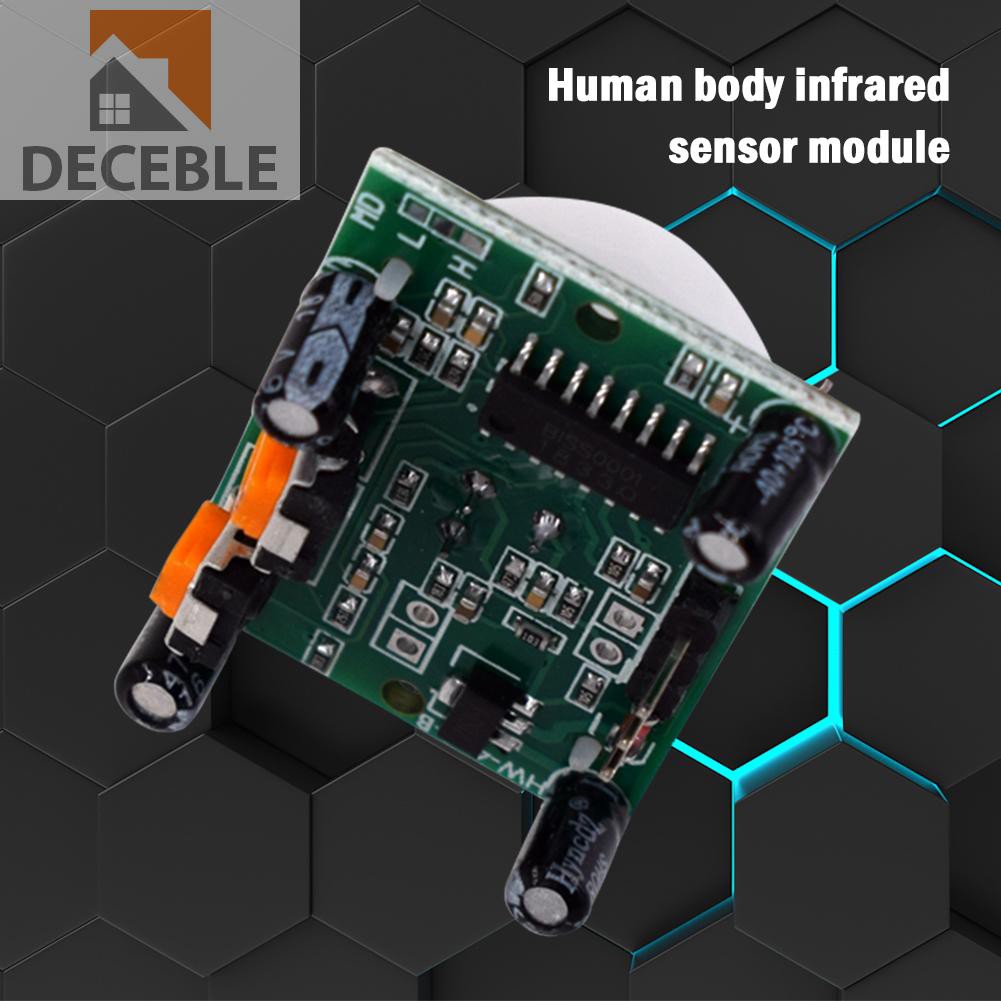

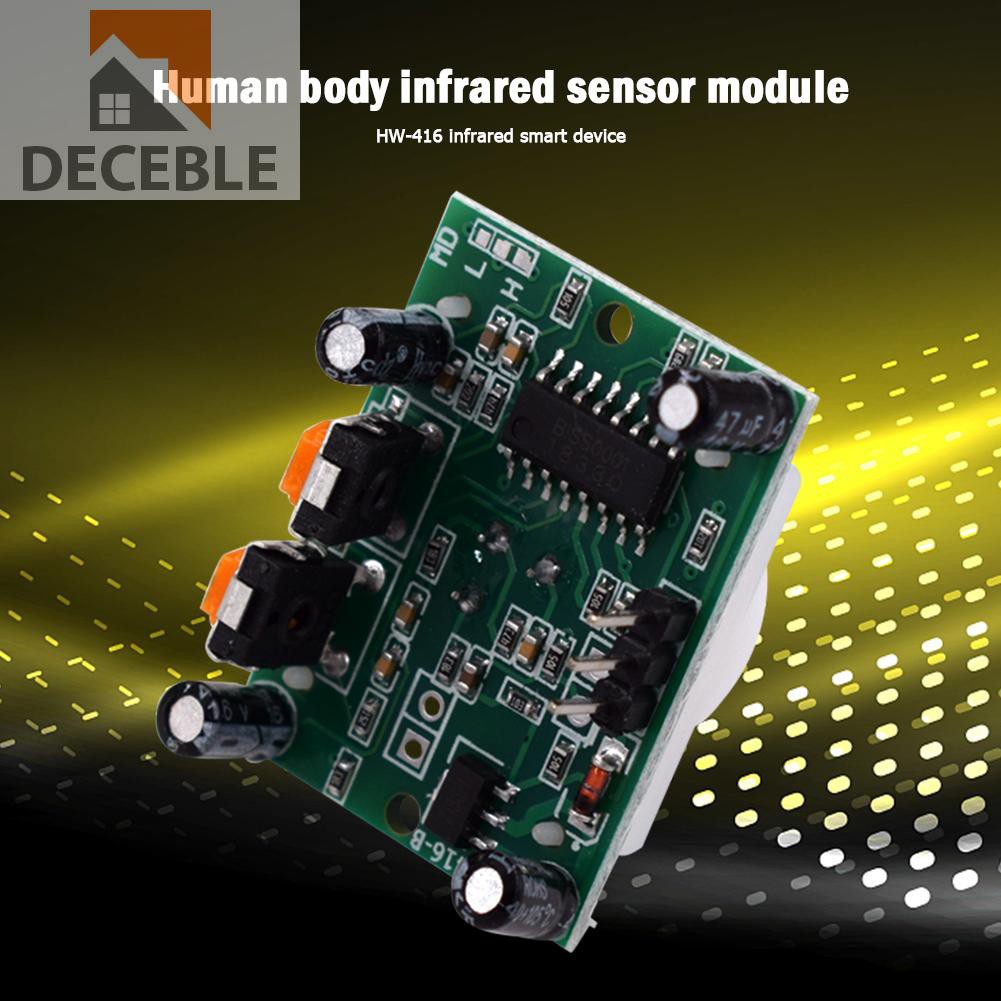

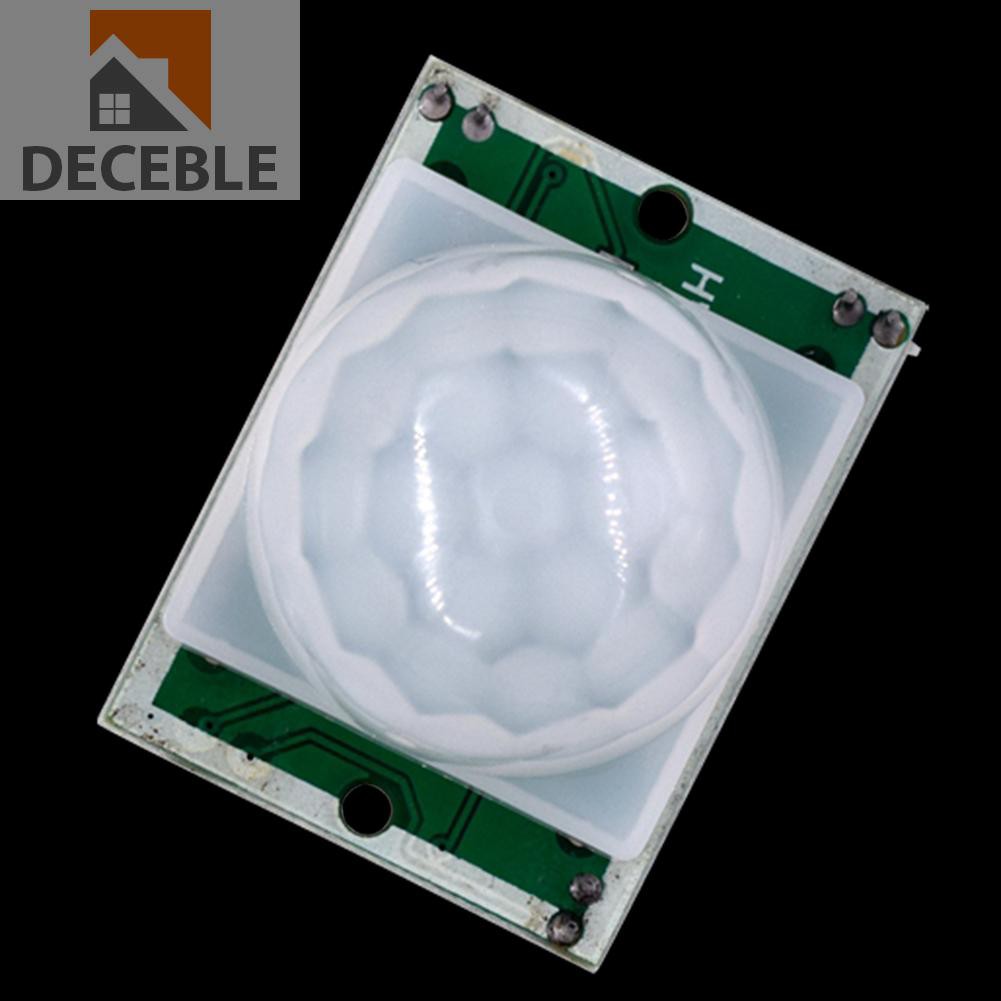

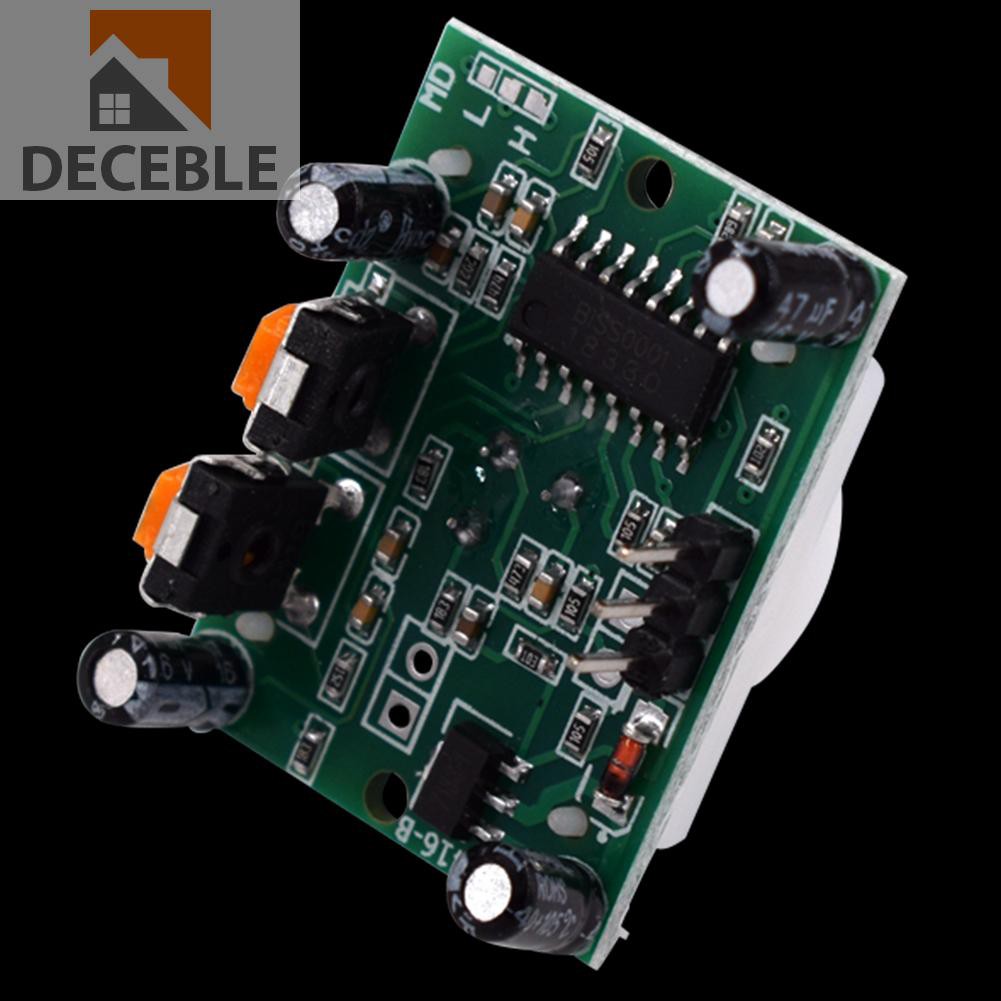

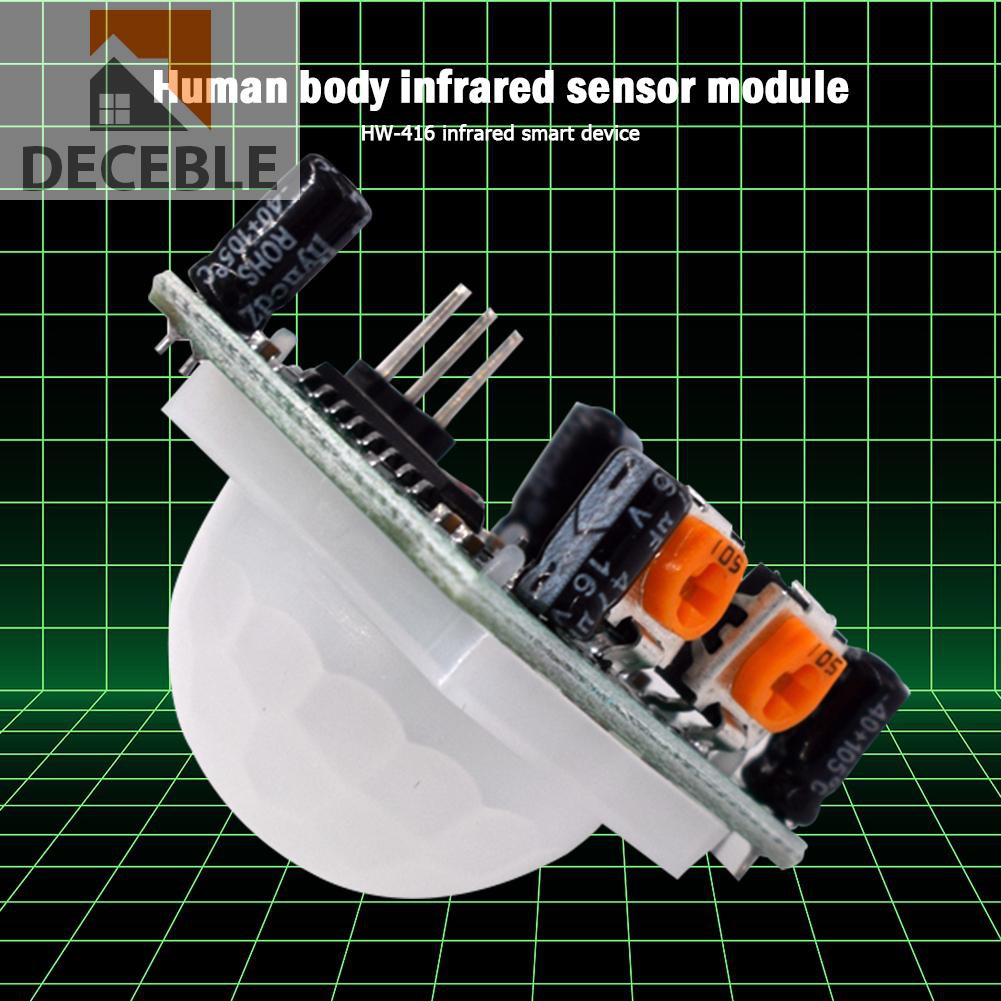

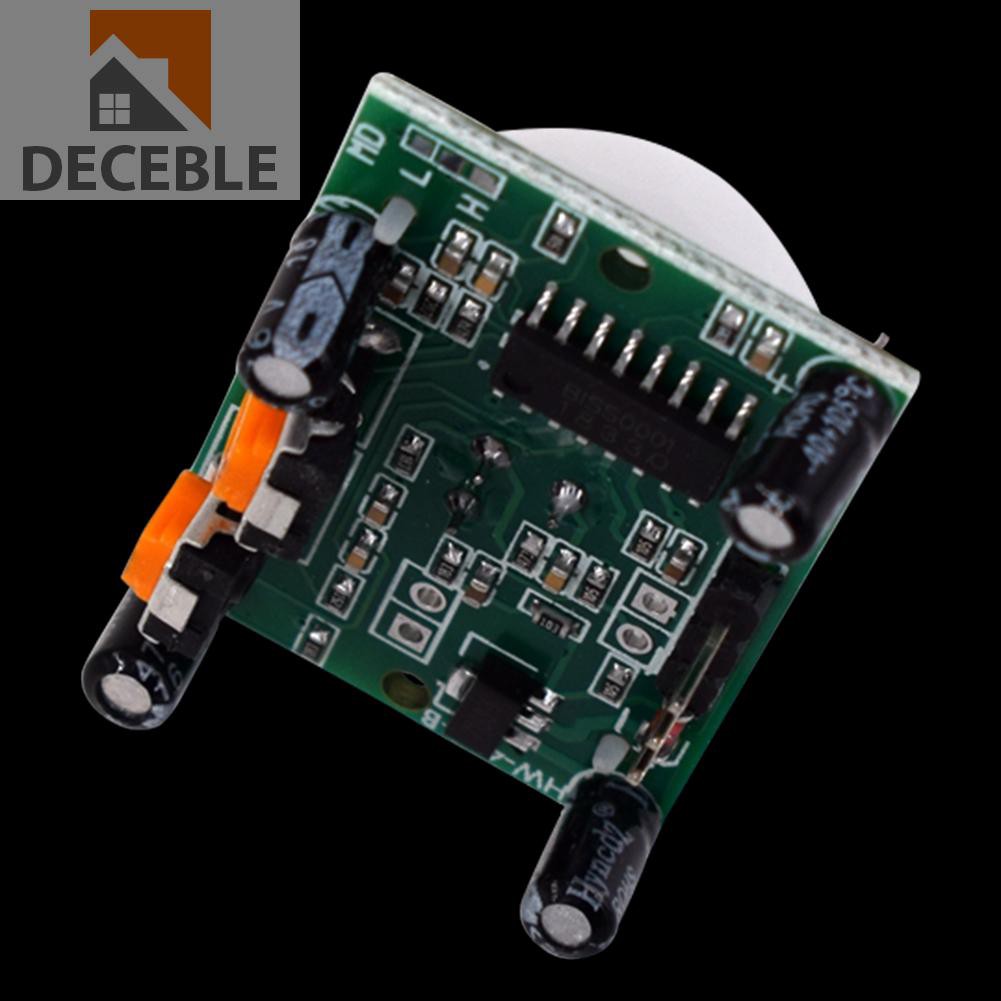

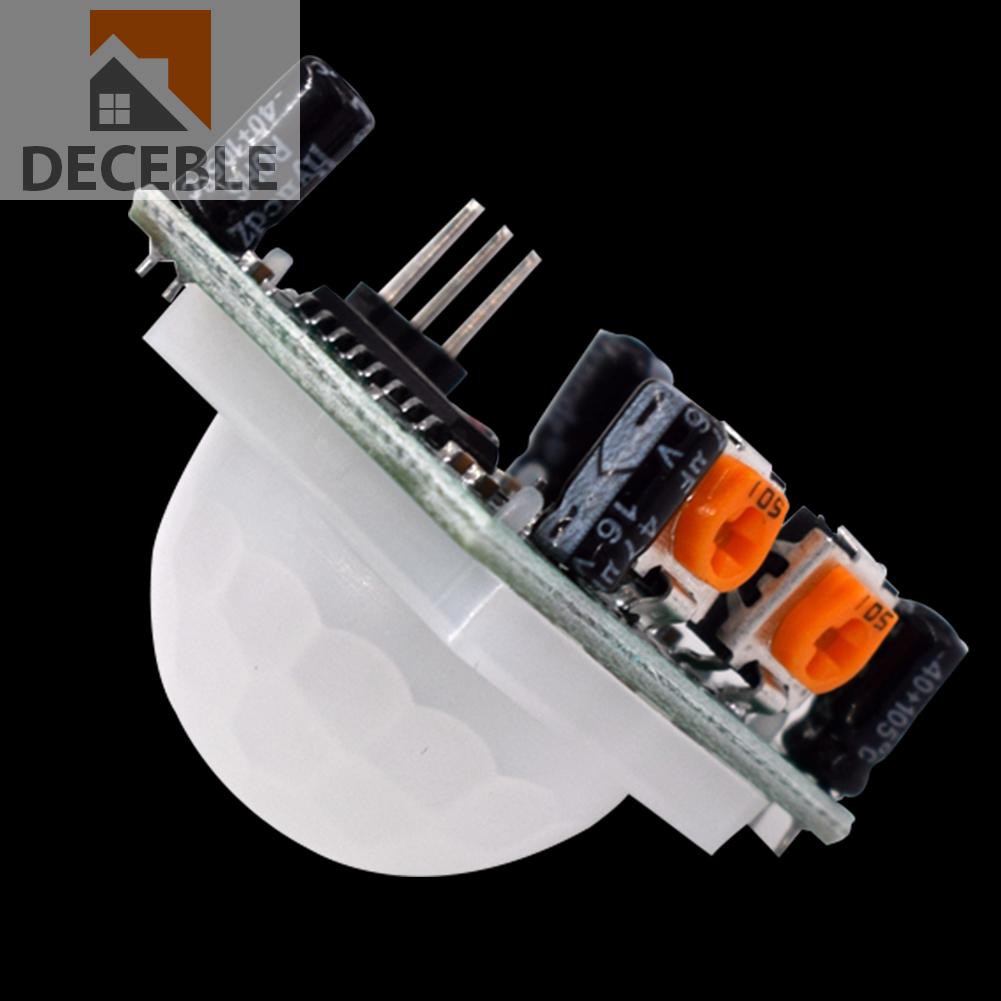

HW-416 Adjustable IR Pyroelectric PIR Passive Infrared Motion Sensor Detector Module
Feature:
Human infrared sensor module is an automatic control product based on infrared technology.
High sensitivity, strong reliability, ultra-low power consumption, ultra-low voltage working mode.
It is widely used in all kinds of automatic induction electrical equipment, especially automatic control products powered by dry batteries.
Specification:
Working voltage range: DC 4.8~20V
Quiescent current: <50uA
Level output: high 3.3 V / low 0V
Trigger mode: L can not be repeated trigger / H repeated trigger (default repeated trigger)
Delay time: 0.5-200s (adjustable) can be produced in the range of tenths of a second to tens of minutes
Blocking time: 2.5s (default) can be produced in the range of tenths of seconds to tens of seconds
Sensing angle: <100 degree cone angle
Working temperature: -15~+70 degrees C
Sensor lens diameter: 23mm/0.91"
Product size: 34*25*23mm/1.34*0.98*0.91"
Product weight: 8g
Packing size: 34*25*23mm/1.34*0.98*0.91"
Gross weight: 8g
Note:
There may be slight size deviations due to manual measurement, different measuring methods and tools.
The picture may not reflect the actual color of the item because of different photographing light, angle and display monitor.
Included:
1 X Motion Sensor Module
