[Mã ELMS05 giảm 5% đơn 300k]Bảng mạch chính Asrock B460M STEEL LEGEND - Bảo hành chính hãng 36 Tháng
8 Đánh Giá
Đã Bán 22
110
2.550.000 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuận Thanh Xuân, Hà Nội
thứ năm 29/04/2021 lúc 09:16 CH
MÔ TẢ SẢN PHẨM

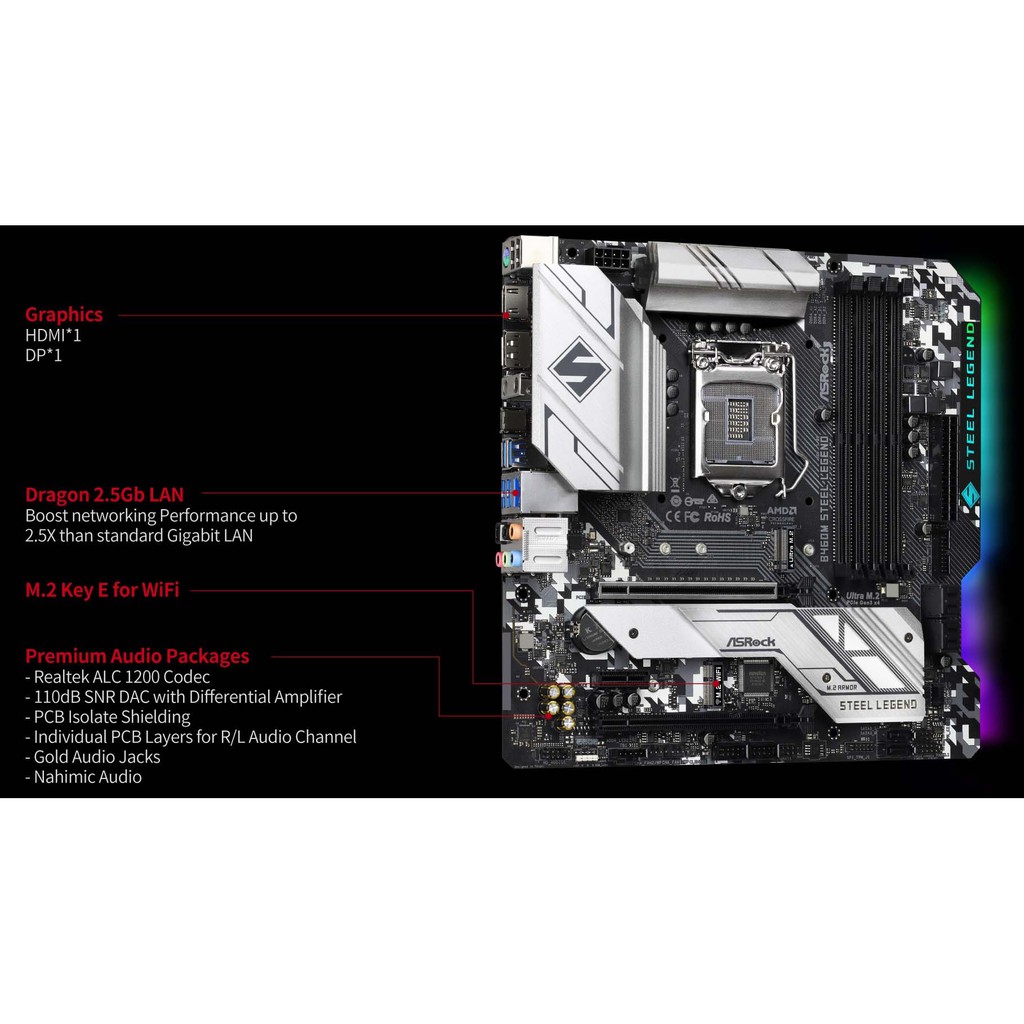

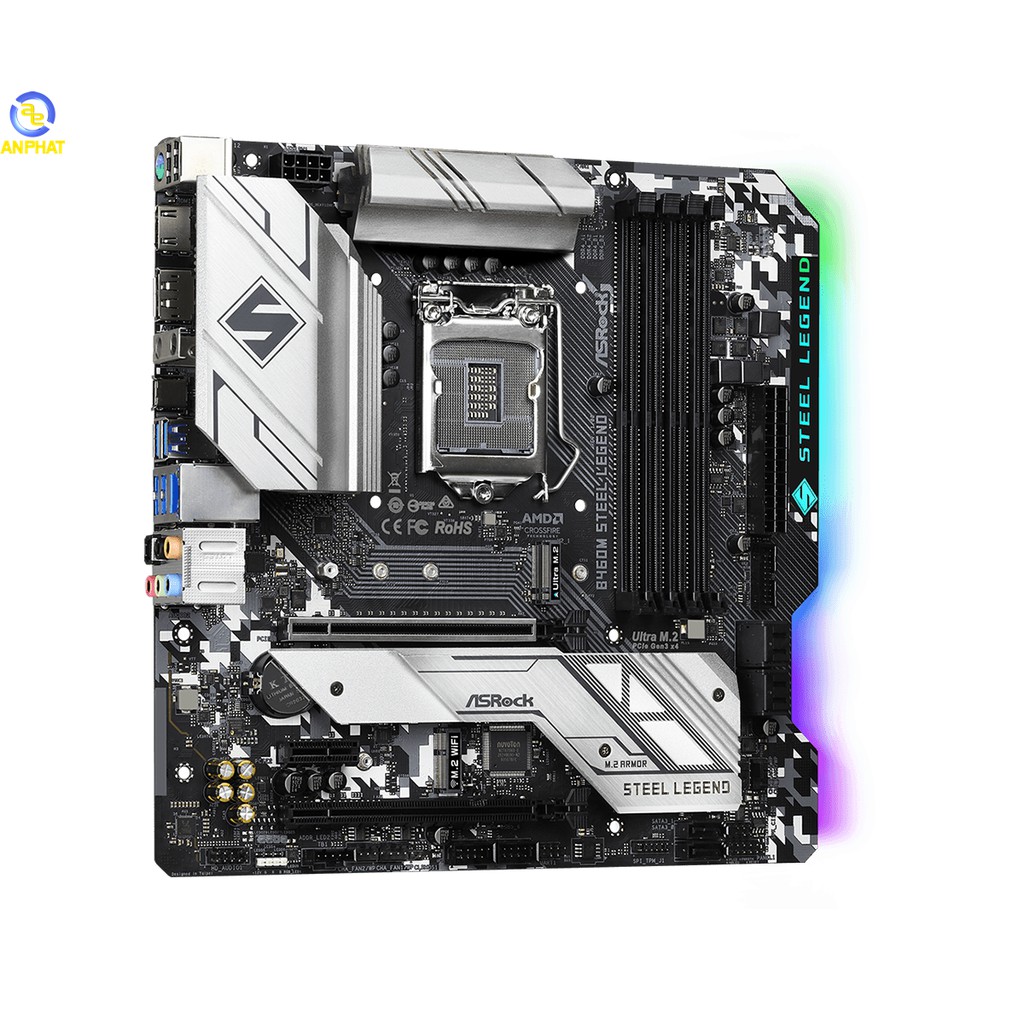

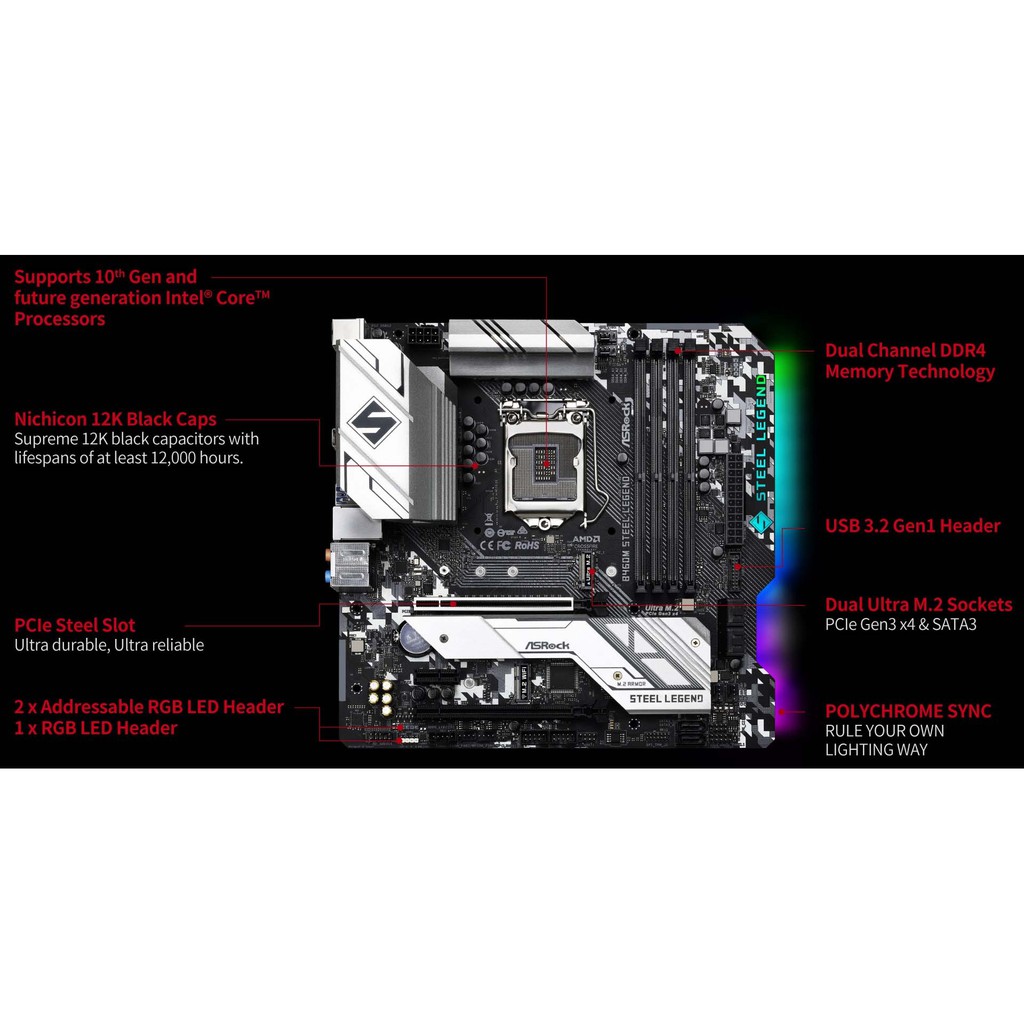

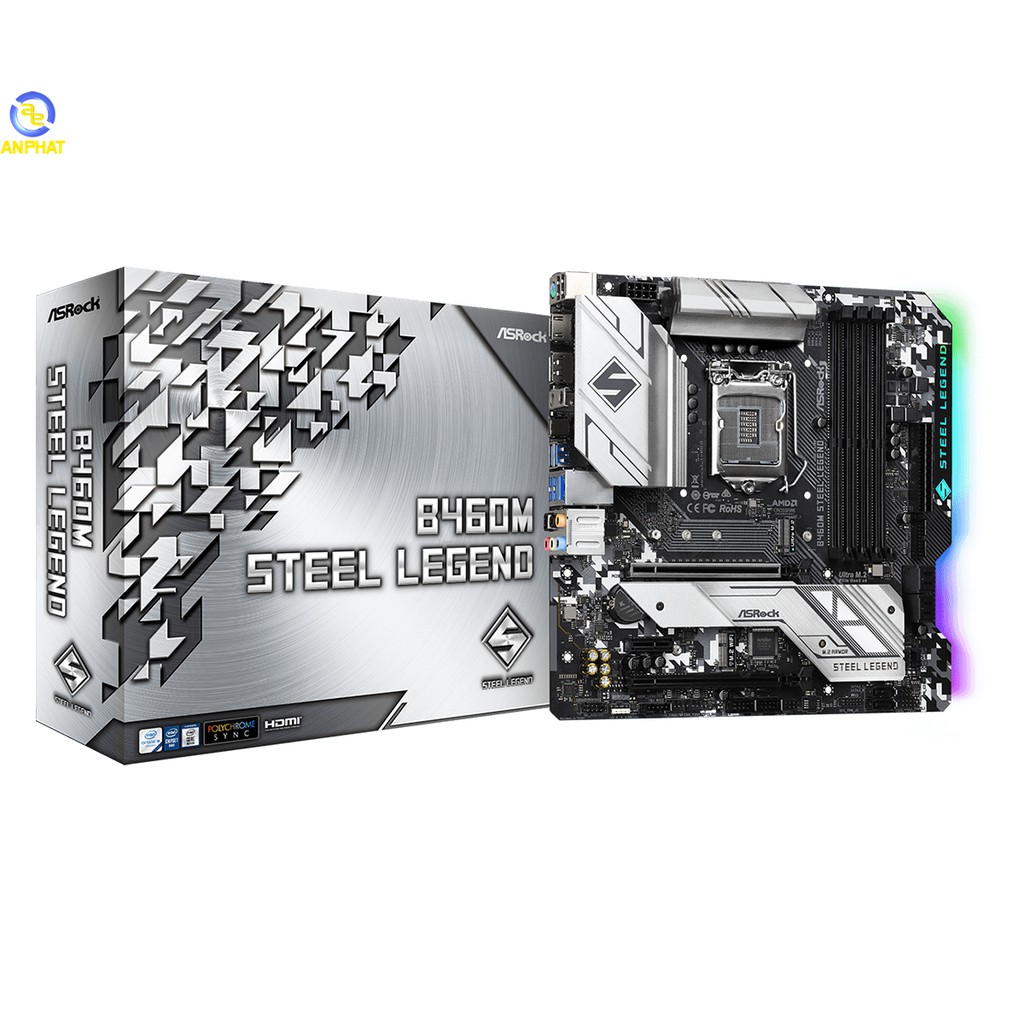

Mainboard Asrock B460M Steel Legend với rất nhiều những tính năng và công nghệ xịn sò như:
Hỗ trợ bộ vi xử lý Intel® Core™ thế hệ thứ 10 (LGA 1200)
Thiết kế điện 9 pha Dr.MOS
Hỗ trợ 128GB DDR4 2933 MHz
2 PCIe 3.0 x16, 1 PCIe 3.0 x1
6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 Ultra M.2 (PCIe Gen3 x4)
7 USB 3.2 Gen1 (2 Mặt trước, 4 Mặt sau, 1 Loại phía sau Type-C)
Tùy chọn đầu ra đồ họa: HDMI, DisplayPort
AMD CrossFireX™
1 M.2 (Khóa E) cho WiFi
Dragon 2.5 Gigabit LAN
ASRock Polychrome SYNC
Âm thanh 7.1 CH HD (Bộ giải mã âm thanh Realtek ALC1200), Âm thanh Nahimic
THÔNG SỐ KỸ THUẬT
Sản phẩm Mainboard - Bo mạch chủ
Tên Hãng Asrock
Model B460M Steel Legend
Tính năng độc đáo
ASRock Super Alloy
- Premium 60A Power Choke
- 50A Dr.MOS
- Combo Caps (Nichicon 12K Black Caps)
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- Shaped PCB Design
- Matte Black PCB
- High Density Glass Fabric PCB 2.5G LAN
ASRock Steel Slot ASRock Full Coverage M.2 Heatsink
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
Hỗ trợ CPU (Bộ vi xử lý) - Supports 10th Gen Intel® Core™ Processors (Socket 1200)
- Digi Power design
- 9 Power Phase design
- Supports Intel® Turbo Boost Max 3.0 Technology
Chipset
- Intel® B460
RAM hỗ trợ
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 128GB**
- Supports Intel® Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots
*Please refer to Memory Support List on ASRock's website for more information.
Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium® and Celeron® support DDR4 up to 2666.
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, GT, DRAM, PCH, VCCST, VCCSA Voltage Multi-adjustment
Hình Ảnh
- Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
- Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
- Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD/HDR Blu-ray Disc
- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
- Supports DisplayPo
Hỗ trợ bộ vi xử lý Intel® Core™ thế hệ thứ 10 (LGA 1200)
Thiết kế điện 9 pha Dr.MOS
Hỗ trợ 128GB DDR4 2933 MHz
2 PCIe 3.0 x16, 1 PCIe 3.0 x1
6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4 & SATA3), 1 Ultra M.2 (PCIe Gen3 x4)
7 USB 3.2 Gen1 (2 Mặt trước, 4 Mặt sau, 1 Loại phía sau Type-C)
Tùy chọn đầu ra đồ họa: HDMI, DisplayPort
AMD CrossFireX™
1 M.2 (Khóa E) cho WiFi
Dragon 2.5 Gigabit LAN
ASRock Polychrome SYNC
Âm thanh 7.1 CH HD (Bộ giải mã âm thanh Realtek ALC1200), Âm thanh Nahimic
THÔNG SỐ KỸ THUẬT
Sản phẩm Mainboard - Bo mạch chủ
Tên Hãng Asrock
Model B460M Steel Legend
Tính năng độc đáo
ASRock Super Alloy
- Premium 60A Power Choke
- 50A Dr.MOS
- Combo Caps (Nichicon 12K Black Caps)
- Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
- Shaped PCB Design
- Matte Black PCB
- High Density Glass Fabric PCB 2.5G LAN
ASRock Steel Slot ASRock Full Coverage M.2 Heatsink
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock POST Status Checker (PSC)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP Shop
Hỗ trợ CPU (Bộ vi xử lý) - Supports 10th Gen Intel® Core™ Processors (Socket 1200)
- Digi Power design
- 9 Power Phase design
- Supports Intel® Turbo Boost Max 3.0 Technology
Chipset
- Intel® B460
RAM hỗ trợ
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 128GB**
- Supports Intel® Extreme Memory Profile (XMP) 2.0
- 15μ Gold Contact in DIMM Slots
*Please refer to Memory Support List on ASRock's website for more information.
Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium® and Celeron® support DDR4 up to 2666.
**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
BIOS - 128Mb AMI UEFI Legal BIOS with multilingual GUI support
- ACPI 6.0 Compliant wake up events
- SMBIOS 2.7 Support
- CPU Core/Cache, GT, DRAM, PCH, VCCST, VCCSA Voltage Multi-adjustment
Hình Ảnh
- Hardware Accelerated Codecs: AVC/H.264, HEVC/H.265 8bit, HEVC/H.265 10bit, VP8, VP9 8bit, VP9 10bit, MPEG 2, MJPEG, VC-1**
- Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
- Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, Intel® SGX Content Protection, UHD/HDR Blu-ray Disc
- Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
- Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz
- Supports DisplayPo
