Specifications:

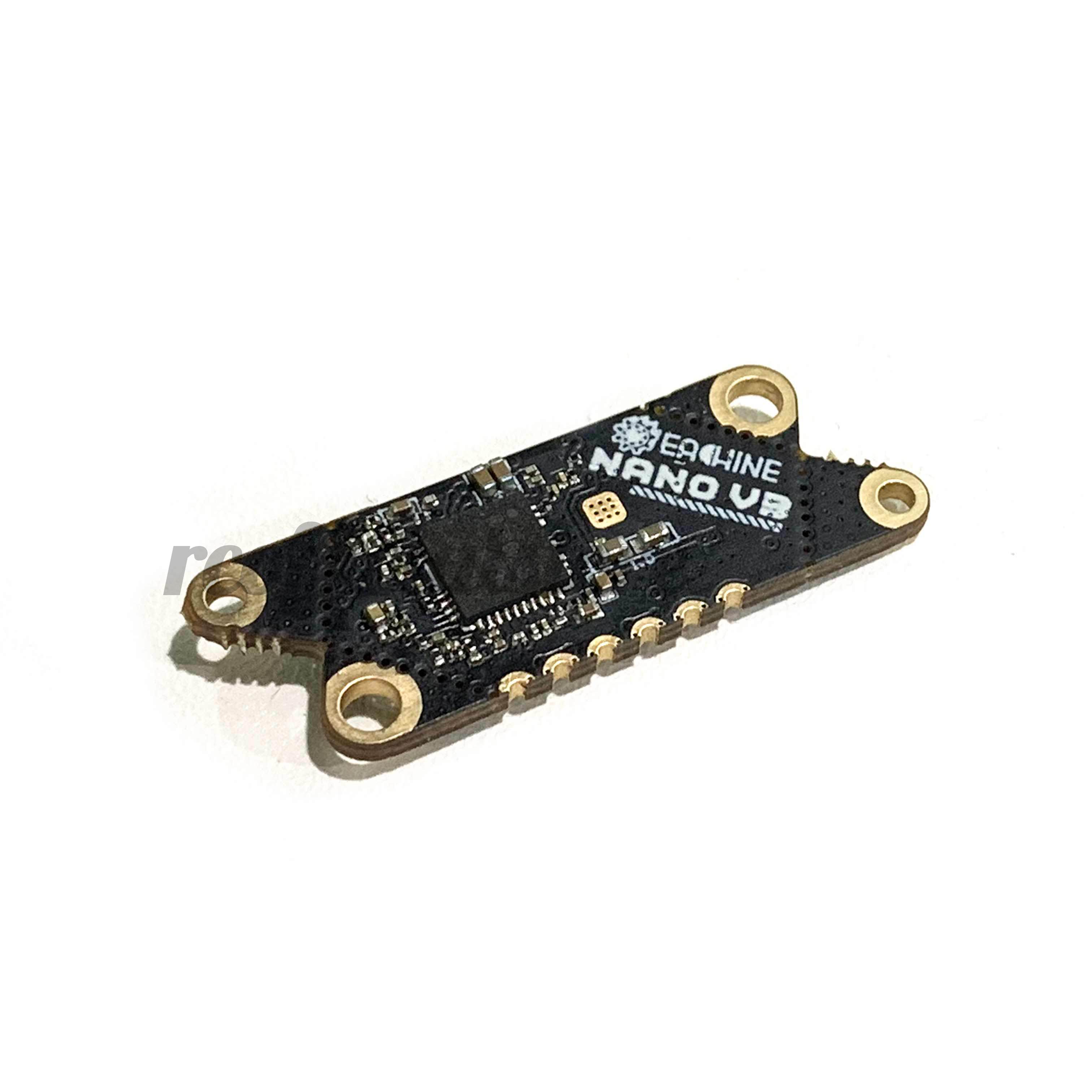

Brand Name: Eachine
Item Name: Nano V3 VTX
Frequency: 5.8GHz
Channel: Standard 40 channels. A/B/E/F/R frequency group
Input Voltage: DC 5V
Output Power: PIT/25mW/100mW/200mW/400mW switchable
Control Mode: BFOSD Control(RX)/Button
Video System: NTSC/PAL
Antenna Interface: IPEX
Installing Hole: 20X20mm.M3, 25.5X25.5mm.M2
Size: 28mm x 13.6mm x 5mm
Weight: 3g
Output Power:
PIT@75mA
25mW@180mA/16dBm
100mW@280mA/21.5dBm
200mW@330mA/24.5dBm
400mW@400mA/27.5dBm
Features:

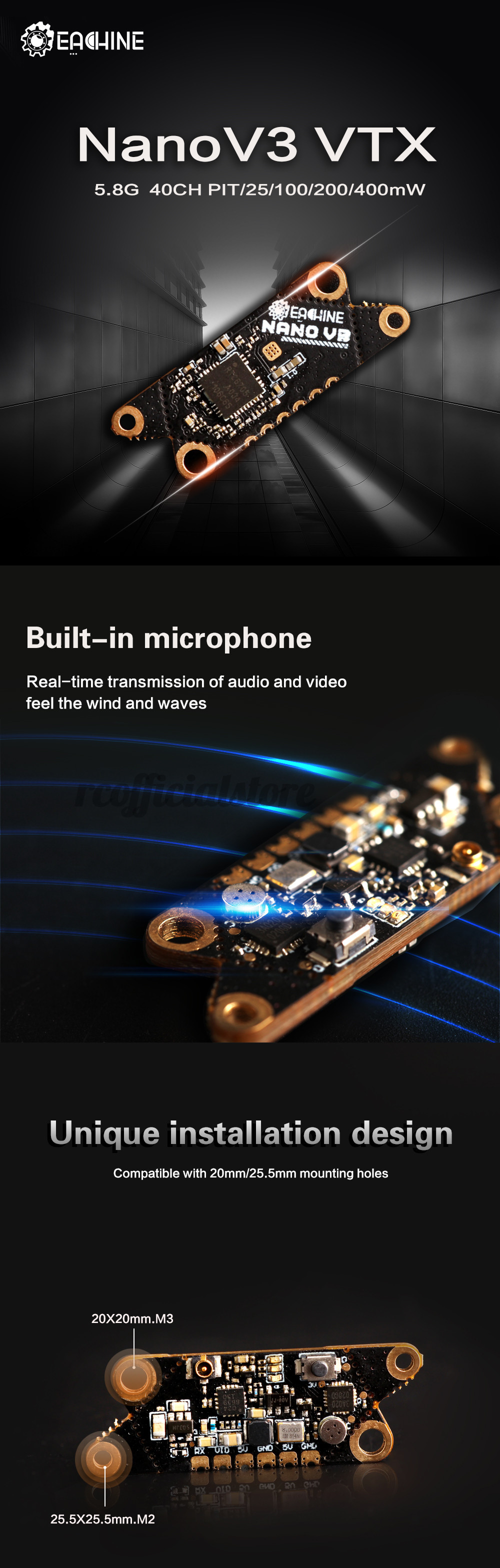

- 5.8GHz 40CH FPV transmitter
- 5V input voltage
- Pit/25/100/200/400mW power switchable
- Support OSD control via flight controller
- Built-in microphone,real time transmission of audio and video
- Unique installation design,compatible with 20mm/25.5mm mounting holes
- Ultra small size,reduce installation space
- 1-2km long transmission distance
- Support 8 drones flying at the same time without interference
- It can ensure that the image has no snowflake,no stripes under the maximum throttle situation.
Package Included:
1 x Eachine Nano V3 VTX
1 x Ipex Linear Brass Antenna
6 x VTX Cable
