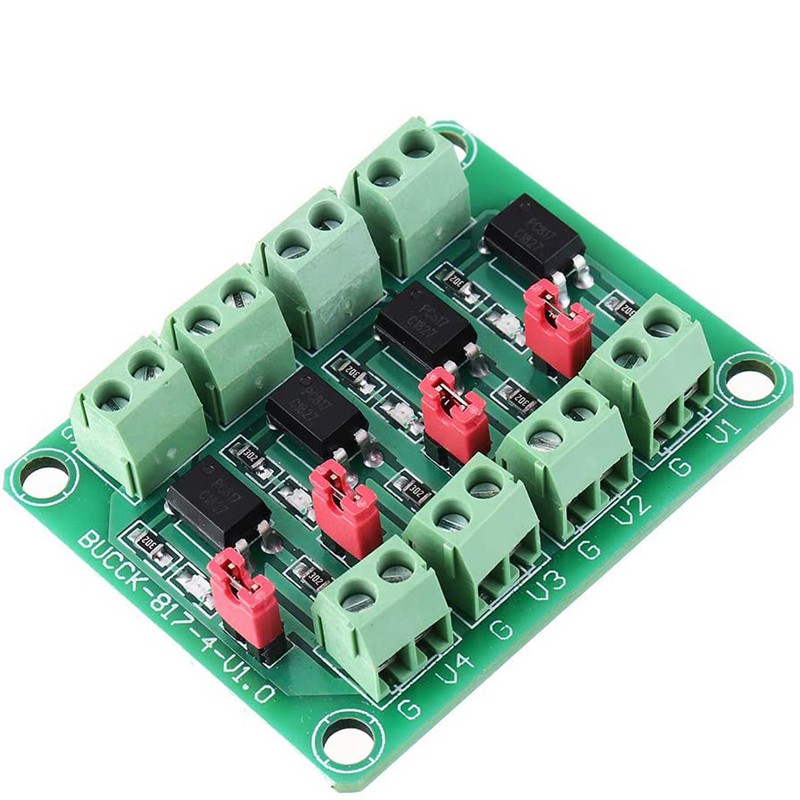

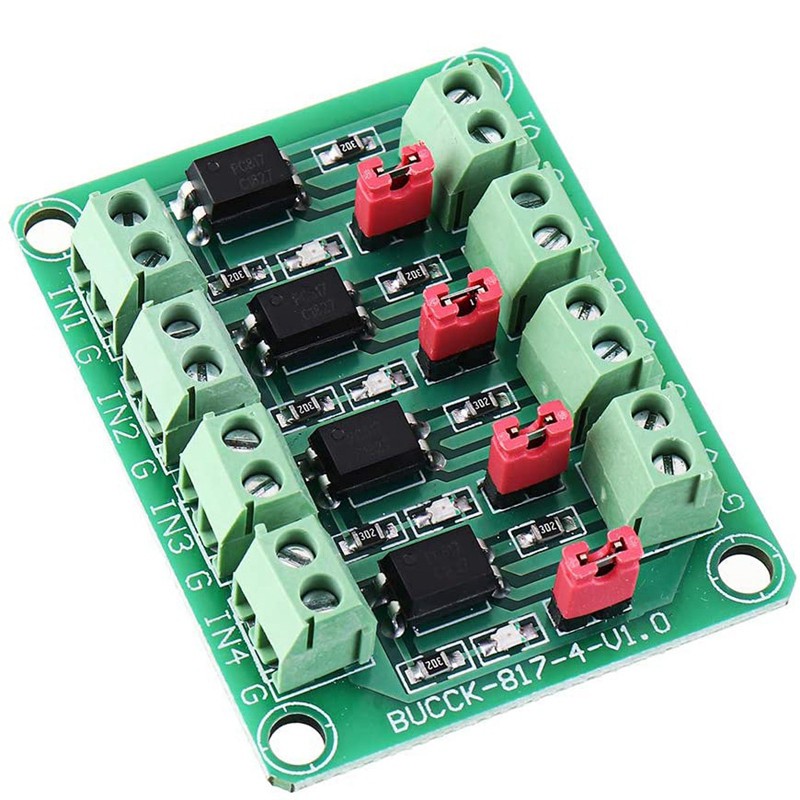

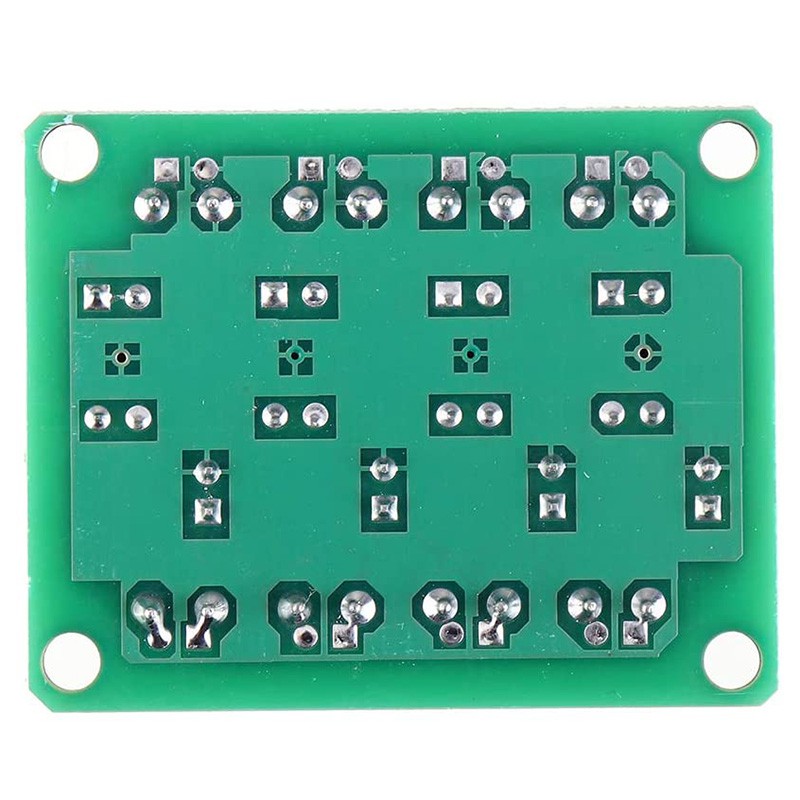

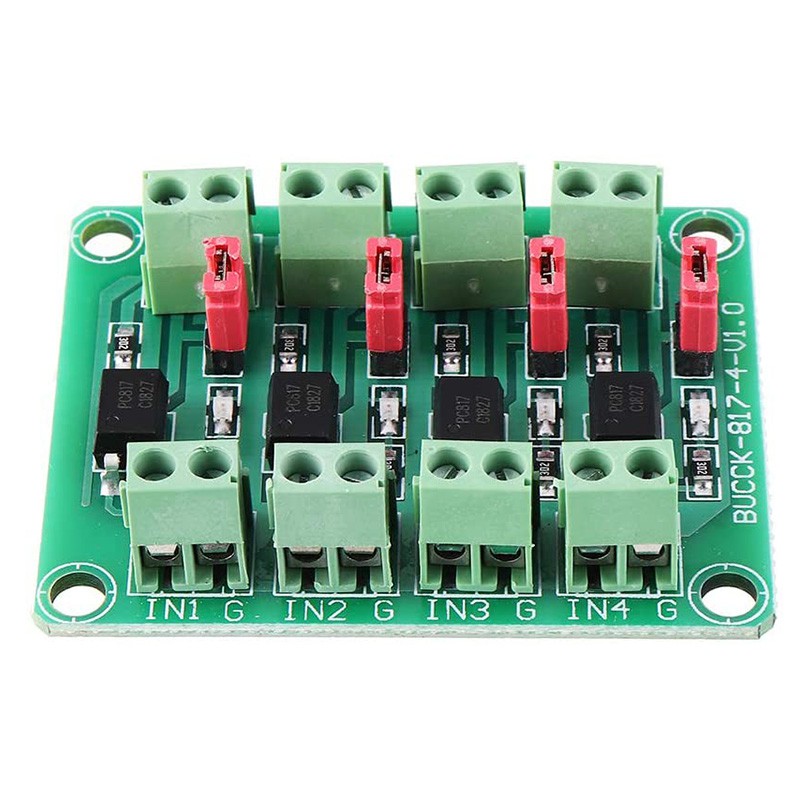

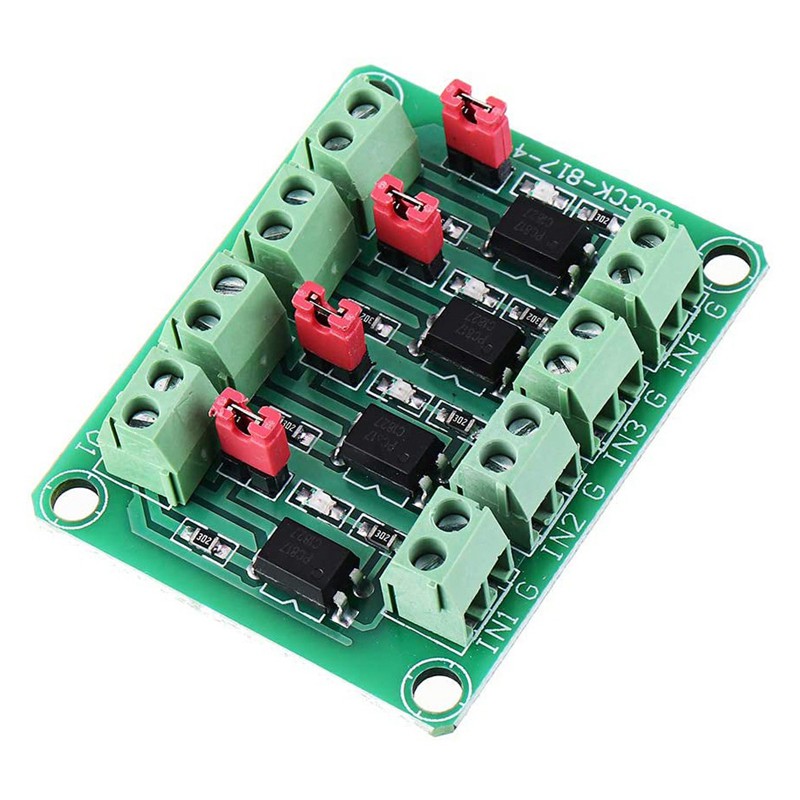

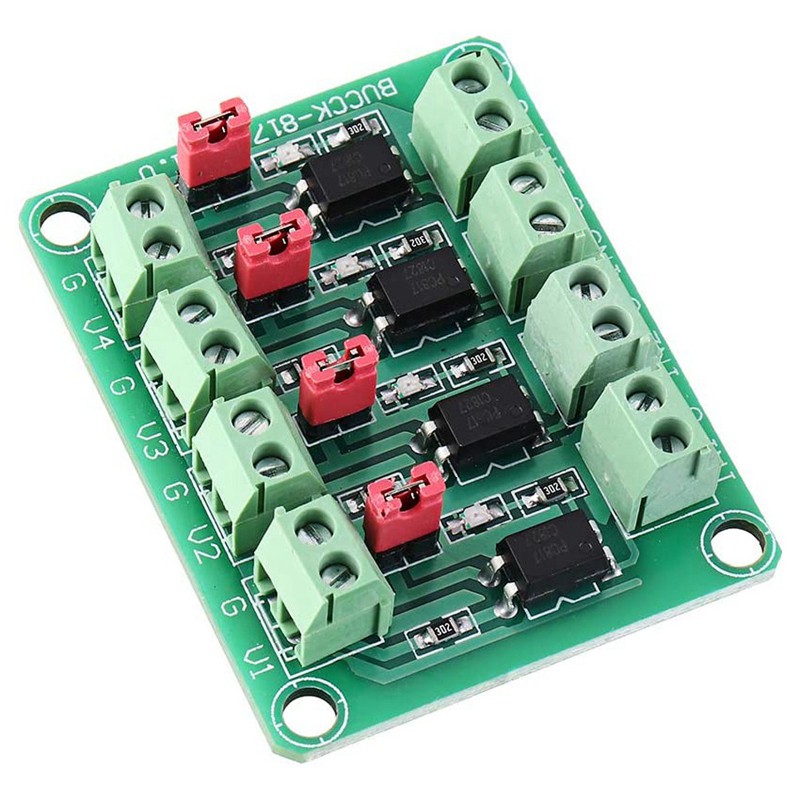

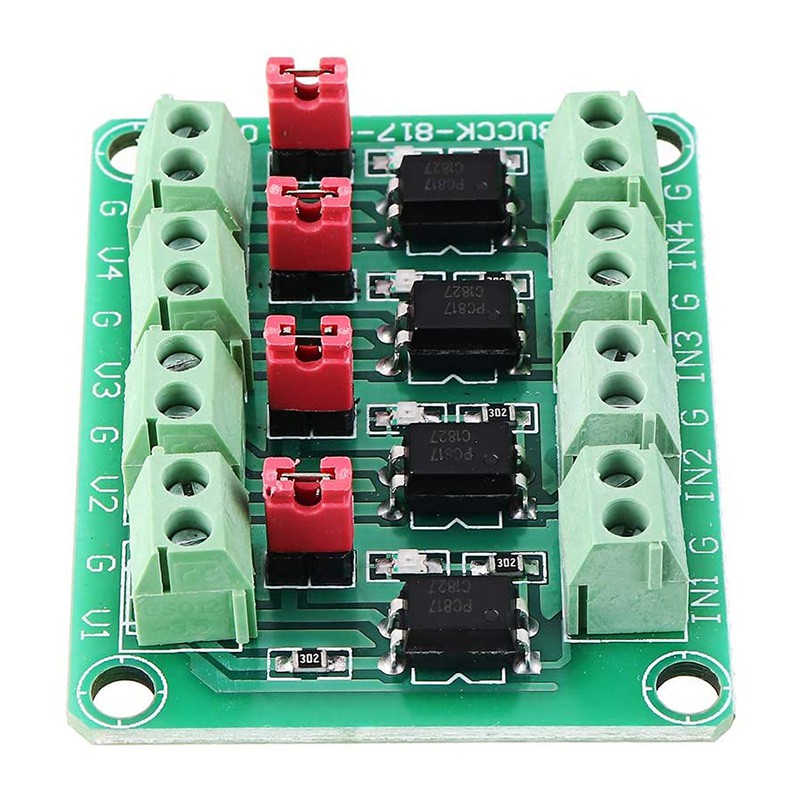

CHANNEL Bảng Mạch Điều Khiển Điện Áp 4 Kênh 817
0 Đánh Giá
Đã Bán 0
87
36.000 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
thứ sáu 14/05/2021 lúc 02:15 CH
MÔ TẢ SẢN PHẨM
This ule is used when the actual operation requires isolation control and voltage conversion.
It can realize 3.3V or 5V to control the interface of 3.6--24V voltage level. After the control terminal is turned on, the controlled terminal will also be turned on.
Photoelectric isolation has strong anti-interference ability. Can drive big behindPower triodes, MOS tubes, etc., where high voltage driving is required, can also directly drive low power 24V relays.
If it is a pulse signal, please note that the limit of 817 is below 4KHZ. If the control signal is greater than 4KHZ, please do not use this ule, it will not work properly.
Colour:Green
Material:PCB

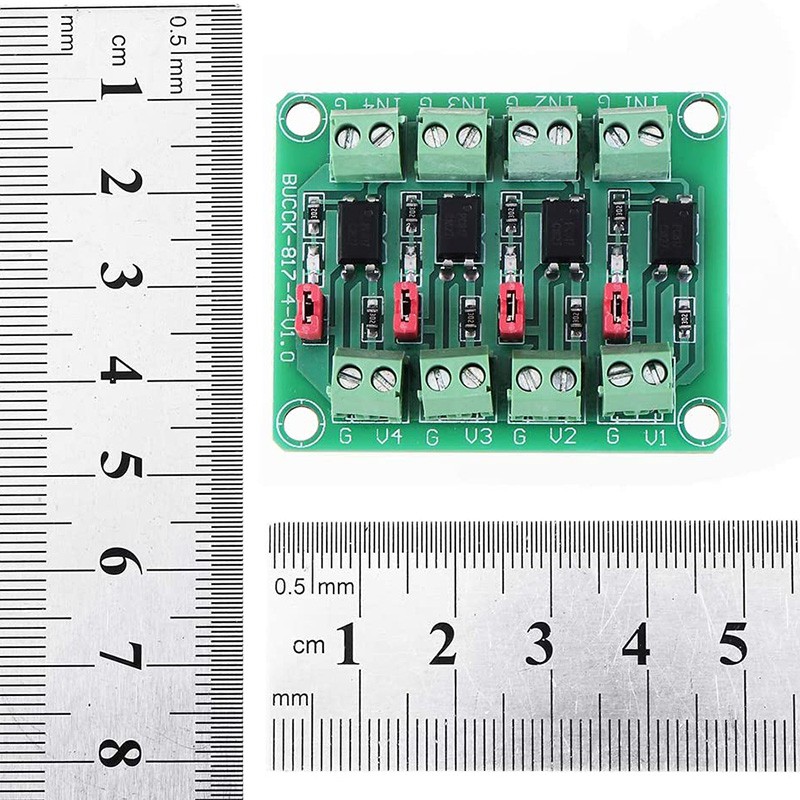

Size:48x42x38mm
Package Contents:
1 x 817 Optocoupler 4 Channel Voltage Isolation BoardOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
It can realize 3.3V or 5V to control the interface of 3.6--24V voltage level. After the control terminal is turned on, the controlled terminal will also be turned on.
Photoelectric isolation has strong anti-interference ability. Can drive big behindPower triodes, MOS tubes, etc., where high voltage driving is required, can also directly drive low power 24V relays.
If it is a pulse signal, please note that the limit of 817 is below 4KHZ. If the control signal is greater than 4KHZ, please do not use this ule, it will not work properly.
Colour:Green
Material:PCB
Size:48x42x38mm
Package Contents:
1 x 817 Optocoupler 4 Channel Voltage Isolation BoardOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
