MÔ TẢ SẢN PHẨM
Description:
This camera is designed for observing blind spots that cannot be reached by the mirror. The wide-angle viewing angle of the 170° fisheye lens helps you see more things while driving or parking, effectively avoiding a lot of trouble.
Feature:
1. Easy to install: rear/front switchable: optional to define the distance scale and rearview mirror/normal image switchable-you can use it as a rear-view backup camera or a front/side camera. Note: By default, this is a front camera with no distance scale
2. 170-degree wide viewing angle: to help you see blind spots that your eyes cannot reach. Use a host with standard RCA input or an aftermarket LCD/TFT display. Suitable for all kinds of vehicles: cars, mini trucks, minivans, etc. The working voltage is only 12V.

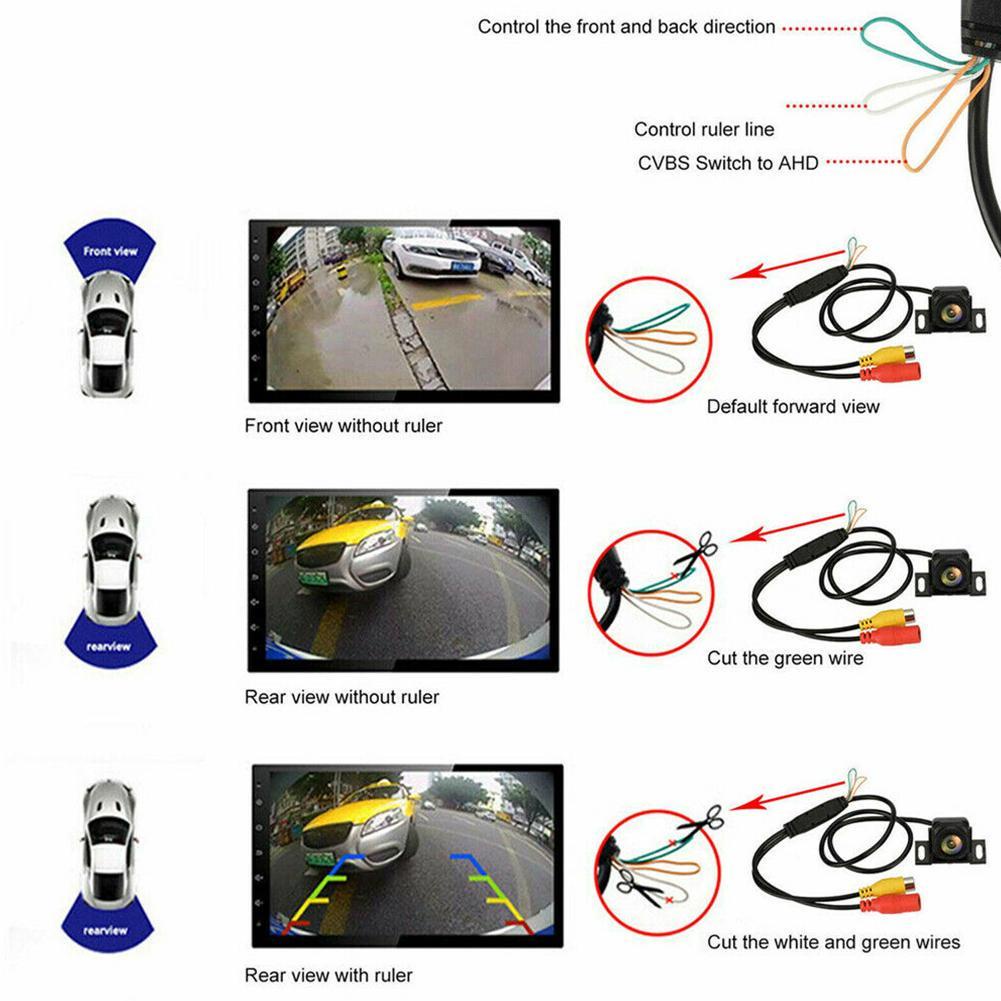

3. Highlight: This camera is a front camera, and there is no distance tick mark as the default setting for backup. To use it as a rear-view camera, you need to cut the green loop wire. To display the parking guide, cut the white loop wire.
4. Cut off the white cable: cancel the parking guide line. Cut the green cable: Switch the normal image (front view) to the rear view mirror (rear view). Cut the orange cable: switch from CVBS mode to AHD mode (Note: If you want to use AHD mode, you need to set the AHD channel on the display).
Specification:
Sensor: PC1030 1/4 inch color CMOS
Effective pixel: NTSC 648 x 488
TV system: NTSC AHD/CVBS switch
Lens angle: 170 degrees
Electronic shutter: 1/60 (NTSC), 1/50 (PAL) -1/10000s
Resolution: 480 TV lines
Minimum illumination: 0.2Lux
Power supply: DC 12V
Power consumption: 0.5W max
Operating temperature: -20 degrees Celsius to +75 degrees Celsius (RH95% maximum)
Storage temperature: -40 degrees Celsius to +85 degrees Celsius (RH95% maximum)

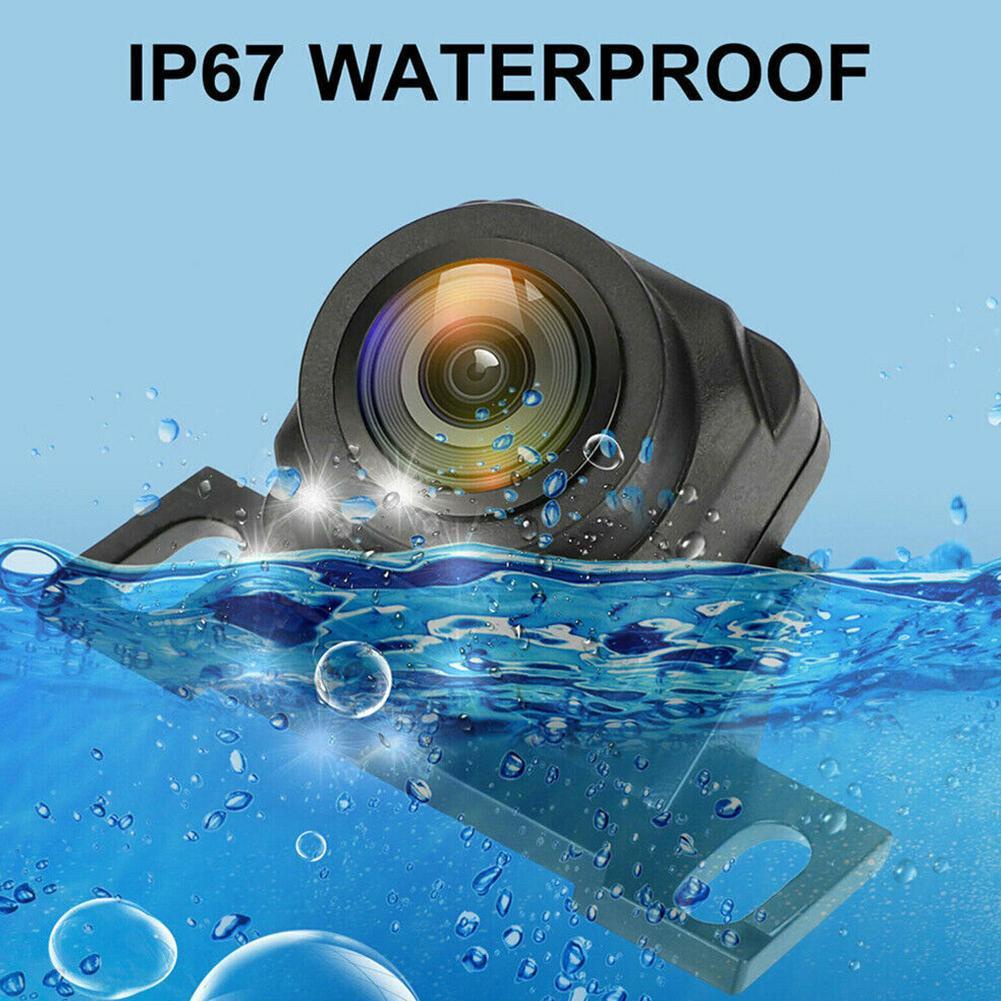

Waterproof rating: IP67
Colour: Black
Video cable length: about 6 meters/19.68 feet

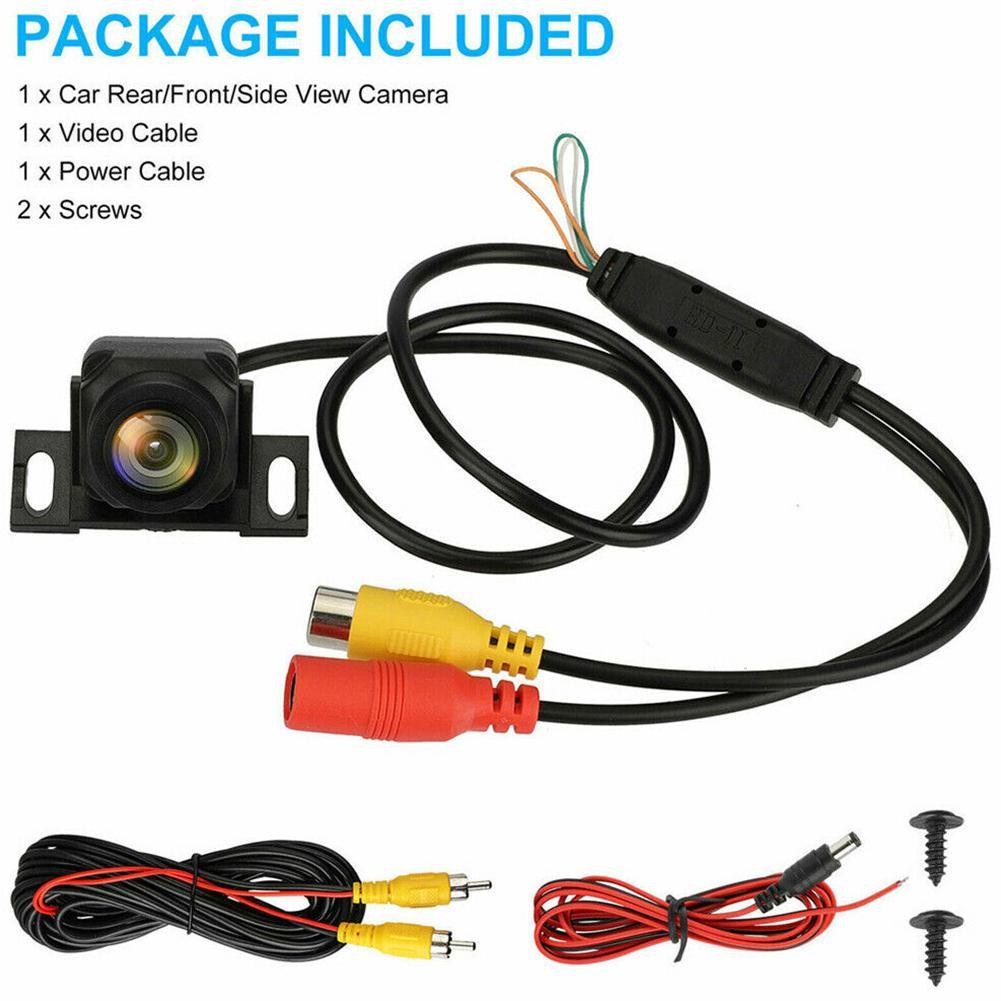

Package includes:
1 X Rear View Camera
1 X Video Cable
1 X Power Cable
if you want buy more than we listed, please contact us.
There are so many useful and cheap item in our store.
You can contact with us to get more detail of the goods .
We are professional Shopee seller.
