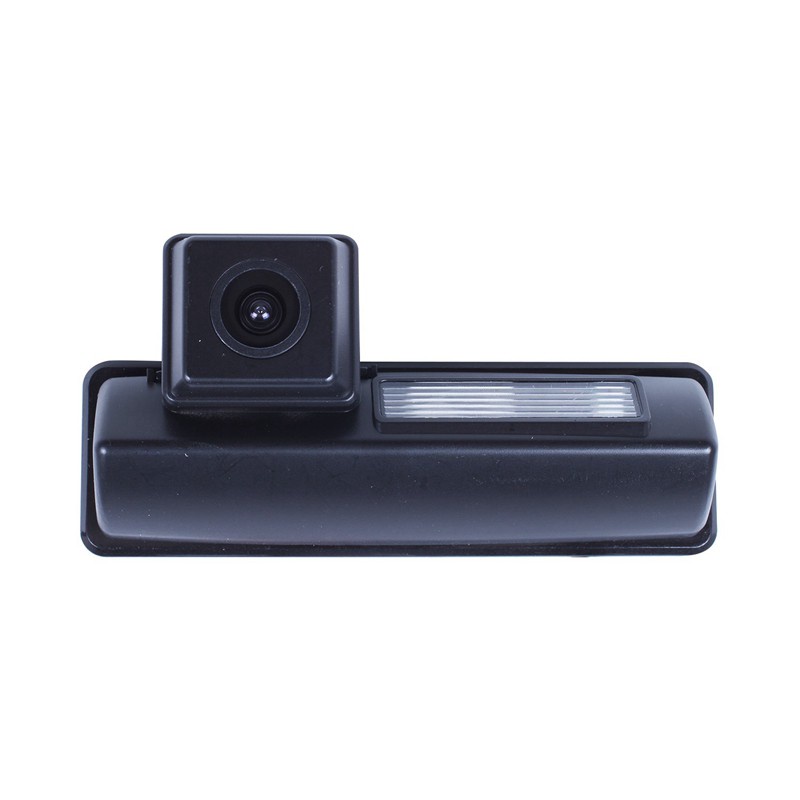

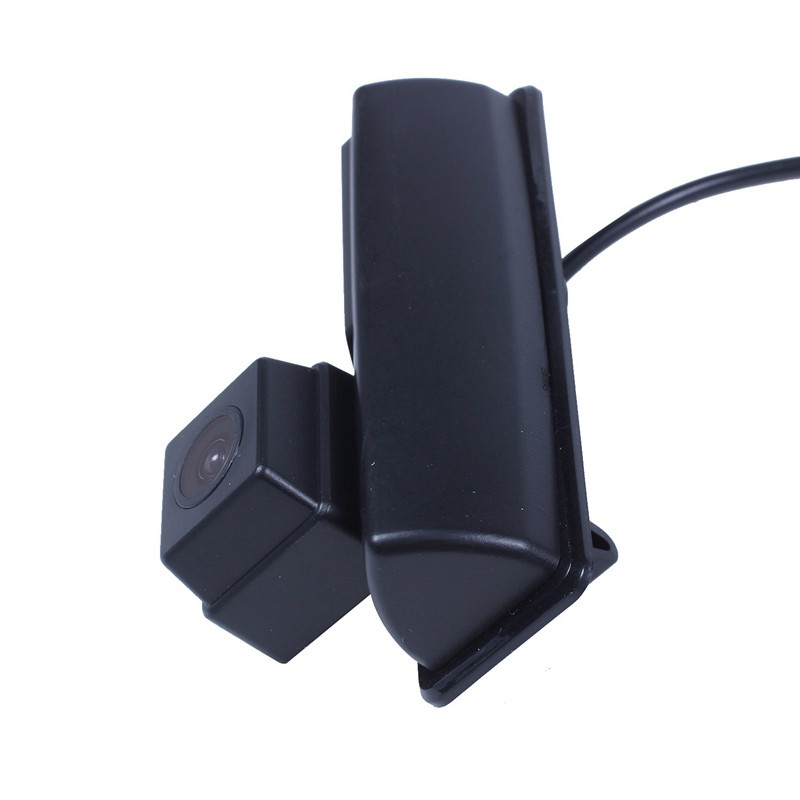

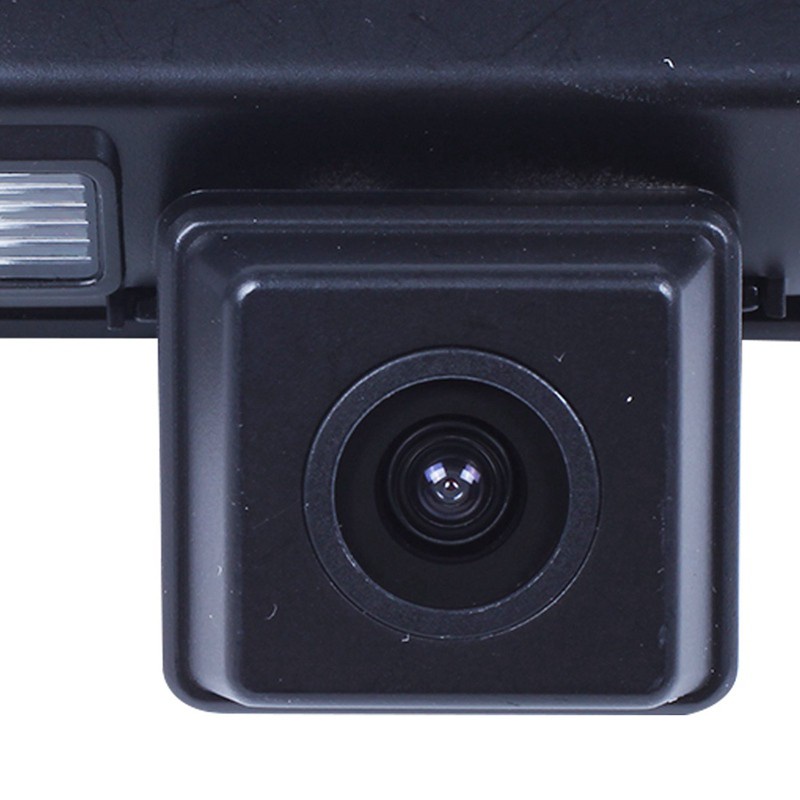

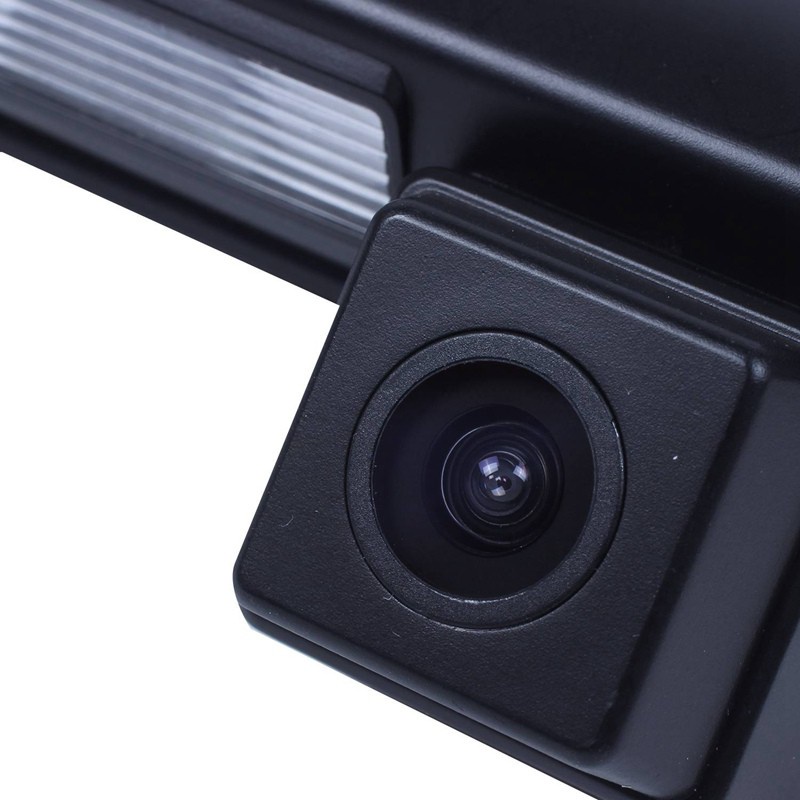

Camera Chiếu Hậu Chất Lượng Cao Cho Xe Hơi Toyota Camry 2007-2012
0 Đánh Giá
Đã Bán 0
107
198.000 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
thứ hai 05/07/2021 lúc 11:19 CH
MÔ TẢ SẢN PHẨM
Image sensor: 1/4 inch color CCD
TV system: NTSC and PAL
Effective pixels: 728 x 512
Resolution: 520 TV line
material: plastic
Color : black
Video output: 1.0Vp-p, 75
Electronic shutter: 1/60 (NTSC)-1 / 10000s, 1/50 (PAL)-1 / 10000s
Waterproof rating: IPX 68
Working temperature: -20 ° C ~ + 80 ° C RH95%
Working power (DCV): 12
Current consumption: up to 90 mA
Settings:
1. Mount the camera in the license area of the license plate
2. Adjust the camera lens to the best position.
3. Connect the power cord (red and black) to the headlight wiring of the car's power cord.
4. Connect the video output (yellow line) to the display.
About the rear view camera system of the car:
Typically, most monitors support NTSC and PAL TV systems. Therefore, it doesn't matter if the camera is a PAL or an NTSC system.
Package Contents:
1* camera

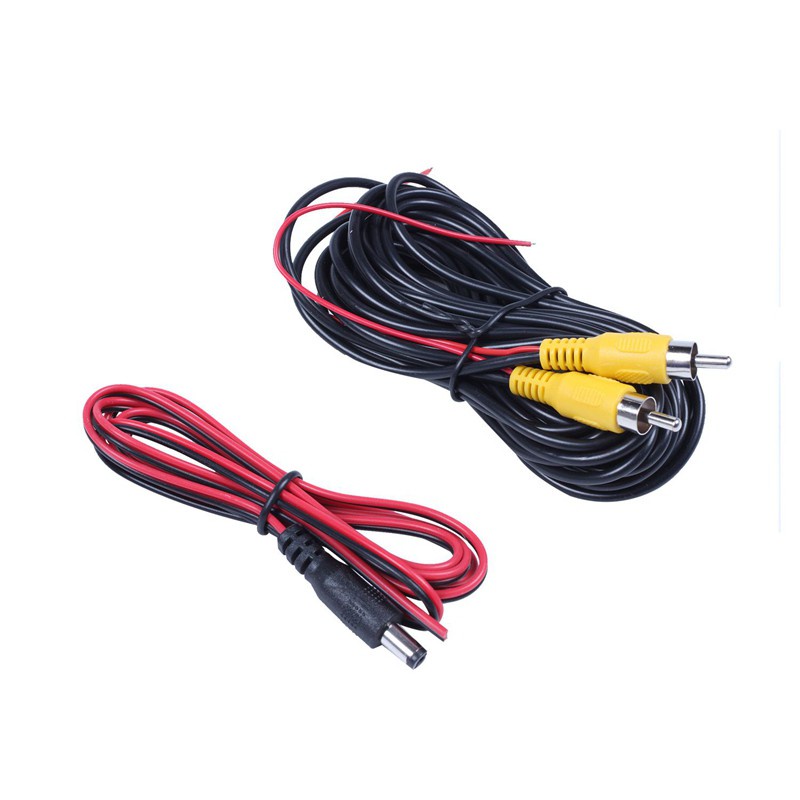

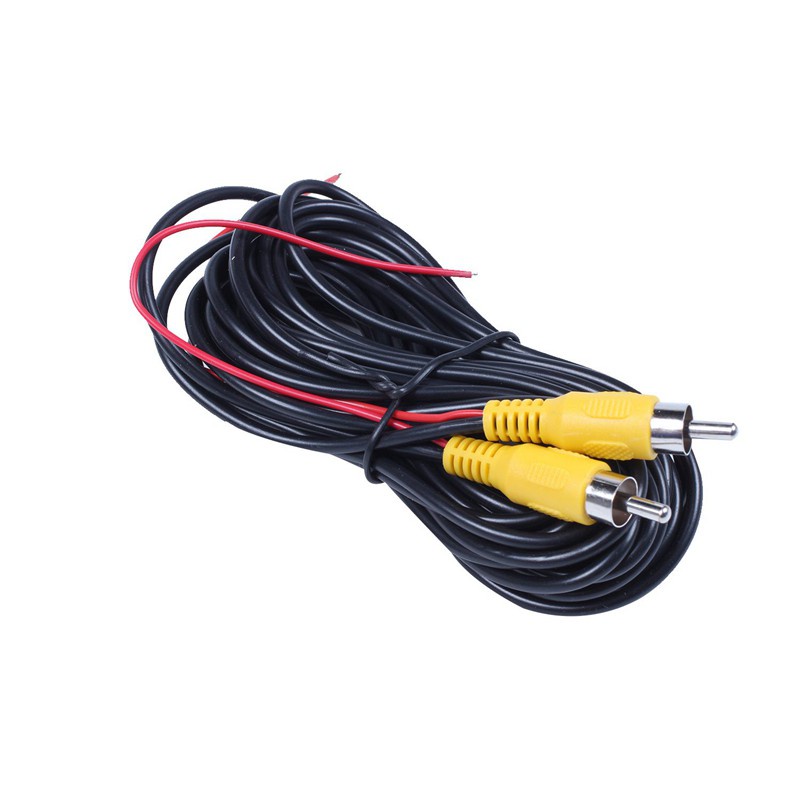

1* video cable

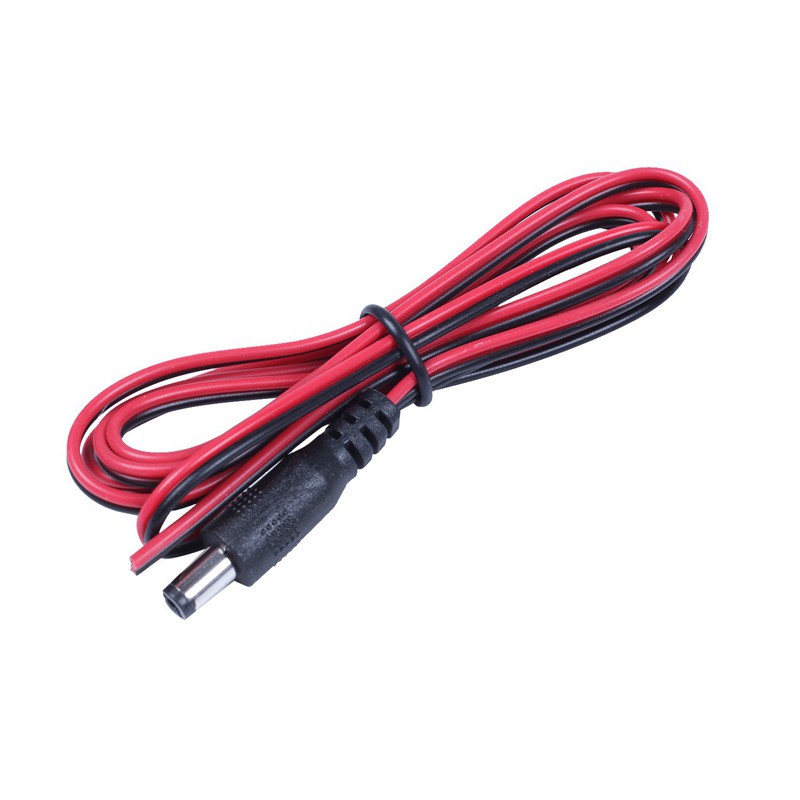

1* power cable
1* Instruction manualOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
