Bo Mạch Mở Rộng + Bộ Tản Nhiệt Drv8825 Cho Máy In 3d Arduino
0 Đánh Giá
Đã Bán 0
78
255.000 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
chủ nhật 23/05/2021 lúc 04:56 CH
MÔ TẢ SẢN PHẨM
Simple step and direction control interface; The interface can connect directly with 3.3V and 5V systems; Support over-temperature thermal shutdown, over-current shutdown and under-voltage lockout; Support short-to-ground and shorted-load protection; Six different step resolutions: full-step, half-step, 1/4-step, 1/8-step, 1/16-step, and 1/32-step; 4-layer, 2 oz copper PCB for improved heat dissipation.
Adjustable current control support you to set the maximum current output with a potentiometer, which lets you use voltages above your stepper motor's rated voltage to achieve higher step rates; Intelligent chopping control that automatically selects the correct current decay e (fast decay or slow decay).
Uses removable A4988 or DRV8825 compatible stepper drivers.
The extension board can be used for carving machine, 3 d printer driver expansion board
GRBL 0.8 compatible. (Open source firmware that runs on an for Arduino UNO that turns G-code commands into stepper signals)
PWM Spindle and direction pins,4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z or do a full 4th axis with custom firmware using pins D12 and D13)
Compact design. Stepper Motors can be connected with 4 pin molex connectors or soldered in place.
Please note that this is an unassembled kit and Basic soldering skills are needed.

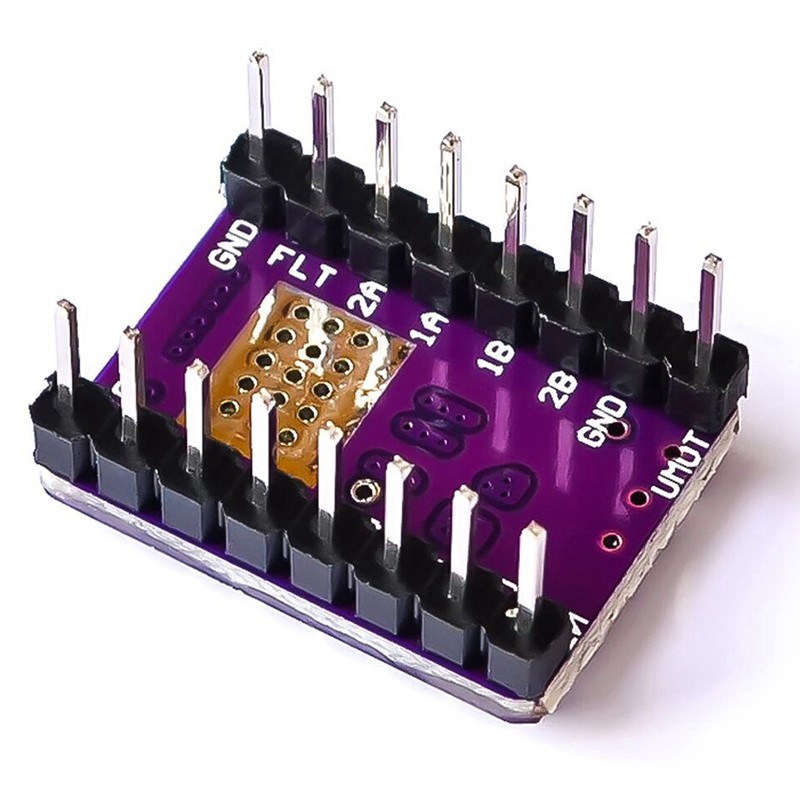

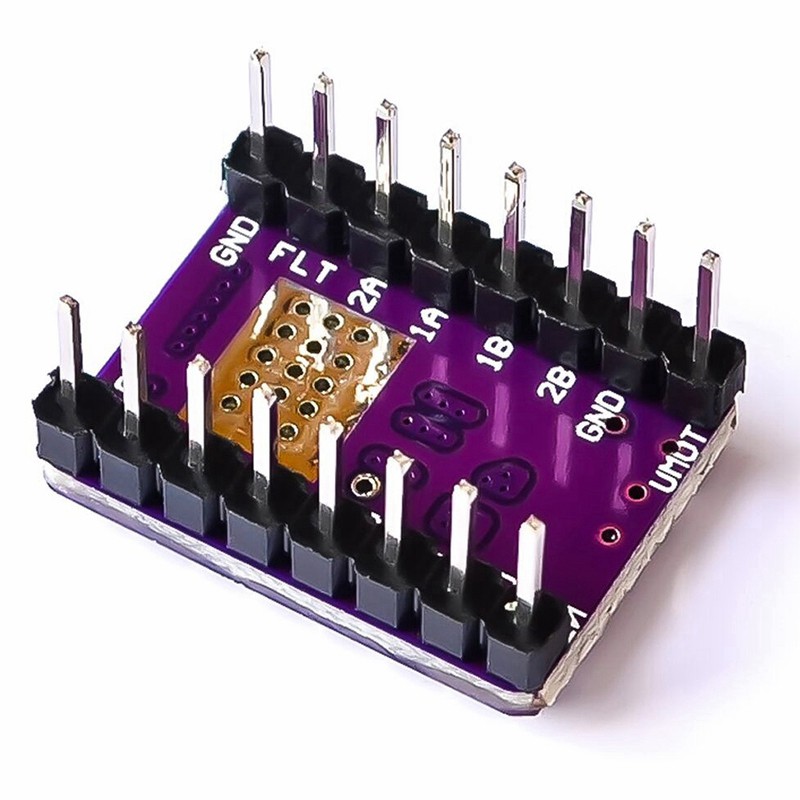

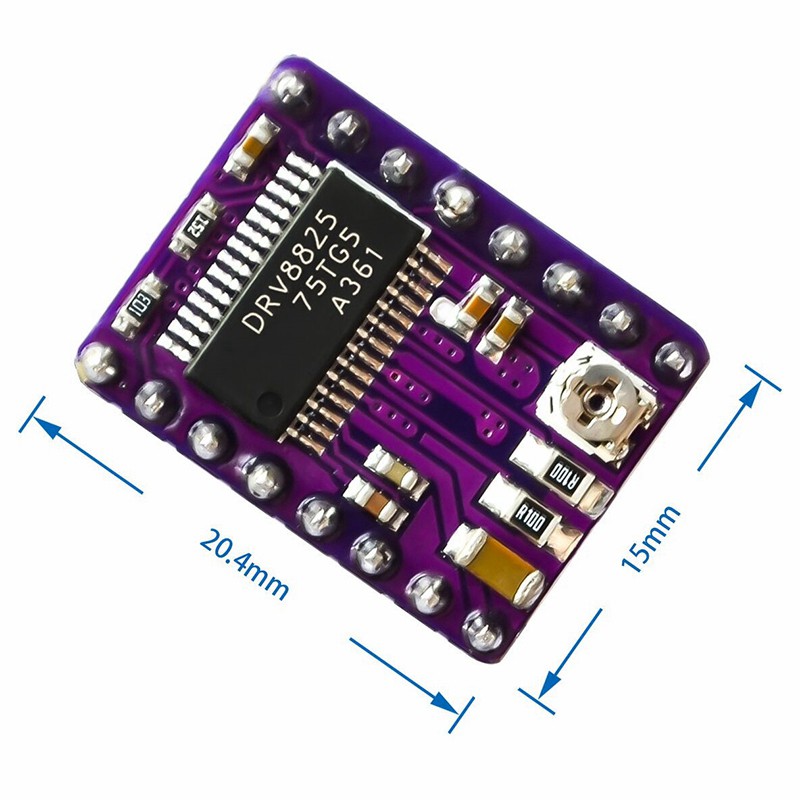

DRV8825 Stepper Motor Driver
The ule has an interface pinout is almost the same with A4988 stepper motor drive carrier, so that it can be used as a higher performance in a pull-down menu the plates replaced in many applications.
DRV8825 features an adjustable current limit, overcurrent and overtemperature protection, six micro-resolution (down 1/32-step).
It uses 8.2 - 45V, can provide up to about 1.5 per phase no heat sink or forced air flow (rated up to 2.2 per volume sufficient additional cooling).
45V maximum supply voltage
Built-in regulator (needed external logic voltage supply)

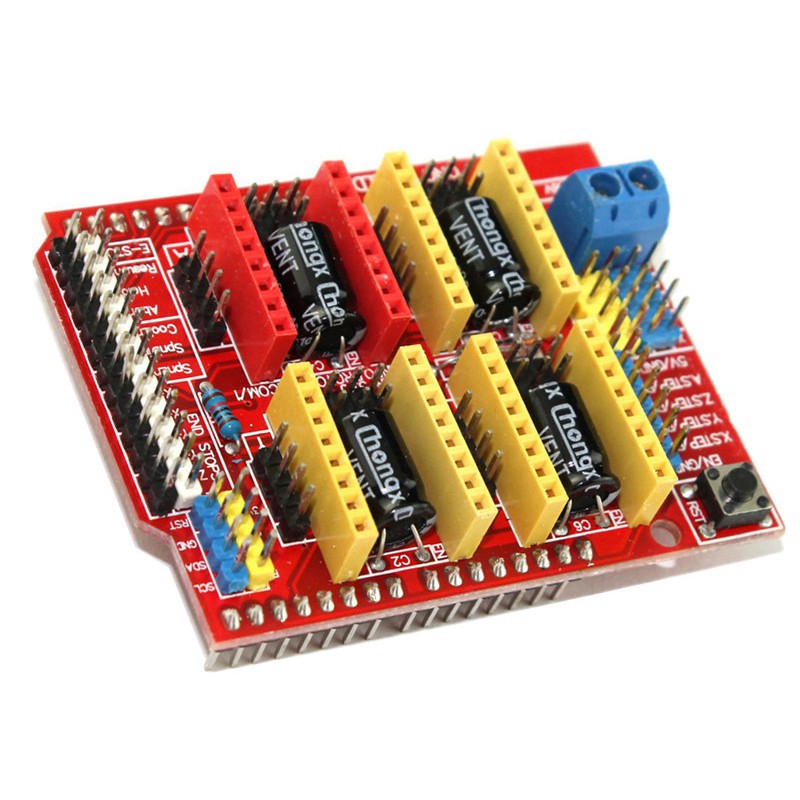

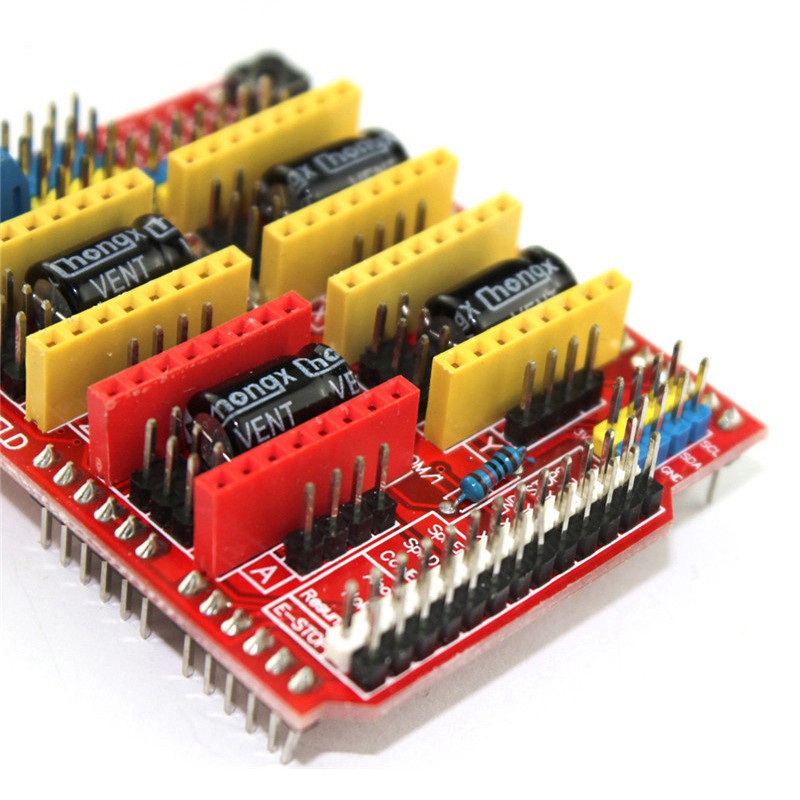

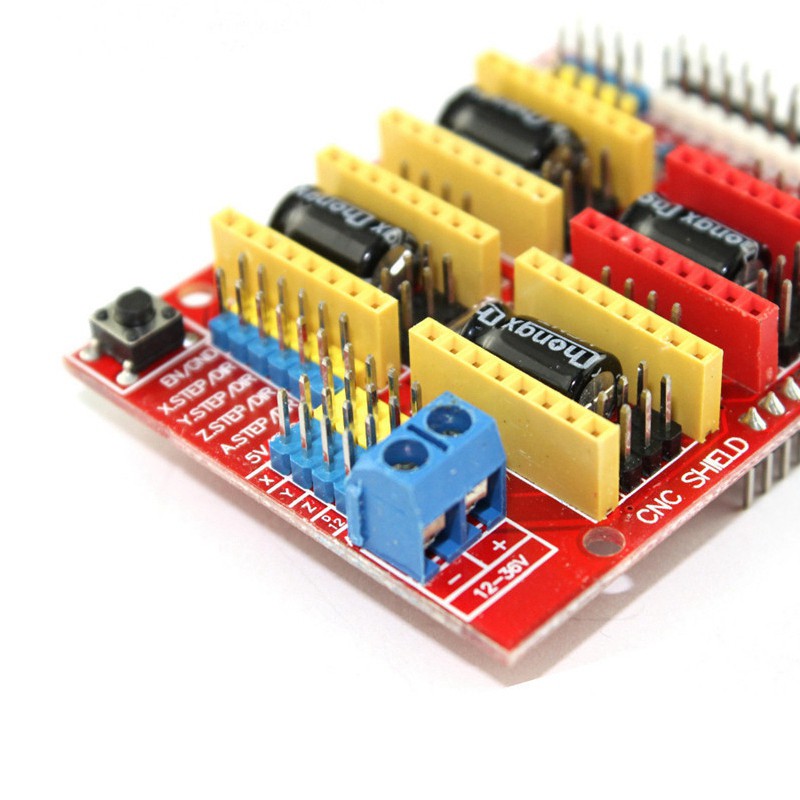

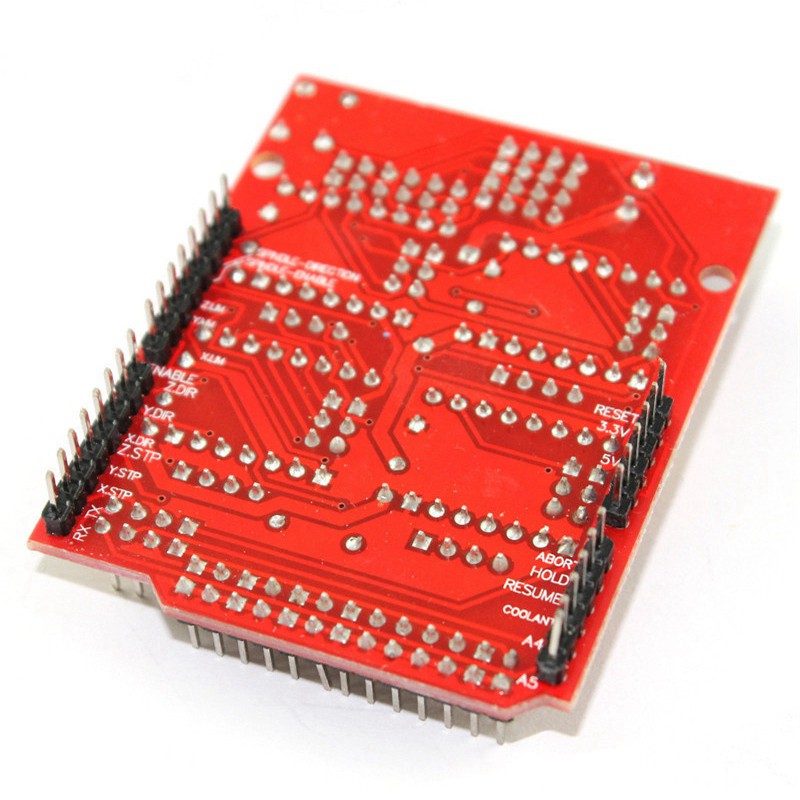

CNC Shield Board
Version: 3.0
Voltage: DC 12~36 V
Colour: As shown
Material: PCB
Size: 6.8x5.3x1.8cm
Package Contents:
1 * v3 engraving machine expansion board
4 * DRV8825 drivers
4 * heat sinks
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
