Bộ kích wifi Bluetooth 3.0 SPP + BLE4.2 SPP-C 33 chế độ tương thích với HC-05 / HC-06
0 Đánh Giá
3 Đã Bán
128
34.807 đ
Quốc tế
thứ bảy 26/06/2021 lúc 08:13 CH

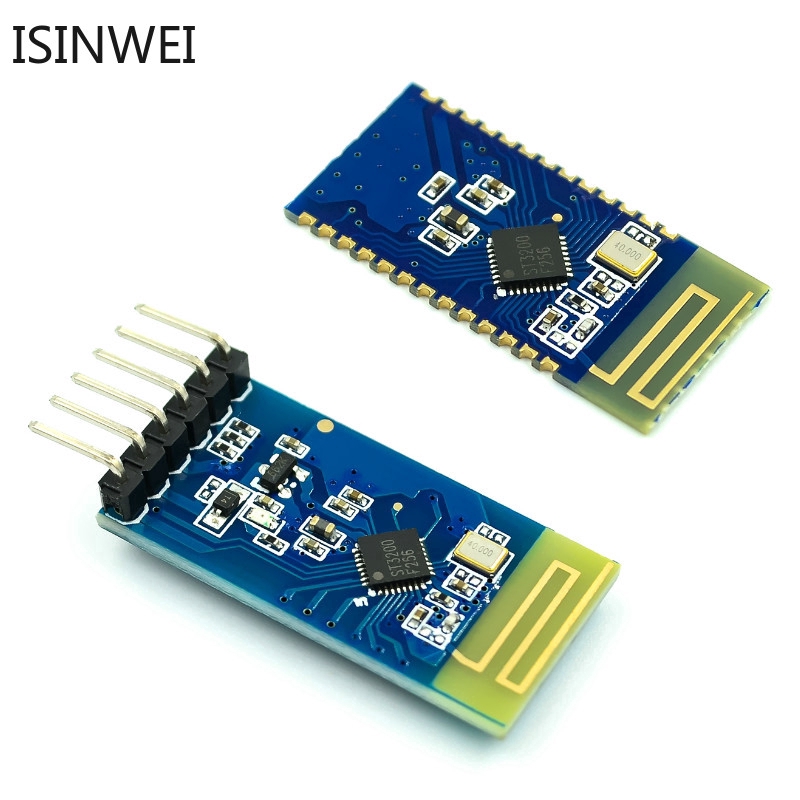

JDY-33 Dual Mode Bluetooth Slave Bluetooth 3.0 SPP + BLE4.2 SPP-C Compatible with HC-05 / HC-06
Product introduction and application
JDY-33 Bluetooth is based on Bluetooth 3.0 SPP + BLE design, which can support Windows, Linux, android, IOS data transmission, working frequency 2.4GHZ, modulation mode GFSK, maximum transmission power 6db, maximum transmission distance 30 meters, support users through AT Command to modify the device name, baud rate and other instructions, convenient and quick to use and flexible.
The advantages of JDY-33 are very obvious. It supports SPP and computer Bluetooth communication, supports mobile APP or WeChat applet, and can also support communication with JDY-18 master and slave.
Applications
JDY-33 is a classic Bluetooth + BLE dual-mode Bluetooth, which can communicate with computers (desktops, laptops), mobile phones (android), and IOS that support Bluetooth. Applicable to
◆ Bluetooth POS
◆ Thermal printer
◆ Smart home control
◆ Automotive ODB Testing Equipment
◆ Application of various Bluetooth transparent products
◆ Shared charging treasure, shared weighing scale
Detailed module parameters
Model: JDY-33
Working frequency: 2.4GHZ
Communication interface: UART
Working voltage: 1.8-3.6V (3.3V recommended)
Working temperature: -40 ℃-80 ℃
Antenna: Built-in PCB antenna
Transmission distance: 30 meters
Master-slave support: slave

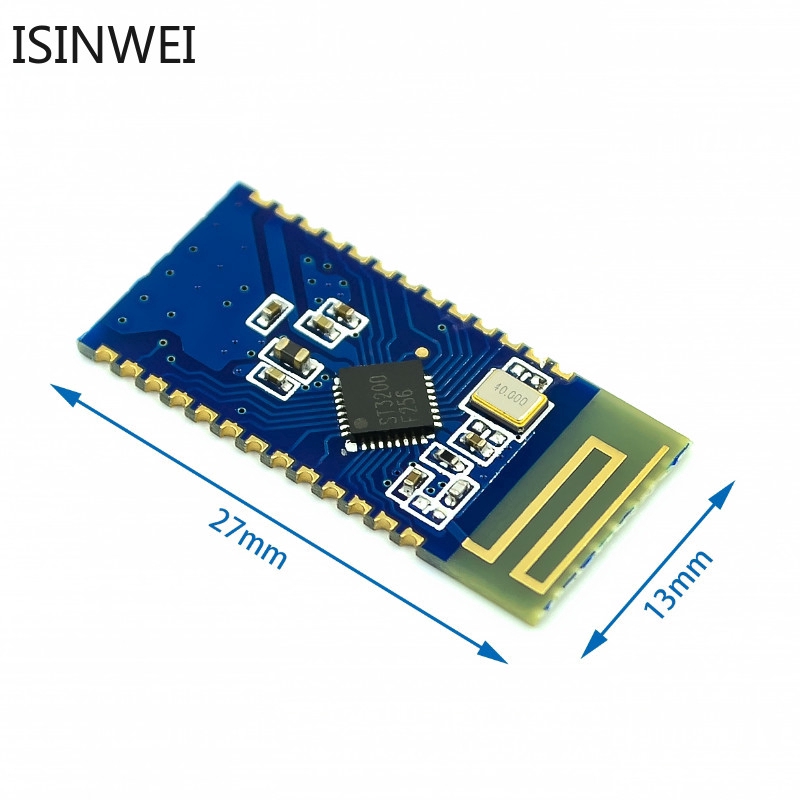

Module size: 26.7 * 13 * 1.7 mm (length, width, height)
Bluetooth version: Bluetooth 3.0 SPP + BLE4.2
SMT welding temperature: <260 ℃
Working current: 6.5mA
Deep sleep current: <10uA
Transmitting power: 6db (maximum)
Receiving sensitivity: -96dbm
SPP maximum throughput: 16K bytes / s (android, windows)
When connecting with android and computer Bluetooth, the communication speed can reach 16k byte per second, and there is no packet loss (support serial port to send and receive data continuously)
BLE: 4K bytes / s (android, IOS)
The communication speed is 4K per second when BLE is connected with IOS or Android
We deal in wholesale and retail
Feel free to contact us
#JDY-33 #Dual #mode #Bluetooth #SPP #SPP-C #Bluetooth3.0 #HC-05 #HC-06 #BLE4.2
