Bộ Điều Khiển Reprap Ramps 1.4 2004 Lcd Cho Máy In 3d
0 Đánh Giá
1 Đã Bán
42
117.100 đ
Xem sản phẩm trên ShopeeQuốc tế
thứ bảy 26/06/2021 lúc 09:06 CH
ℜℜ Welcome to {buildvitbg}, your support is our greatest driving force, we will definitely give you the most comfortable shopping experience!!! ℜℜ
============================={buildvitbg}=========================
Technical support and guarantee:
And official wiki products, 100% consistent!
Power on test will be done before delivery to ensure that it can be officially used before delivery.
Product features:
1. Large screen LCD 2004 4 lines with 20 characters in each line
2. The SD card holder is integrated in the back. After the slicing file is put into the SD card, the corresponding file can be printed on the LCD.
3. The product comes with encoder, which can realize parameter adjustment and file selection and printing!
4. Plug and play on ramps, but the firmware needs to be modified to support.
Product Description:

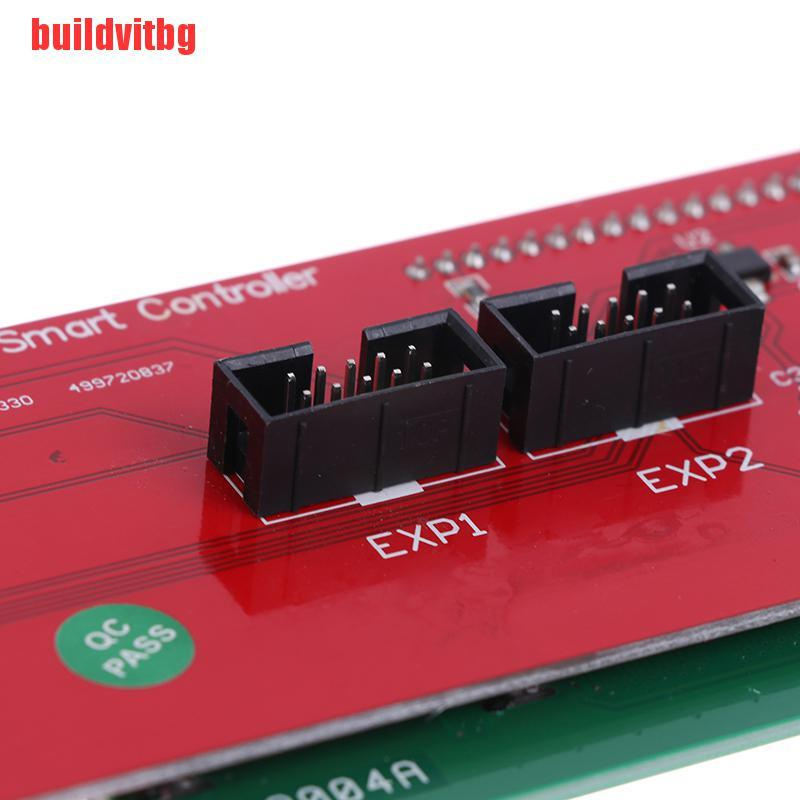

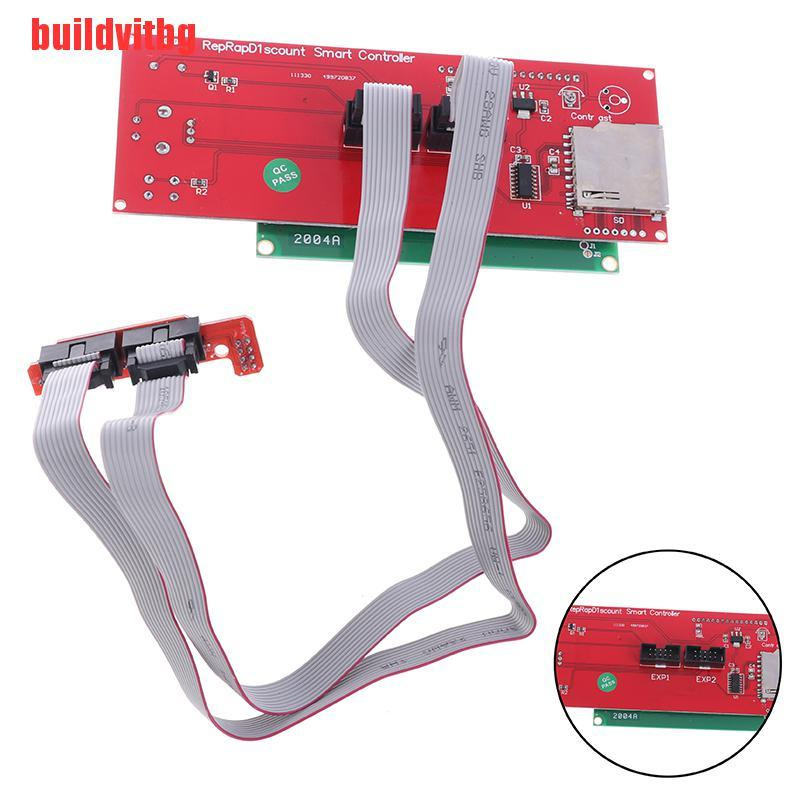

The intelligent controller consists of an SD card reader, a rotary encoder and a 20 character × 4-line LCD display. You can easily connect it to your ramps 1.4 board using the "smart adapter" included.
This panel is connected to your ramps 1.4 after you do not need your computer, your SD card intelligent controller power supply. Further all operations, such as calibration, axis movement can be done only with the rotary encoder's intelligent controller. There is no need for computer to print 3D design, just use G code design to store on SD card
Ramps is plug and play, but the firmware needs to be modified to support it. Take Marlin as an example, uncomment the two lines that have been annotated, compile and download them to the board, and you can use them.
Search the Configuration.h file
//#define REPRAP_DISCOUNT_SMART_CONTROLLER
Delete the first two slashes and change to
#define REPRAP_DISCOUNT_SMART_CONTROLLER
Recompile and download to use

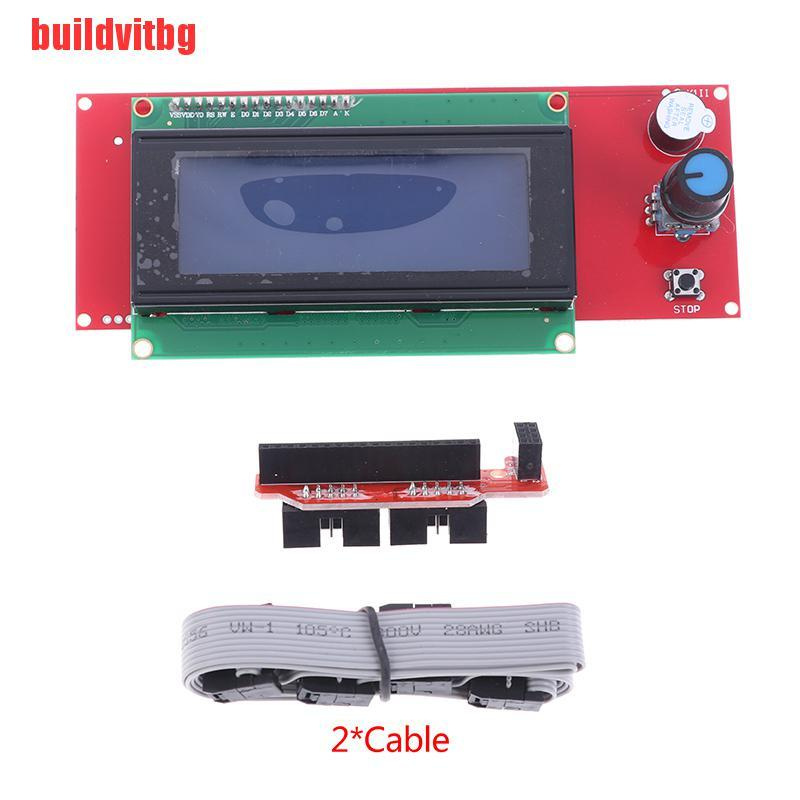

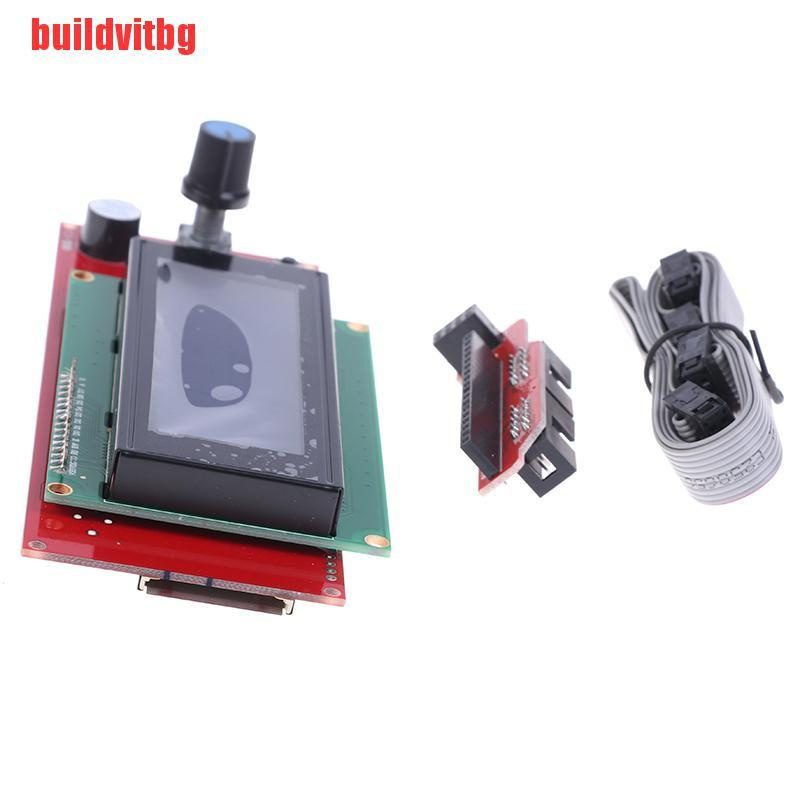

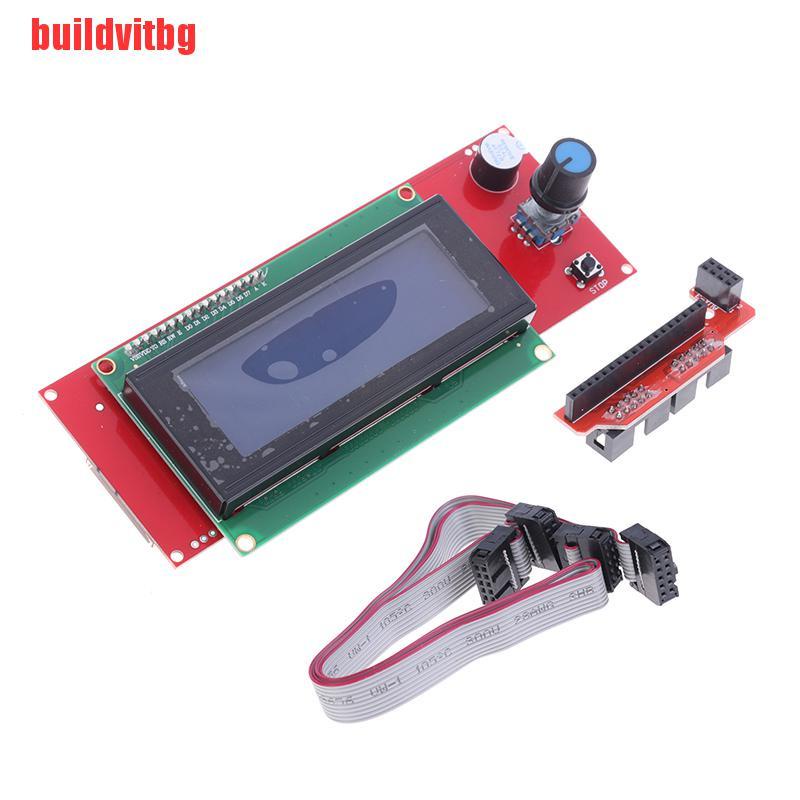

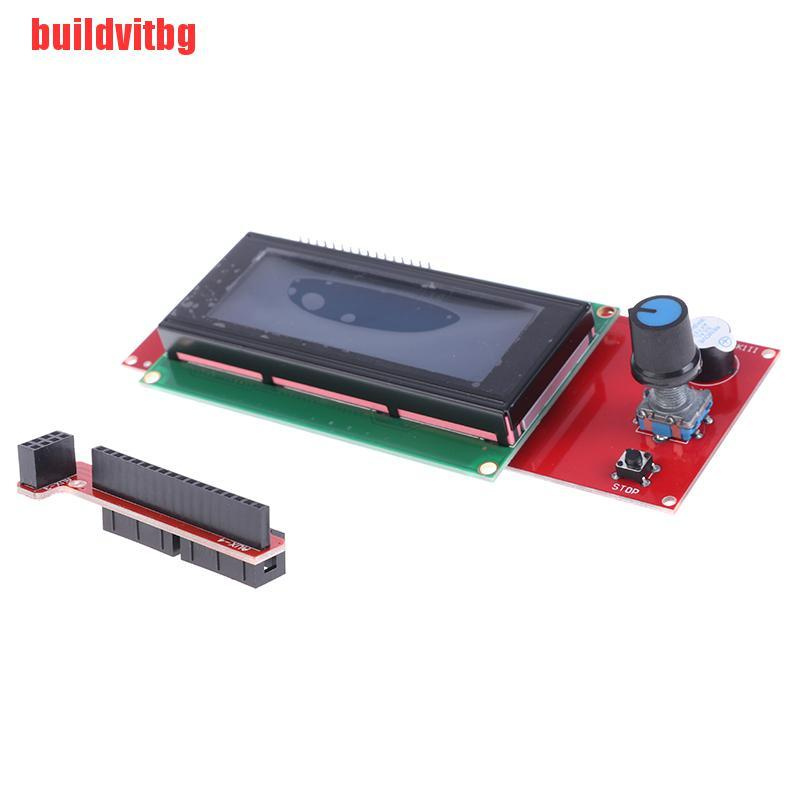

The ramps lcd2004 suite includes the following:
1Pc RAMPS LCD2004 motherboard

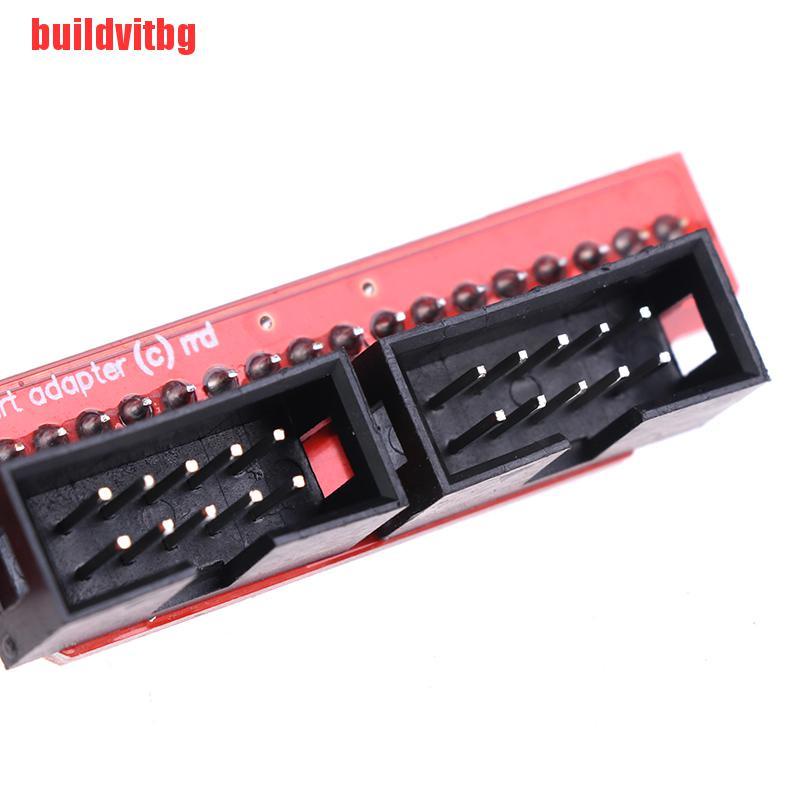

1Pc L-shaped adapter plate
2Pcs FC cables
Note: SD card can be inserted for offline printing. Please provide SD card by yourself. This product does not contain it!
