Bộ dây đèn LED 540mm 24" cho màn hình LCD
0 Đánh Giá
Đã Bán 0
66
140.900 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
thứ năm 29/07/2021 lúc 10:46 SA
MÔ TẢ SẢN PHẨM

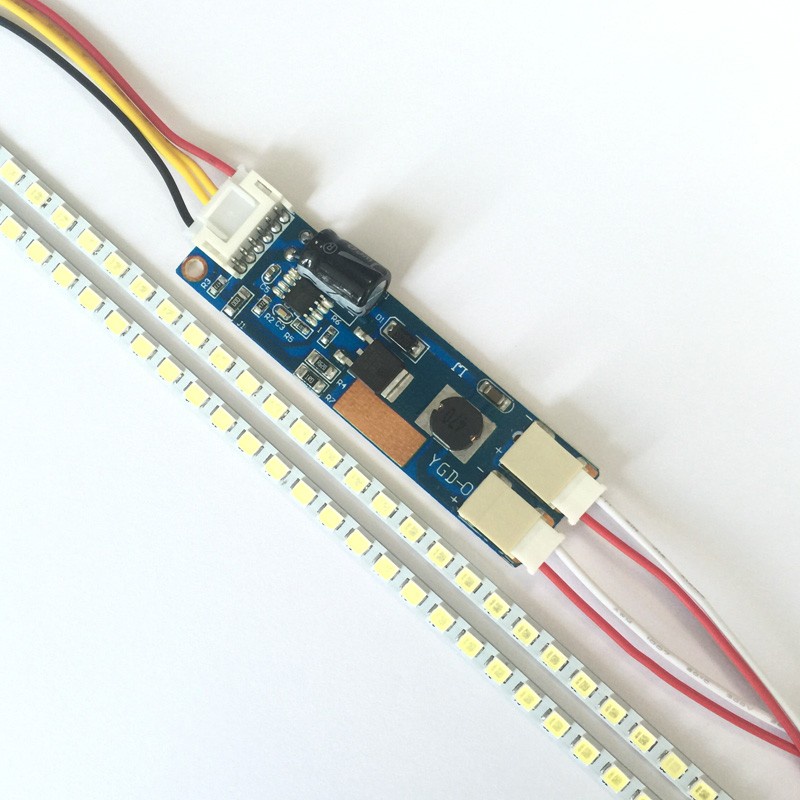

Features:
*540mmbacklight strip kit for updating 24” LED CCFL LCD screen to LED monitor
*Adjustable light brightness, if the second yellow wire (adjusting brightness) is not connected, the max brightness of light will show out
*Perfect design for screen and high brightness
*Environment friendly and energy saving
*LED particles closely, high-density arrangement, import highlight LED strips
*Long service life up to100000 hours
*Easy to install, can be attached to the display original LCD groove or elsewhere with the help of double-sided adhesive
*Red wire for positive pole, black wire for negative pole, the first yellow wire for ON/OFF, and the second yellow wire for adjusting brightness
Specifications:
*Material: Fiberglass Panels
*Input: DC 10-30V
*Power: 8w
*Driver Board Dimension: 7*2cm/2.8*0.8 inches (Approx.)
*LED Strip Dimension: 540*4*2mm/21.3*0.2*0.1 inches (Approx.)
*Weight: 50g (Approx.)
Cables Function:
*VIN/VCC (Red Cable for Positive Pole): Voltage (10~30V)
*ENA (the first Yellow Cable): On(2.5~5V)/Off(0~2.5V)
*DIM/ADJ (the second Yellow Cable): Adjusting Brightness (0~5V)
*GND (Black Cable for Negative Pole): Connecting Ground
Package Contents:
2*LED Strips
1*Driver Board
1*Cable
Note:The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
