Bộ Chuyển Đổi Usb-C Sang Hdmi Hub 4k Kèm Giắc Cắm 3.5mm & Pd Cho Macbook Pro
0 Đánh Giá
Đã Bán 0
98
803.000 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
thứ sáu 30/04/2021 lúc 01:48 CH
MÔ TẢ SẢN PHẨM

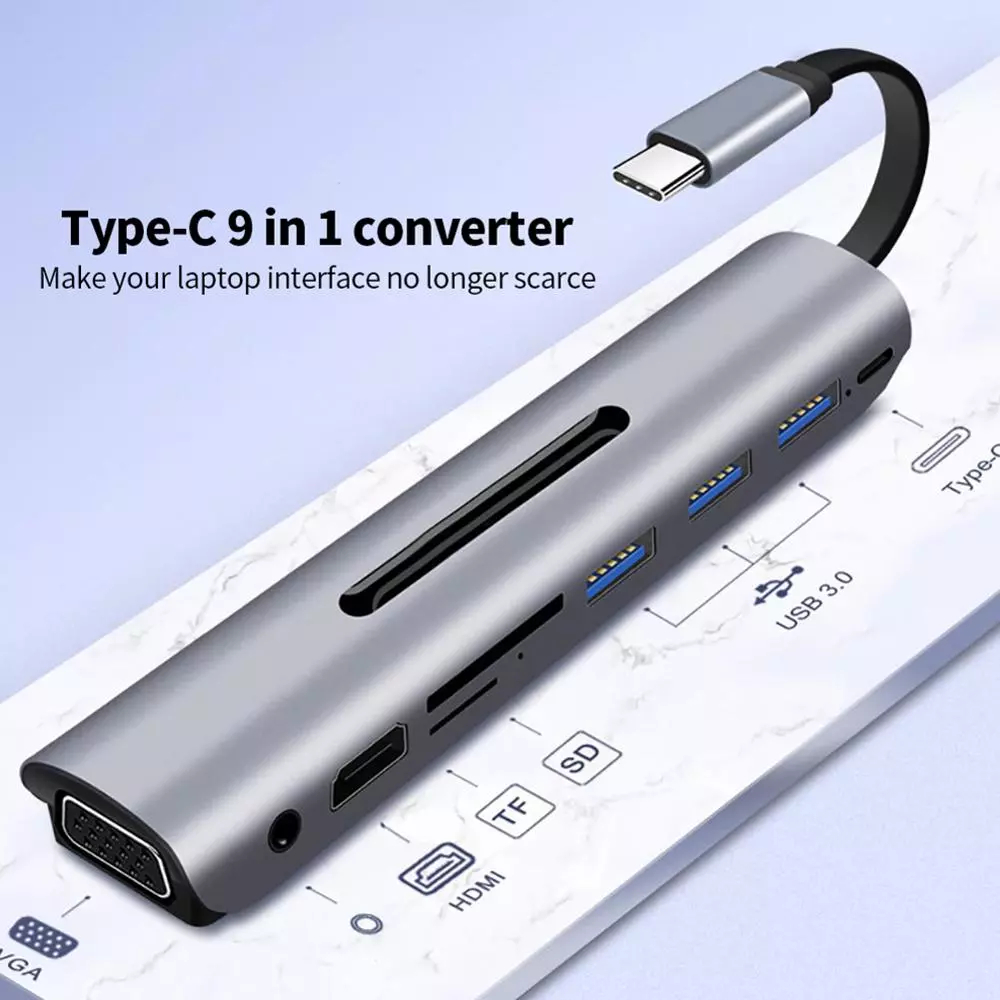

What Interface does this multiport adapter contain:
1 x USB 3.1 type-c Male, Does support hot-swap, connecting to your USB-C DP alternate mode supportable laptops.
1 x HDMI v1.4 Female, max support to display resolution to 4k 3840x2160,30Hz individually.
1 x VGA 15pin Female, max support to display resolution to 1920x1080 with 60Hz.

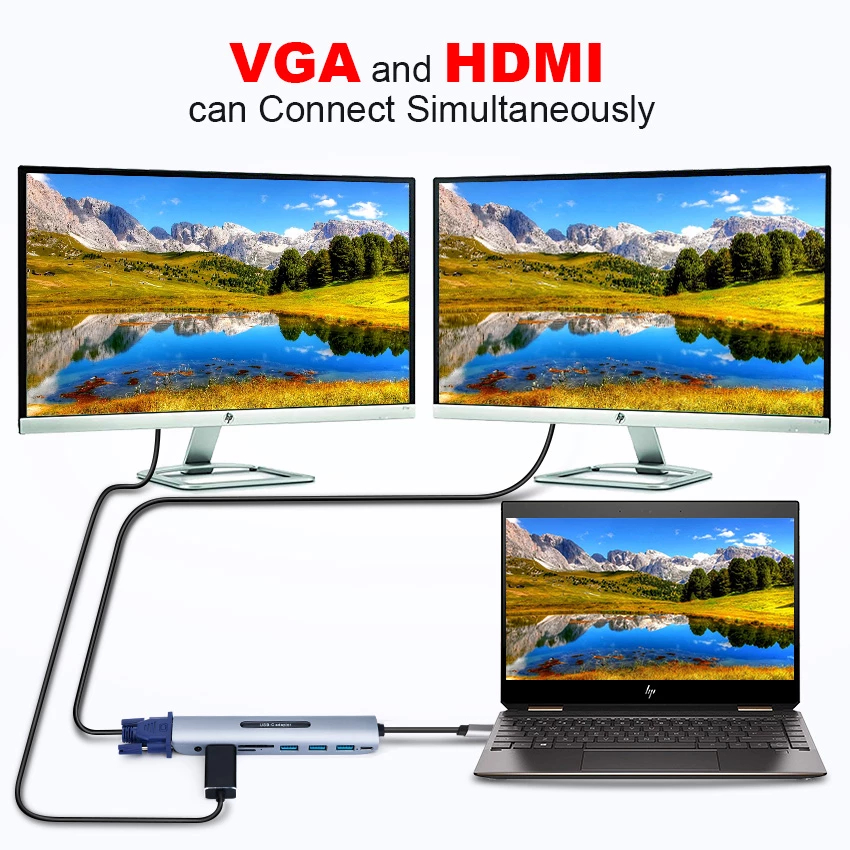

(the interfaces for HDMI and VGA can be connected Simultaneously, but only supports to display same contents in your external monitors)

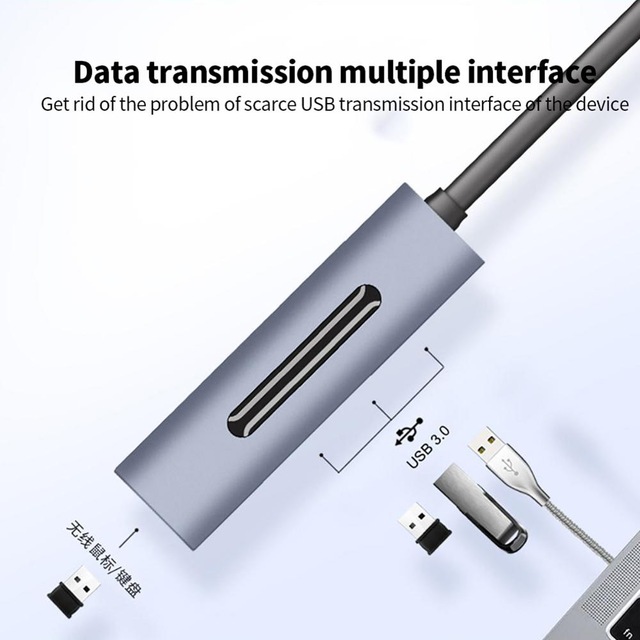

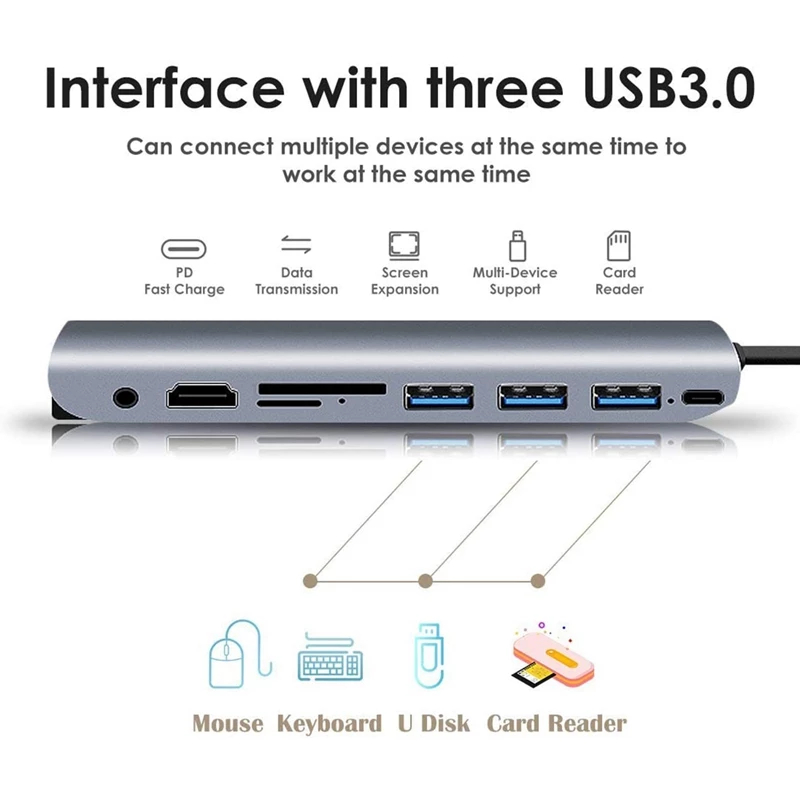

3 x USB 3.0 Female, max support data transmissions rate to 5Gbps, backward compatible with USB 2.0 and USB 1.1.
1 x Secure Digital Memory Card, with USB3.0 transmissions rate(For reference)
1 x TF Card, with USB3.0 transmissions rate(For reference)
(TF and secure digital memory card can use simultaneously)
1 x Audio 3.5mm Female Jack, connect the audio cable to external speakers get sound. (Only VGA connecting to VGA displays, you can connect from adapter's 3.5mm audio jack to output sound)
1 x USB-C PD Power Delivery Female Port, support to charge your laptop when you are using.
Important Notes:
1.All your connected devices must support "DisplayPort Alternate Mode" (DP Alt Mode) via USB-C, if not compatible with devices which do not support the protocol of DP Alt Mode.
2.The USB-C female port can only be used for charging, can not be used for data
3.If you connect the interface for HDMI individually, it can max support to output 3840x2160, 4k resolution, this means you should have 4k cable, 4k source, and 4k monitor, if you connect the interfaces for HDMI and VGA together, it can max support 1920x1080 video to output.
4.If you connect the interfaces for HDMI and VGA together, the interfaces for HDMI and VGA can only show same view(content), it can not let the displays for HDMI and VGA to show different views.
5.VGA can not transmit audio to your monitors, please connect from adapter's 3.5mm audio jack to your external speakers to output sound. For HDMI connecting, if you connect from our adapter to your external monitors for HDMI with audio out and speakers, such as HDTVs and other audio monitors, audio and video will be transmitted together to your external monitors, but your monitors without audio and speakers, please connect from your input device's audio jack to your external speakers to output sound
6.When the signal can not be transmitted, please check whether the interfaces on both ends are tightened, or try to make USB-c interface flip and then insert
7.Regarding its compatibility towards smartphone and tablet, please be prudent, please contact with us before buy
Note:
Due to the screen difference, the color may be a little different from what you expect, please allow it
