MÔ TẢ SẢN PHẨM

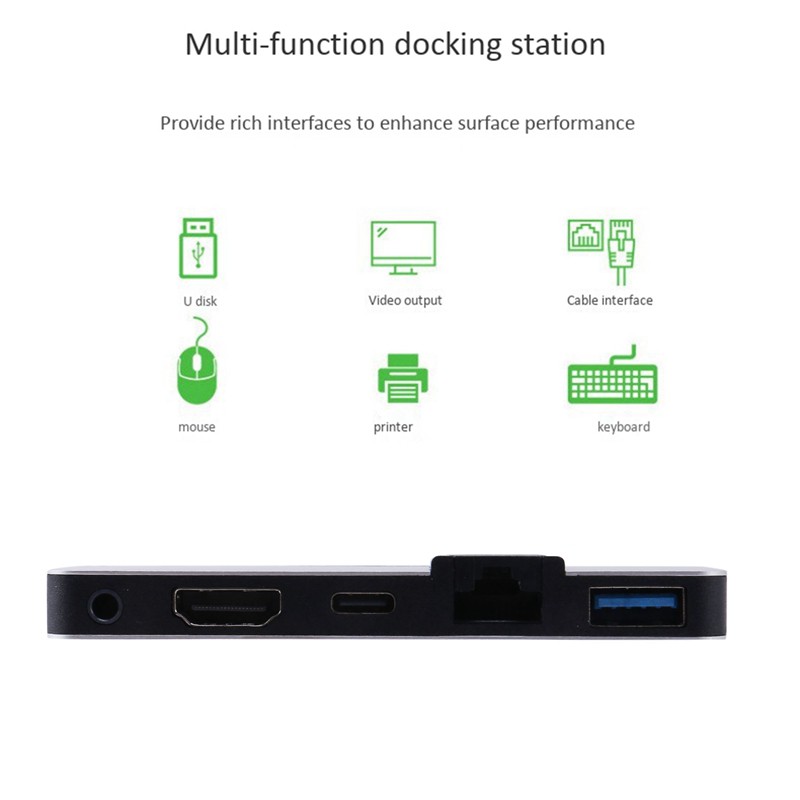

SG02 is a video and data transmission adapter dedicated to SURFACE GO. It has a small and beautiful appearance and data transmission. The HDMI output terminal supports up to 3840X2160P/30HZ video resolution, output equipment high-definition display, LCD TV, etc.
The VL102+GL3510+PS176 chip is used. The highest resolution is 3840X2160P/30HZ (requires the support of the display host), and also supports 1080p/23.98/24/50/59.94/60HZ, 1080i/50/59.94/60HZ, 720p/ 50/59.94/60HZ etc.

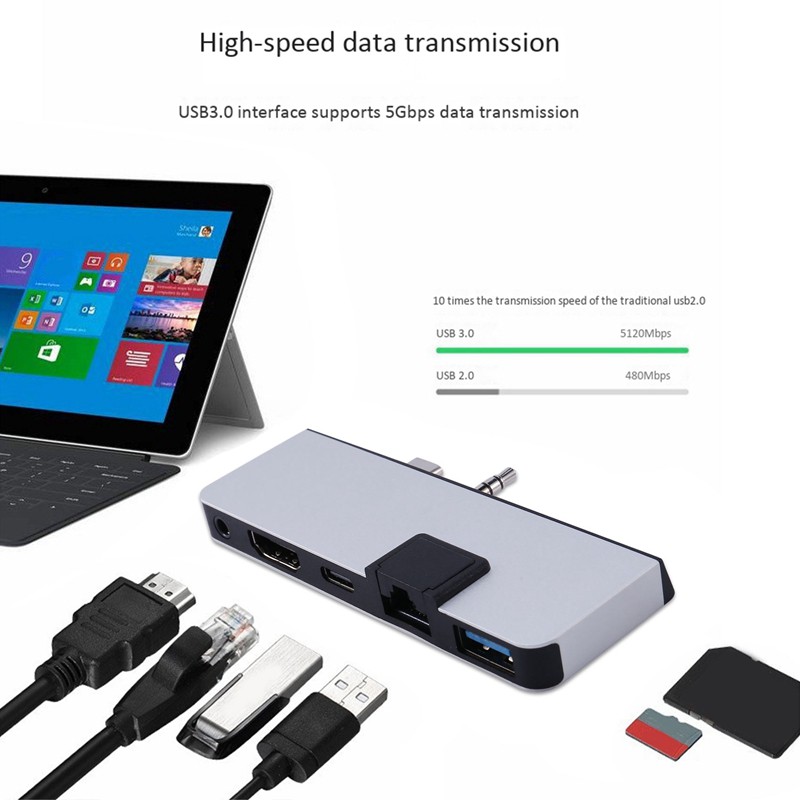

Support HDCP2.2. USB3.0A/F supports a maximum current of 0.9A and a maximum rate of 5Gbps. Backward compatible with USB2.0/1.1. Comply with USB-C interface specification. USB-C/F supports PD3.0 and supports maximum input power of 24W
Built-in conversion chip, plug and play. Working temperature: 0-70Celsius. Operating humidity: 10% to 85% RH (non-condensing). Storage temperature: -10-70 Celsius. Storage humidity: 5% to 90% RH (non-condensing)
Instructions and precautions
1. Confirm whether the monitor resolution can meet the corresponding requirements before use.
2. Insert the HDMI M/M cable into the HDMI input port of the monitor, and connect one end to the SG01 HDMI interface.
3. Insert the SG01 into the USB-C output port of SURFACE GO and the 3.5 headphone jack.
4. At this time, SURFACE GO user interface will be displayed on the monitor
5. Insert the U disk into USB3.0A/F to realize the U disk data connection
6. Insert the charger to realize the charging function
7. When using, make sure that the PIN pin in the product is not sag or bent, so as not to affect the insertion
8. Be careful not to splash liquid into the connector during use, so as not to affect its performance
9. The product should be placed in a dry place, not in a humid environment
colour:Sier
Material:Aluminum alloy
size:10.5 x 3.1 x 0.9cm
Package Contents:
1 x Docking station
Only the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
