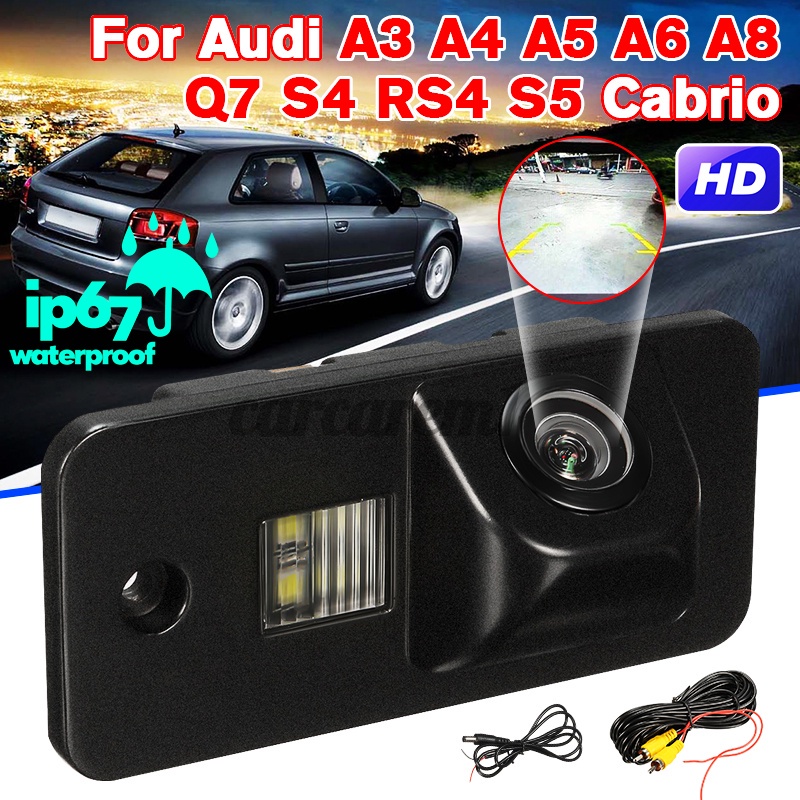

Bộ camera sau cho xe Audi A3 A4 A5 A6 1 CCD HD chống nước
0 Đánh Giá
Đã Bán 0
49
158.000 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
thứ năm 30/12/2021 lúc 11:05 CH
MÔ TẢ SẢN PHẨM
▲ Specification
Color:Black
Video Color: Colorful

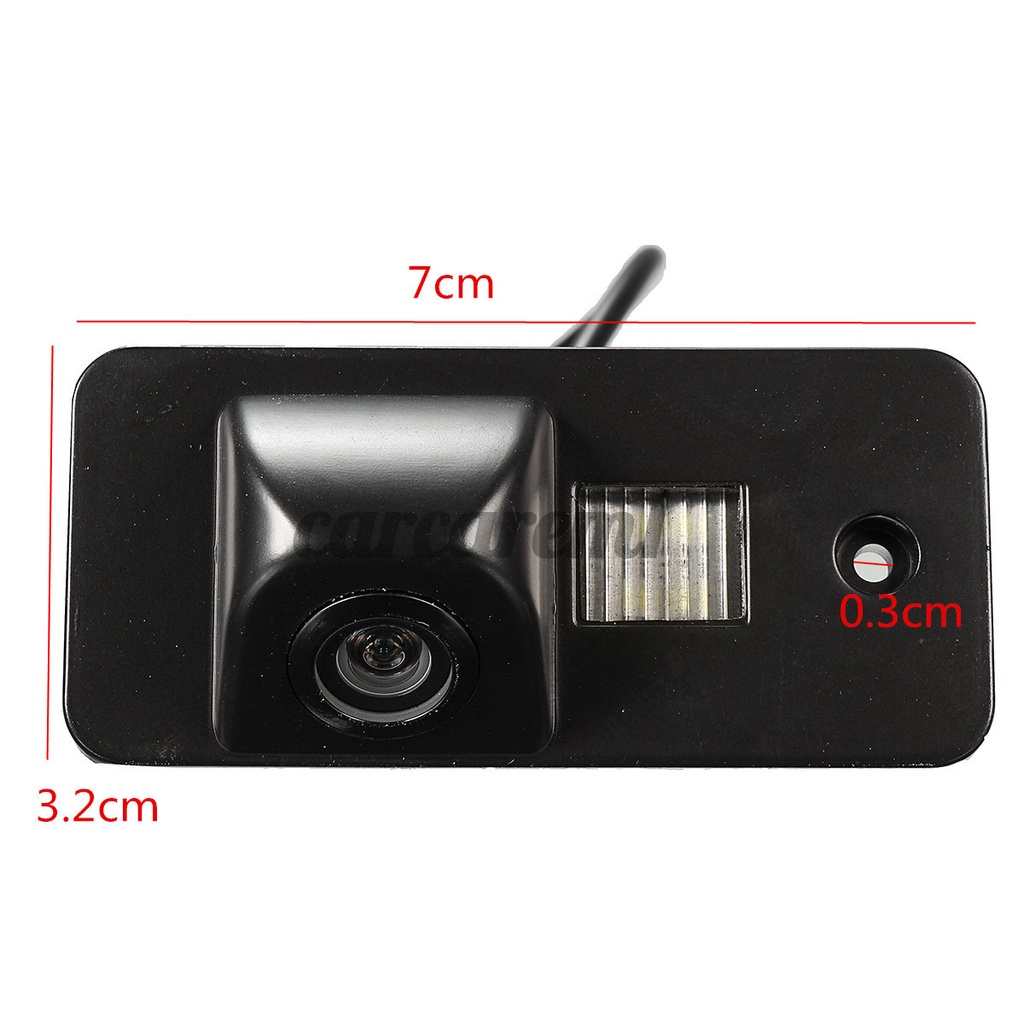

Size: Length:7cm Width: 3.2cm Hole Diameter: 0.3cm
Sensor:CCD
Effective Pixels: 720*540
Resolution: 520TV lines

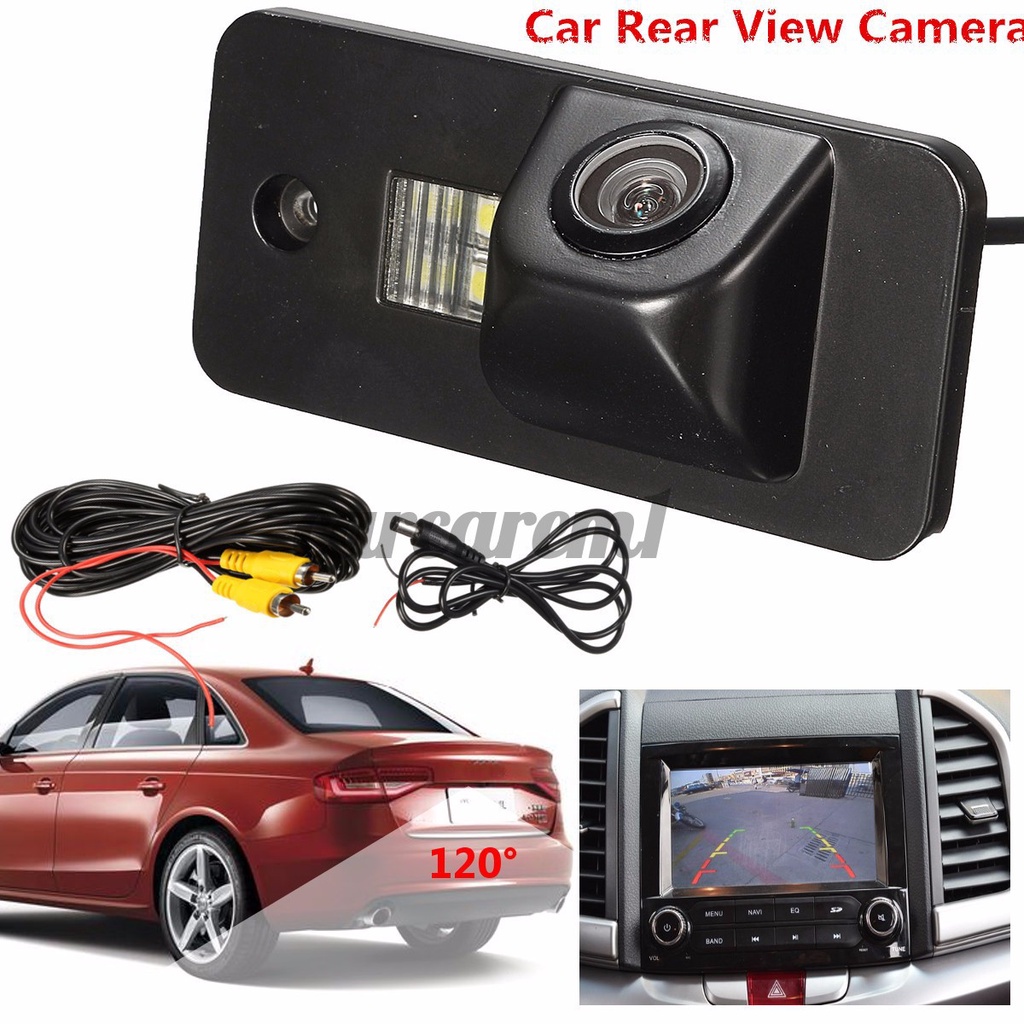

Lens Angle: 120°
Working Power : AC 12V
Operation Temperature: -20°C+60°C RH95% Max
Storage Temperature: -30°C+60°C RH95% Max
Current Consumption: No more 300mA
Waterproof:IP67-68
Video Signal Cable Length：6m，
Power Cable lENGHT :1m
Fit:
For Audi A3 2004-2013
For Audi A4 2004-2013
For Audi A5 2004-2013
For Audi A6 2004-2013
For Audi A8 2004-2013
For Audi Q7 2003-2009
For Audi S4 2003-2009
For Audi RS4 2006-2008
For Audi S5 2006-2008
For Audi Cabrio 2003-2009
▲ Installation Guide:
1. Take out your stock license plate light at the back of your car
2. Fix the camera to where the stock license plate light was
3. Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power
4. Connect the power of the camera to your reverse lights - red wire to positive and black wire to negative
5. Connect the video cable of the camera to the extension cord
6. Connect the extension cord to your car monitor

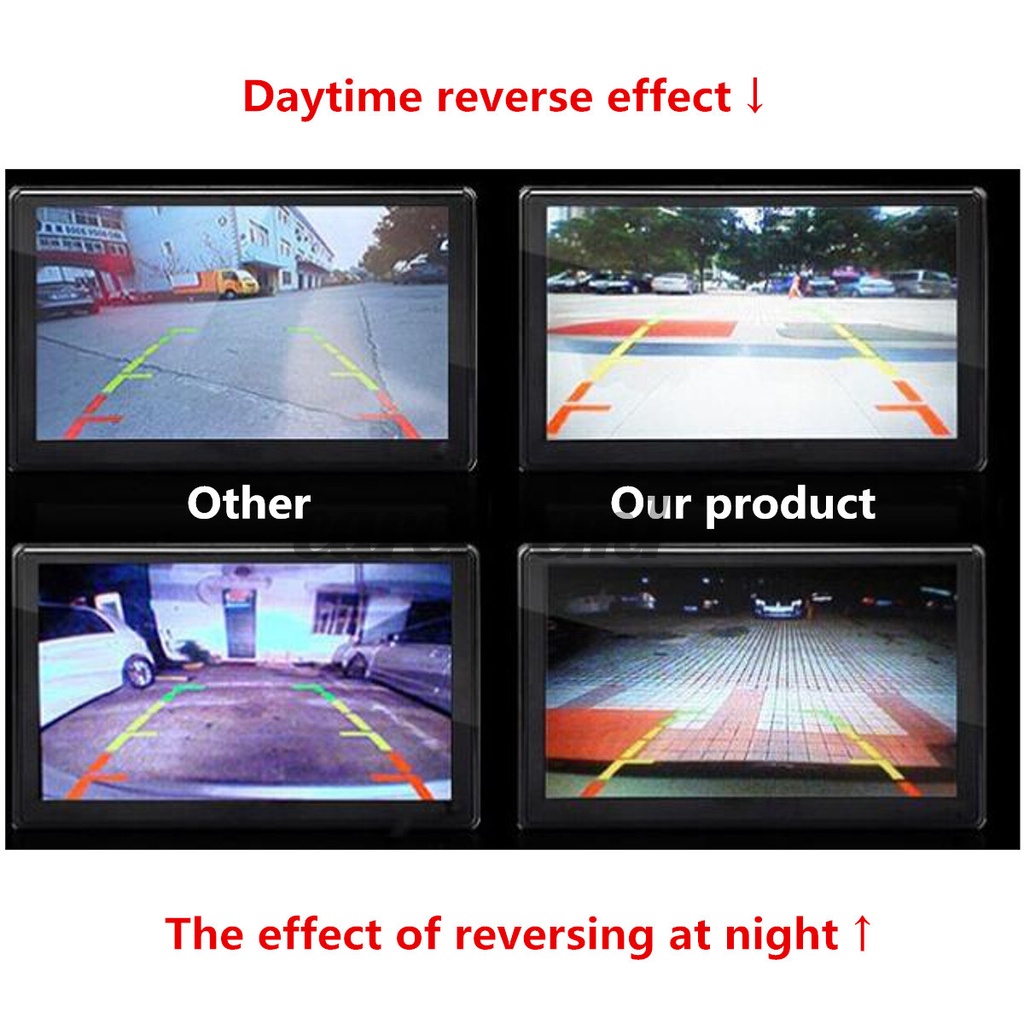

7. You will see the images when your car is in reverse shift.
▲ Feature
1.Condition:100% Brand new and high quality.
2.With waterproof function, durable
3.Easy install and simple operation
4.High clear CCD camera read out, high-definition and wide viewing angles
5.Ensure your safe driving, to avoid any vehicle accidents
6.Fit Ford Transit Connect
7.Guide line are included
▲ Note
1.We provide clear pictures, measurements where possible. Please check as much as possible to make sure the item is the one that you need.
2. Please allow 0.5-1 inch difference due to manual measurement.(1 inch=2.54cm)
3.The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.
4.Instruction is not included.Professional Installation Is Highly Recommended!

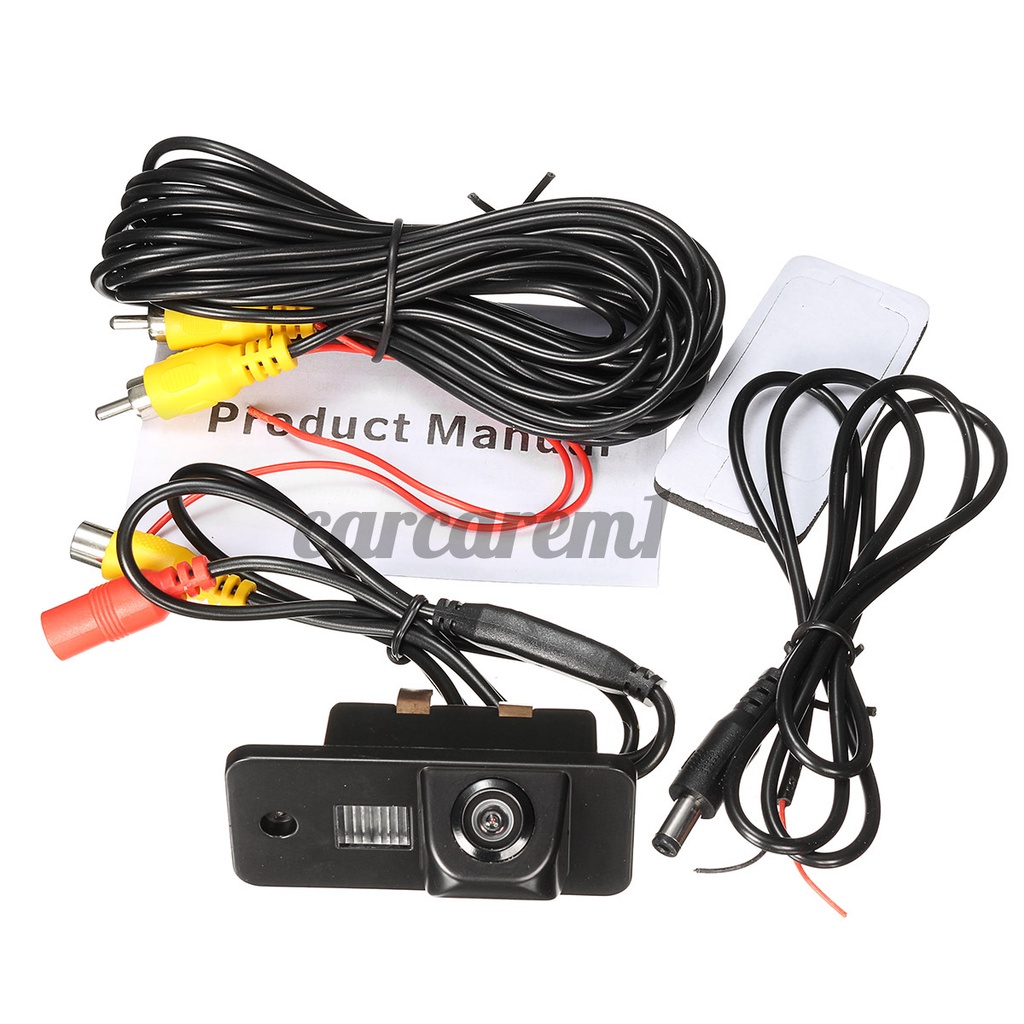

▲ Package included

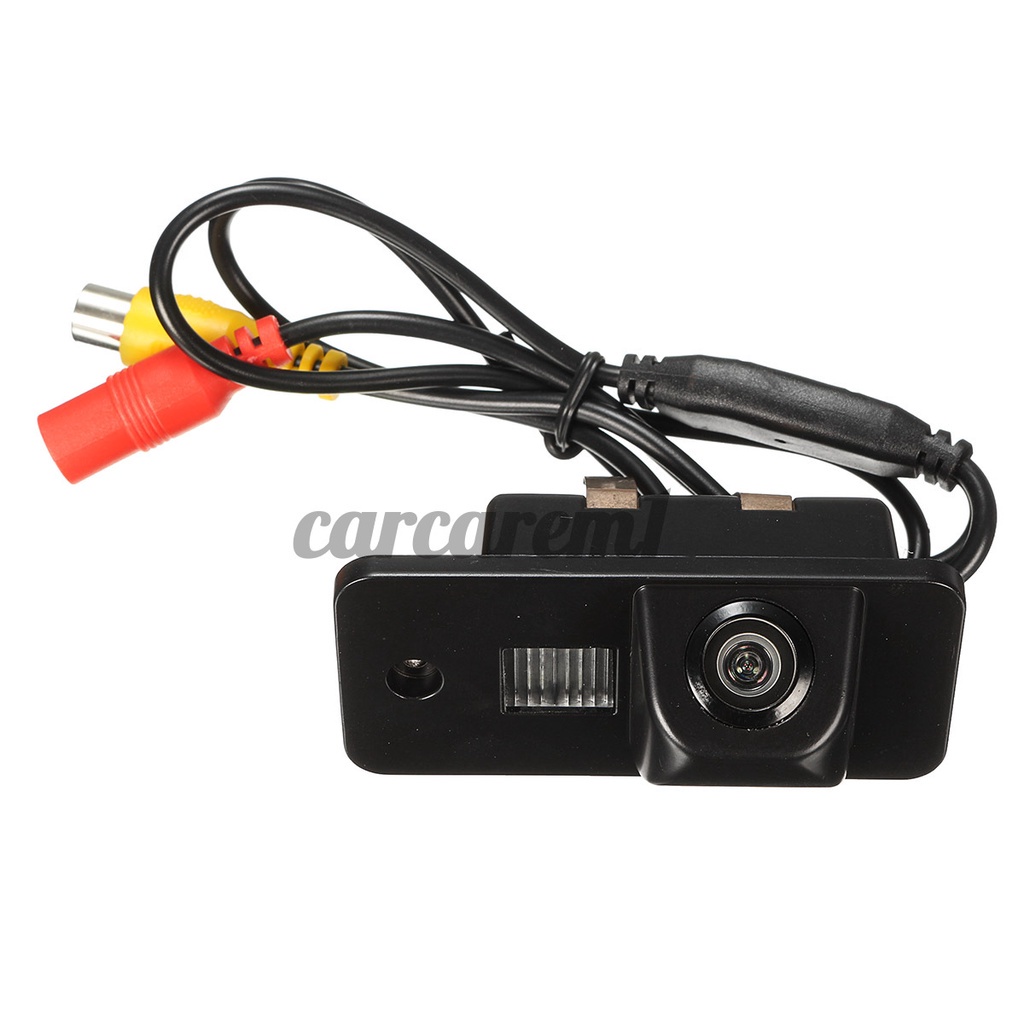

1 x CCD Car Rear View Camera
1 x Video cable
1 x Power supply cable
