Bảng Mạch Phát Triển Đèn Led Màu A05 24-bit Ws2812 5050 Rgb
1 Đánh Giá
Đã Bán 6
96
80.166₫
Mua ngay trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
Cập nhật: thứ tư 23/09/2026 lúc 04:27 SA
LỊCH SỬ GIÁ SẢN PHẨM
Đang tải lịch sử giá...
SO SÁNH GIÁ
MÔ TẢ SẢN PHẨM
product description:

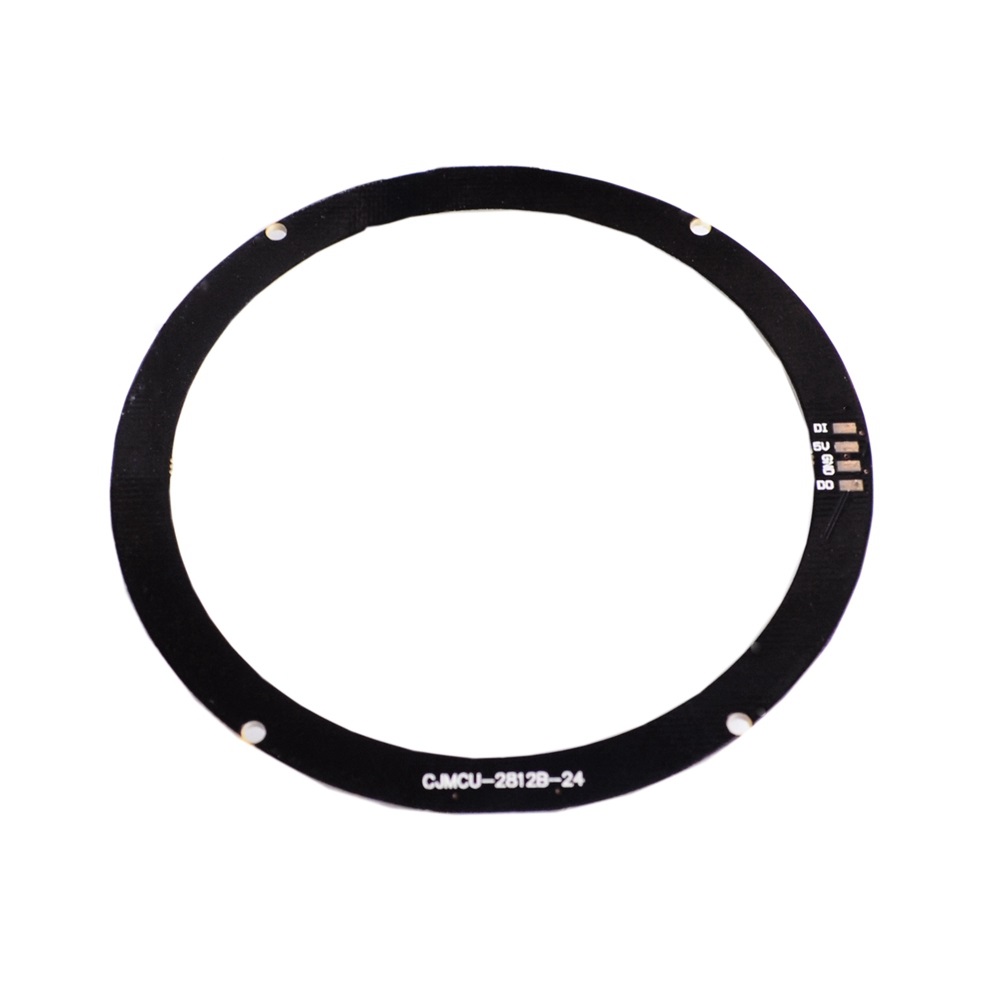

The round black shape is clear at a glance! 24 ultra-bright smart LED NeoPixels are arranged on a circular PCB with an 86mm outer diameter. These ring-shaped RGB lights can be simply cascaded from one output pin to another input pin (DI-->DO). By cascading this way, you can control as many LED lights as possible using only one single-chip microcomputer pin. Each LED integrates a driver chip inside, making our LEDs smart and addressable. Each one has ~18mA constant current drive, so the LED color will be very consistent, even if the voltage changes, it does not require external resistors and current limiting resistors make the overall design of the RGB light ring slim, as you can see So simple and easy to use, use a 5V (working current 4-7V) power supply to drive this RGB light ring.
Specifications:
Product size (diameter): 86mm
Net weight: 8g
Voltage: DC4-7V power supply
Communication interface: single wire communication
LED driver chip WS2812B (integrated in the LED)
Note:
Due to manual measurement, please allow 1-3mm different.
Due to different displays and different lighting, the image may not reflect the actual colors of the project.
Thank you for your understanding.
When purchasing electronic components, please have certain electronic basic knowledge of the module. Most modules only provide descriptions or send materials. There is no technical consulting support. Please be careful to shoot for beginners.
The round black shape is clear at a glance! 24 ultra-bright smart LED NeoPixels are arranged on a circular PCB with an 86mm outer diameter. These ring-shaped RGB lights can be simply cascaded from one output pin to another input pin (DI-->DO). By cascading this way, you can control as many LED lights as possible using only one single-chip microcomputer pin. Each LED integrates a driver chip inside, making our LEDs smart and addressable. Each one has ~18mA constant current drive, so the LED color will be very consistent, even if the voltage changes, it does not require external resistors and current limiting resistors make the overall design of the RGB light ring slim, as you can see So simple and easy to use, use a 5V (working current 4-7V) power supply to drive this RGB light ring.
Specifications:
Product size (diameter): 86mm
Net weight: 8g
Voltage: DC4-7V power supply
Communication interface: single wire communication
LED driver chip WS2812B (integrated in the LED)
Note:
Due to manual measurement, please allow 1-3mm different.
Due to different displays and different lighting, the image may not reflect the actual colors of the project.
Thank you for your understanding.
When purchasing electronic components, please have certain electronic basic knowledge of the module. Most modules only provide descriptions or send materials. There is no technical consulting support. Please be careful to shoot for beginners.
