MÔ TẢ SẢN PHẨM
Estimated delivery time for this product is 7-9 days

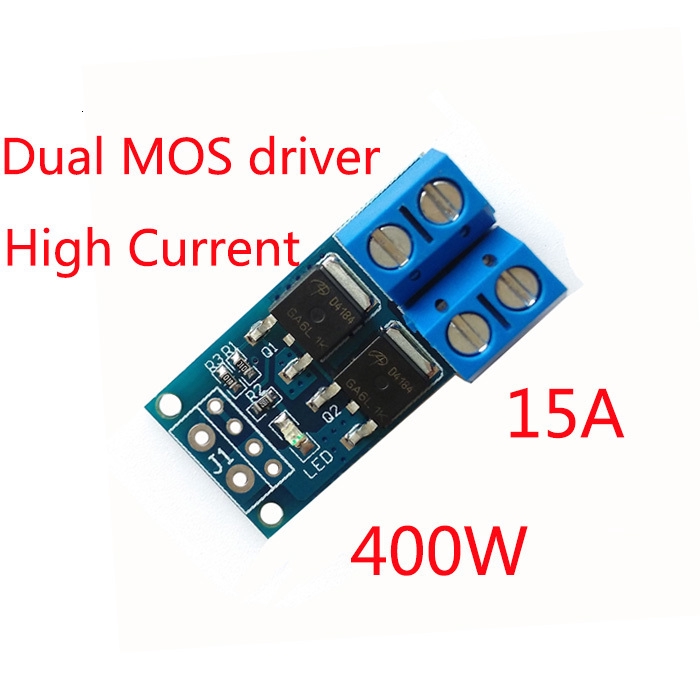

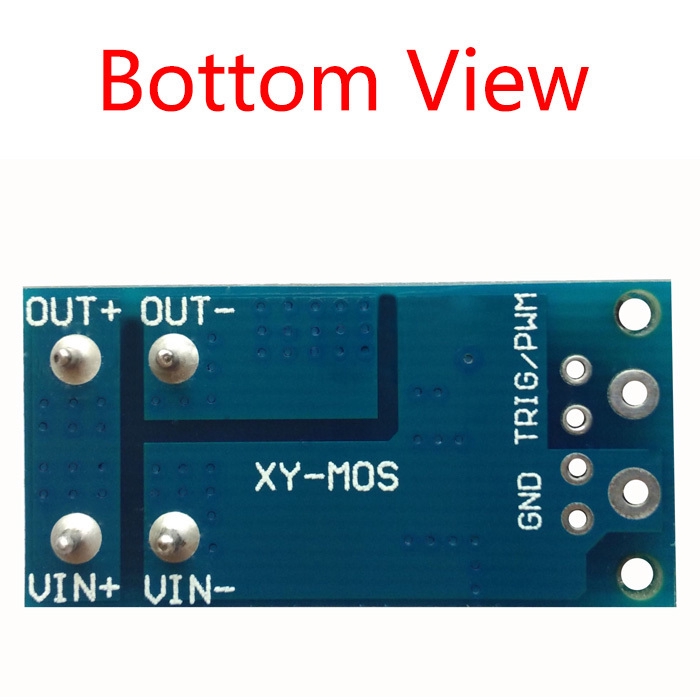

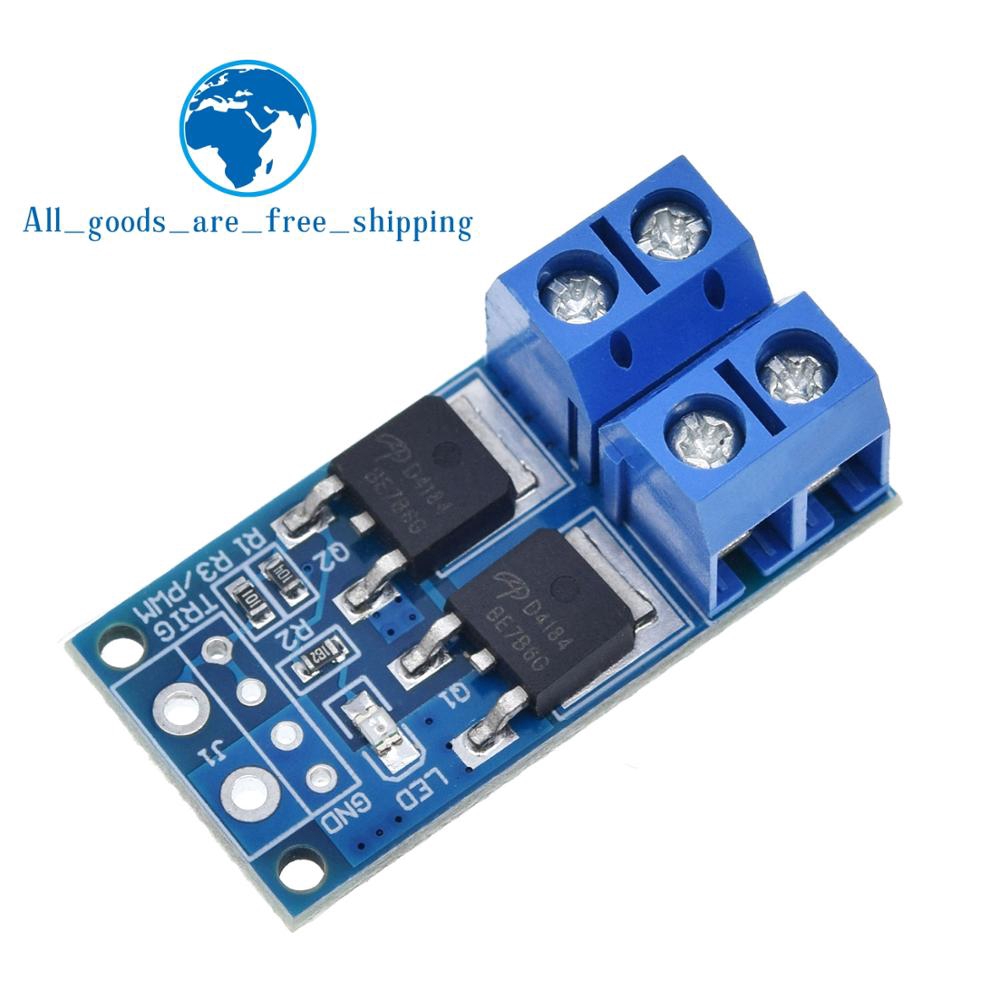

15A 400W High Power MOSFET Control Panel Control Module uses a 5V-36V DC electronic switch
Module Highlights:
1. Dual MOS parallel working power, lower internal resistance, larger current, strong power, at room temperature 15A, 400W, satisfy the use of most devices;
2. Wide voltage, support PWM;
3. Easy to achieve high capacity device control.

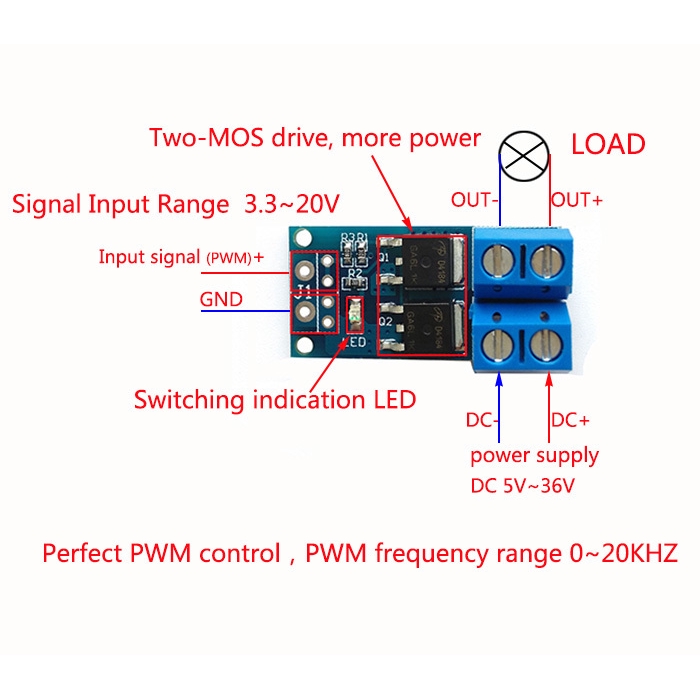

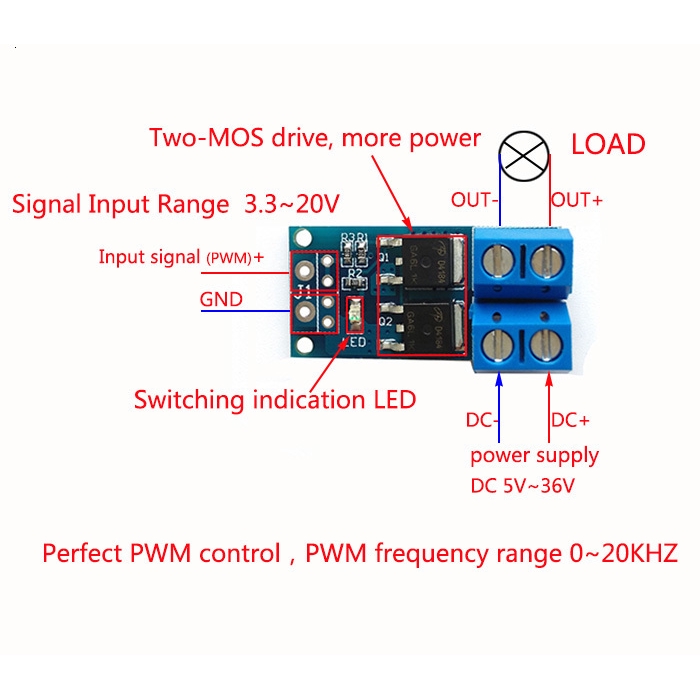

Product and application parameters:
1: Suitable Voltage: DC 5V - 36V;
2: Trigger signal source: high and low digital (DC3.3V - 20V), you can access microcontroller IO port, PLC interface, DC power supply, you can connect signal PWM, 0--20KHZ signal frequency perfectly support.
3: Output power: DC DC 5V - 36V, constant current at room temperature 15A, power 400W! Under the sub-heat dissipation condition, the maximum current can reach 30A.
4: Application: Output can control high-power devices, motors, bulbs, LEDs, DC motors, micro pumps, solenoid valves, you can enter PWM, dynamic speed control engine, the brightness of the lamp.
5: Time to use: unlimited conversion; Operating temperature: -40-85 °; Size: 3.4 * 1.7 * 1.2cm
Package includes:
1 pc x 15A 400W high power power switch switch module
Before buying:
1. All products are in stock and we will ship immediately if we get your order.
2. Please read product description, if you have any questions, don't hesitate to contact us.
After buying:
1.If you are satisfied give us 5 stars praise.
2. Please contact us first before you will give us a negative comment. We are very conscientious and will resolve the issues.
If you receive a defective product, please contact us at once with pictures or videos
#High #Power # 15A # 400W #MOS #FET #Trigger #Switch #Drive #Module #PWM #Regulator #Electronic #Switch #Control #Panel #DC # 5V-36V
