Bảng Mạch Khuếch Đại Âm Thanh Mini Dc 3v 3.7v 5v Class Ab Mono 3w
1 Đánh Giá
Đã Bán 3
89
10.920 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
thứ bảy 26/06/2021 lúc 08:26 CH
MÔ TẢ SẢN PHẨM
🎉🎉🎉 Welcome to my shop, wish you have a happy day!!!

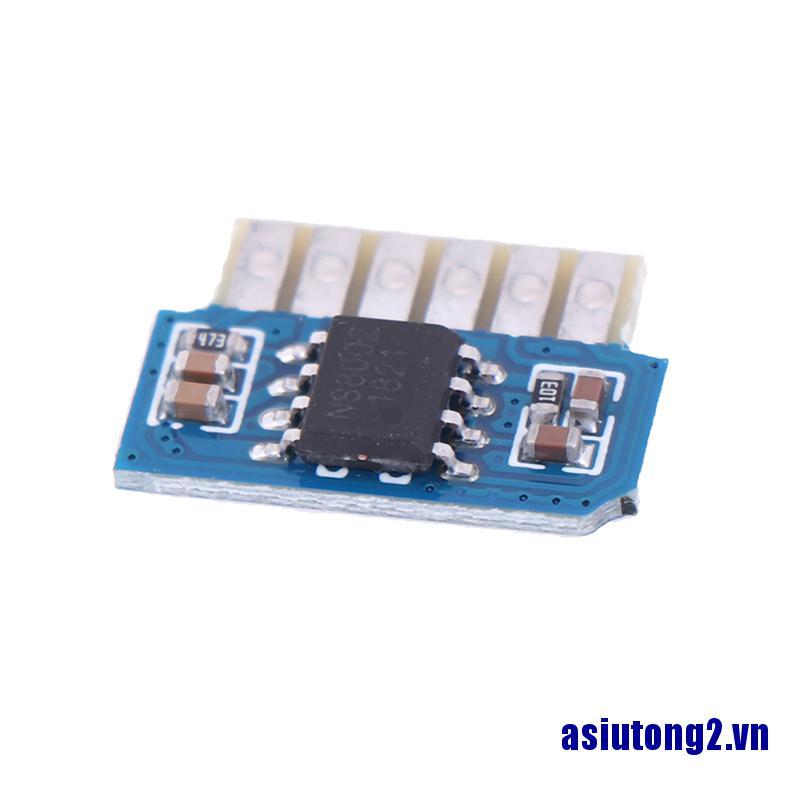

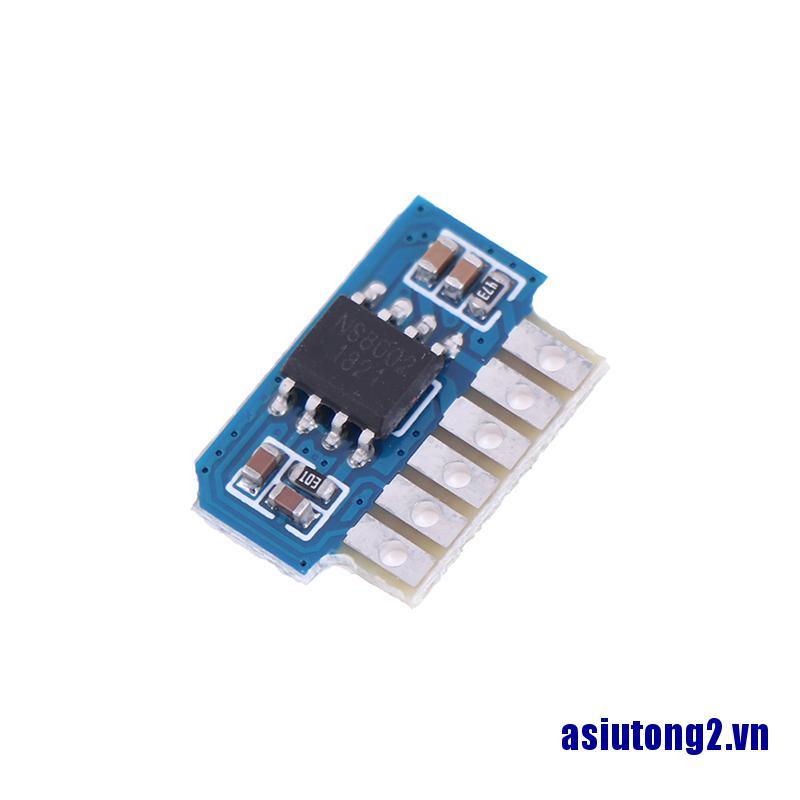

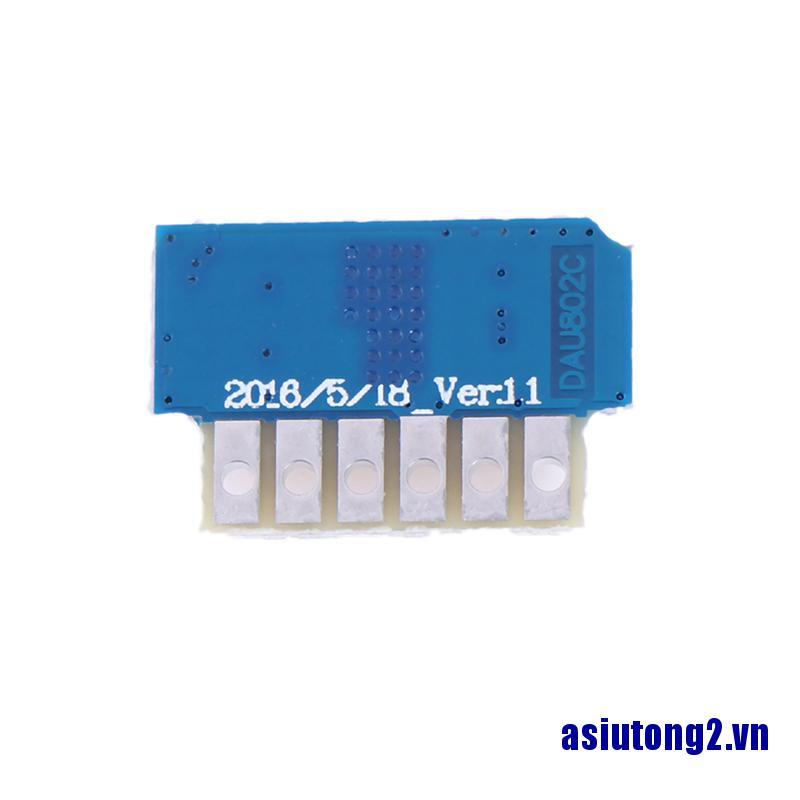

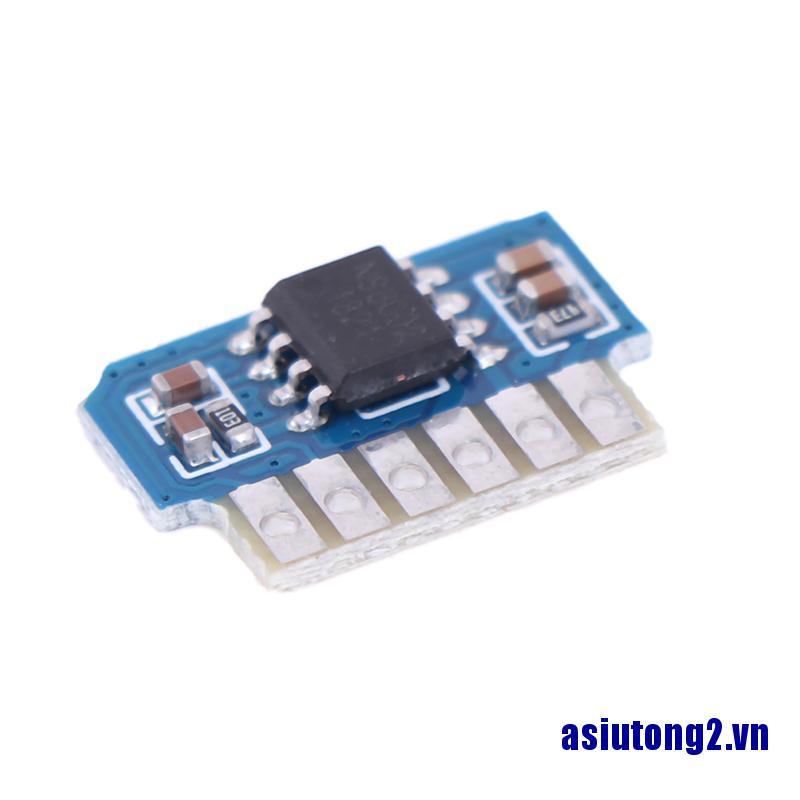

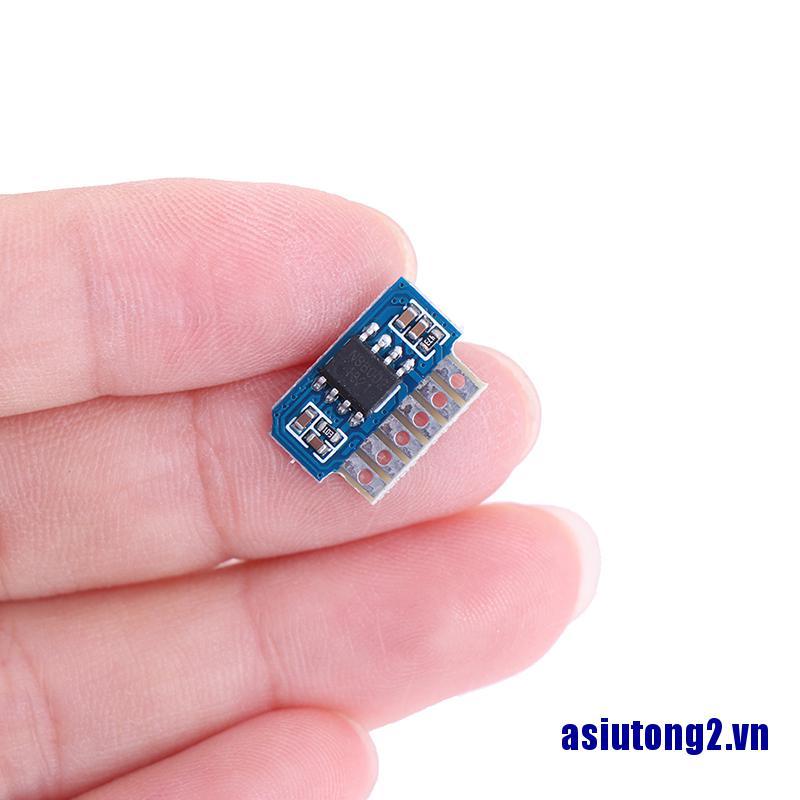

DC 3V 3.7V 5V class AB mono 3W mini amplifier board audio amp module one channel
Power amplifier board with NS8002 (beyond the domestic 8002A, B, C, D) AB class efficient power amplifier chip carefully debug sound quality perfect, strong power, without any interference, it is fine!
Parameter description:

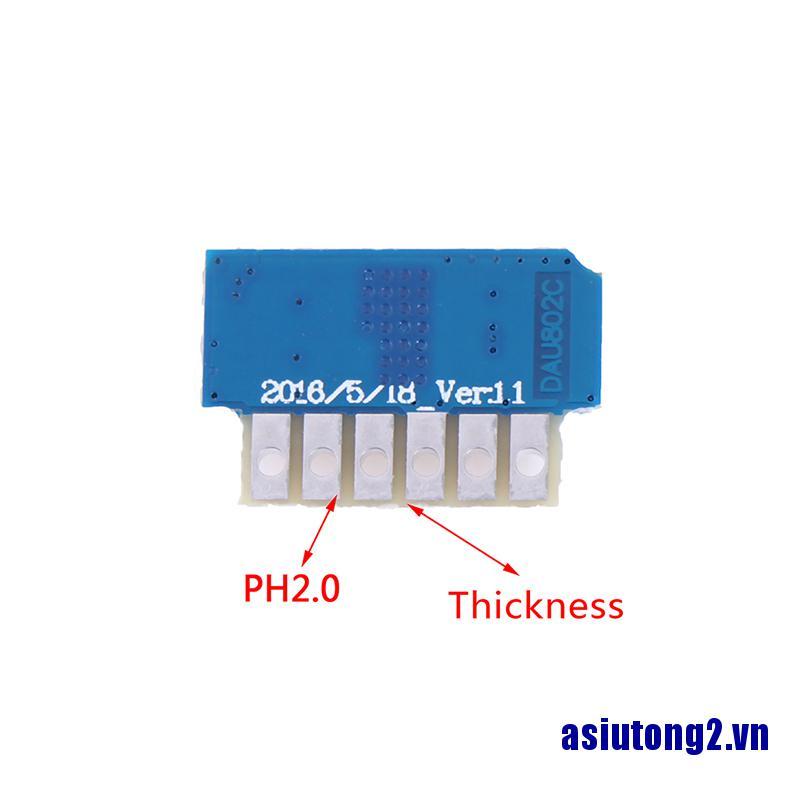

PCB size: length 16 × width 10.5 × thickness 2.6mm (with protruding part)
Installation: SMT patch
Output power: mono 3W
Supply voltage: 2V-5V (3.7V lithium battery can be used)
Output impedance: 4Ω-8Ω
Frequency response: 150HZ-20KHZ
Efficiency: 90%
Mute control: Yes
Volume adjustment: none

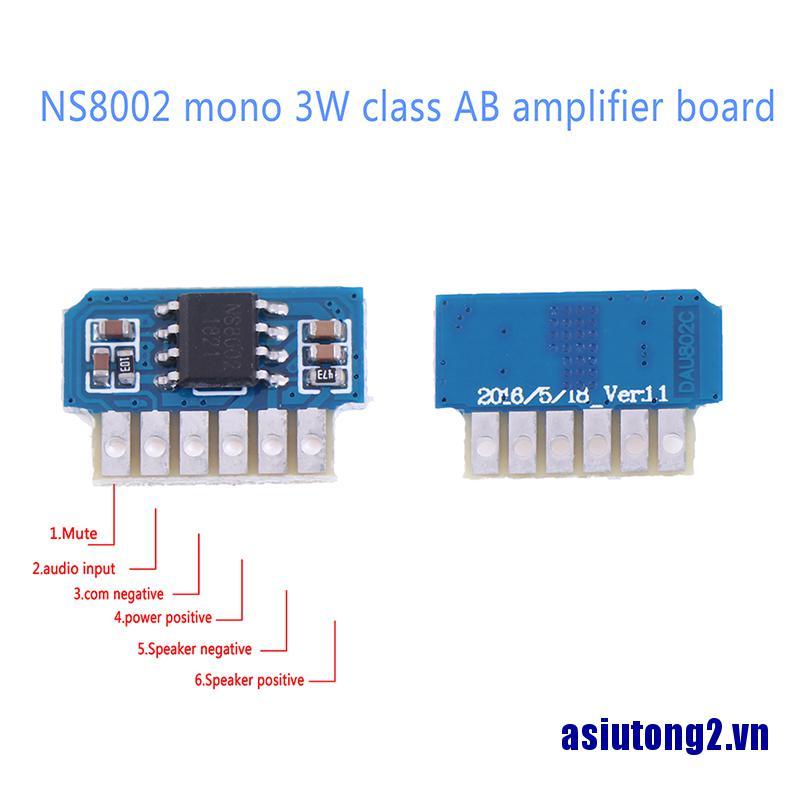

Wiring instructions:This board should be grounded, 3 feet for the power supply negative and ground sharing. 1 foot for the quiet output, and 3 feet to be connected together, when the voltage is 0 when the sound, the voltage is 0.5-5V when the silent, no sound output.
Package Included:1 x Mini Amplifier Board
Power amplifier board with NS8002 (beyond the domestic 8002A, B, C, D) AB class efficient power amplifier chip carefully debug sound quality perfect, strong power, without any interference, it is fine!
Parameter description:
PCB size: length 16 × width 10.5 × thickness 2.6mm (with protruding part)
Installation: SMT patch
Output power: mono 3W
Supply voltage: 2V-5V (3.7V lithium battery can be used)
Output impedance: 4Ω-8Ω
Frequency response: 150HZ-20KHZ
Efficiency: 90%
Mute control: Yes
Volume adjustment: none
Wiring instructions:This board should be grounded, 3 feet for the power supply negative and ground sharing. 1 foot for the quiet output, and 3 feet to be connected together, when the voltage is 0 when the sound, the voltage is 0.5-5V when the silent, no sound output.
Package Included:1 x Mini Amplifier Board
