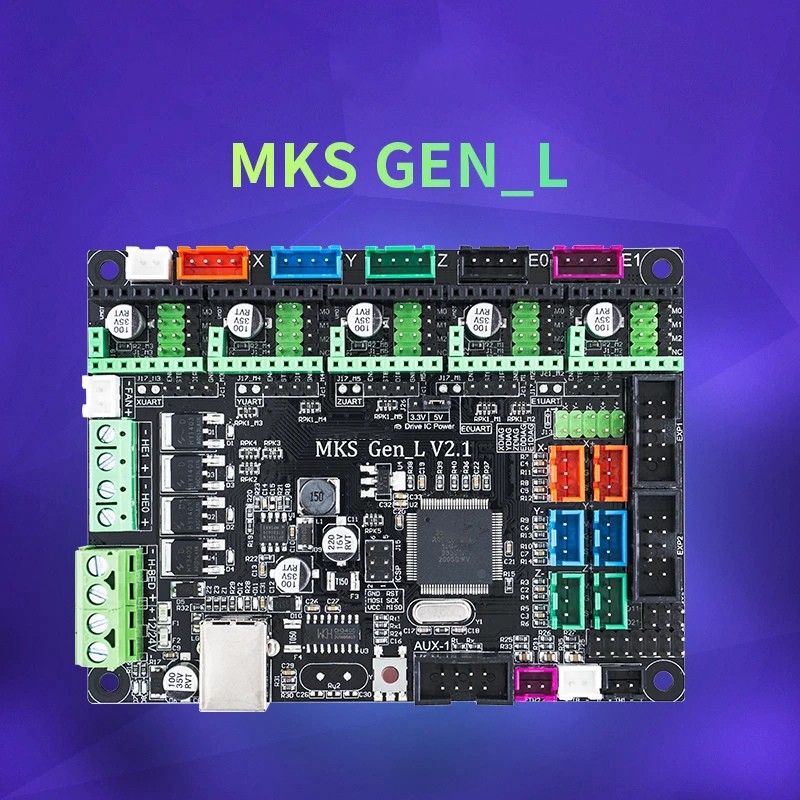

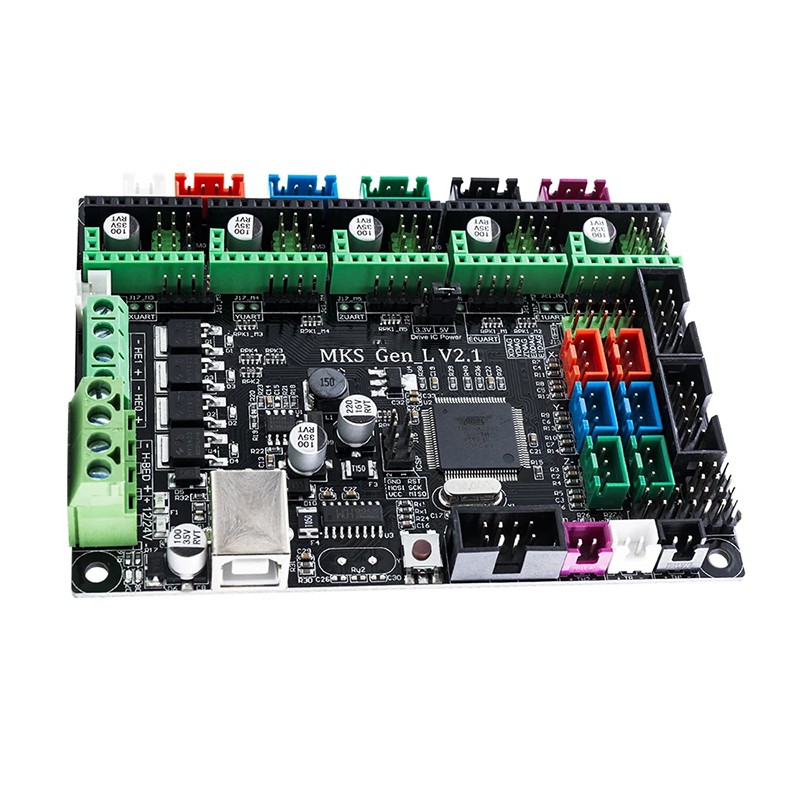

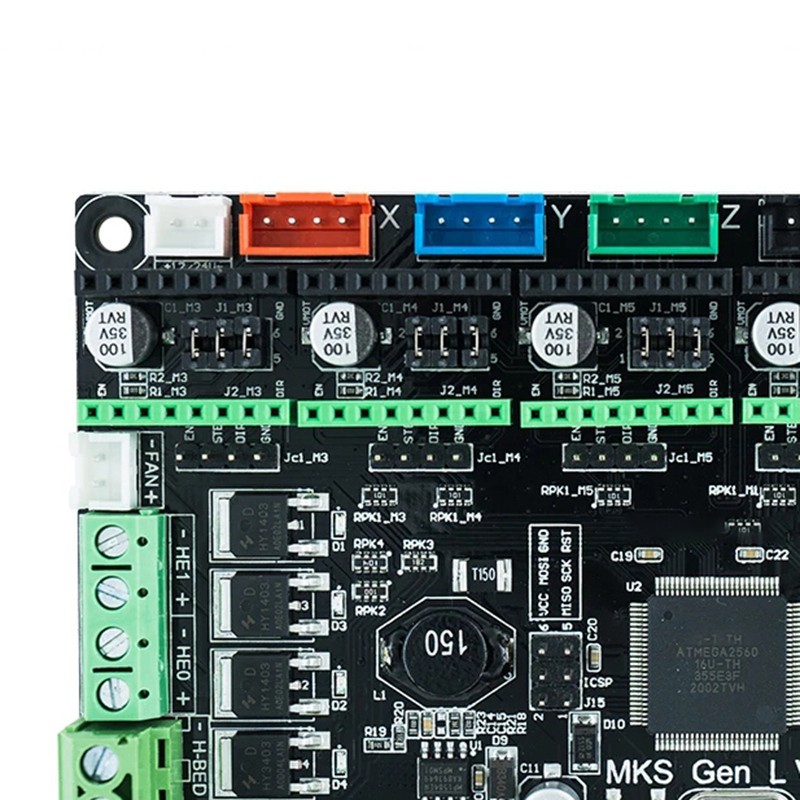

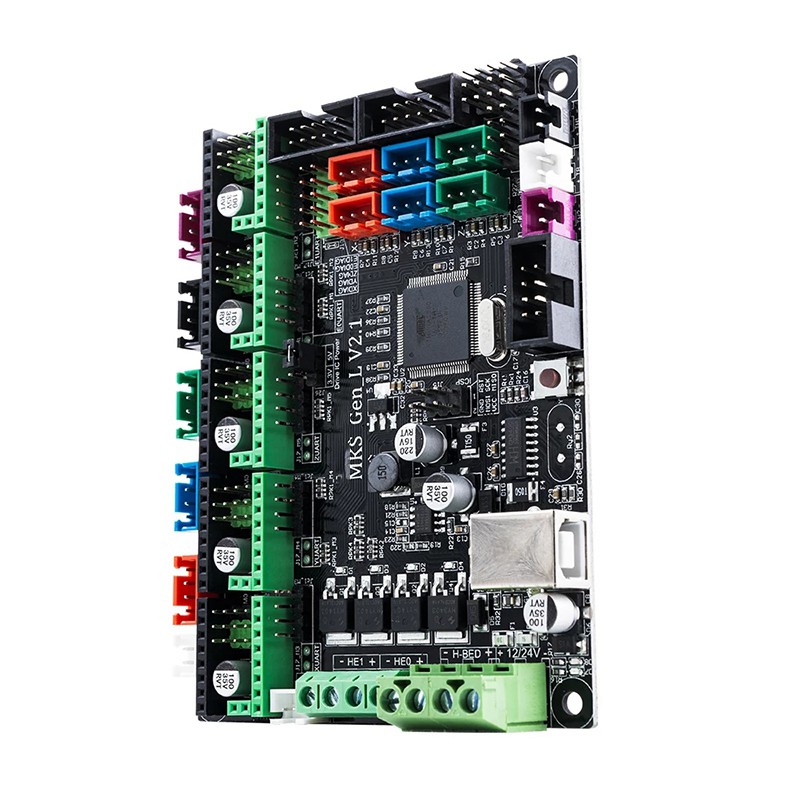

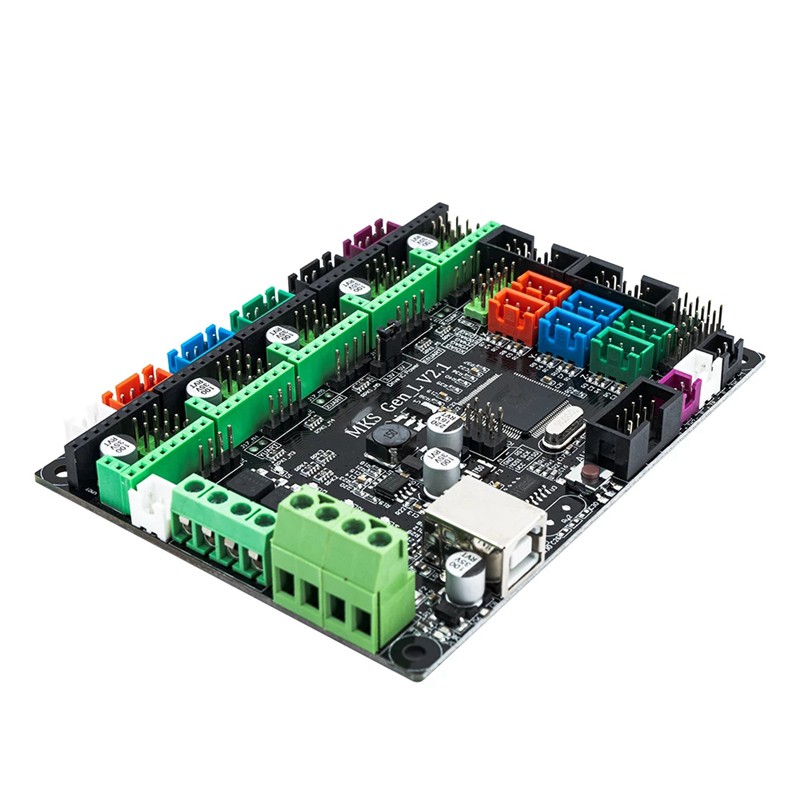

Bảng Mạch Điều Khiển Gen-L V1.0 Hỗ Trợ A4988 / Tmc2208 / 2209tmc2100 Cho Máy In 3d
0 Đánh Giá
Đã Bán 0
76
433.000 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
chủ nhật 23/05/2021 lúc 04:39 CH
MÔ TẢ SẢN PHẨM
1.Support a variety of stepper drivers such as A4988, DRV8825, TMC2100 and 8729, available to change the stepper drivers and motors as users like.
2.Use specific power chip, support 12V-24V power input, and resoe the problems of chip heating and power shortage.
3.Stable and reliable filter circuit greatly reduces interference and avoids crashes as possible in the process of printing.
4.Use CH340 serial port chip, more easily install the drive than 16U2.
5.Run Marlin firmware, the configuration is completely same as Ramps 1.4, and available to directly replace the Ramps 1.4.
Support Ramps 1.4, 2004LCD,12864LCD, TFT28 and TFT32.
Available to input 24V, the heated bed current can be reduced to 1/4 at the same system power which effectively resoes the problem that the MOSFET of heated bed heats.
The stable and reliable filter circuit greatly reduces the possibility of interference, and the most likely to avoid the phenomenon of dead machine and running in the printing process.
Please do not insert or pull the motor and driver under the condition of power-on, which may cause the driver to burn out. Also do not adjust the current during the operation of the motor.
You need first disconnect the power, remove the motor, and then re-power, adjust the potentiometer, measure the voltage on the potentiometer until the measured voltage is the same as expected. Do not insert the reverse drive, otherwise it will burn out the drive and even burn the motherboard.
Colour: black
Material: ABS
Size: 10 x 6 x 3cm
Package Contents:
1 x motherboardOnly the above package content, other products are not included.
Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
