Bảng Mạch Điều Khiển Động Cơ Wond L293D Cho Mô-Đun Duemilanove
0 Đánh Giá
Đã Bán 0
142
37.457₫
Mua ngay trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
Cập nhật: thứ hai 14/09/2026 lúc 01:43 CH
LỊCH SỬ GIÁ SẢN PHẨM
Đang tải lịch sử giá...
SO SÁNH GIÁ
MÔ TẢ SẢN PHẨM
#L293D #Motor #Control #Shield #Motor #Drive #Expansion #Board #for #Duemilanove #Module #Accessories

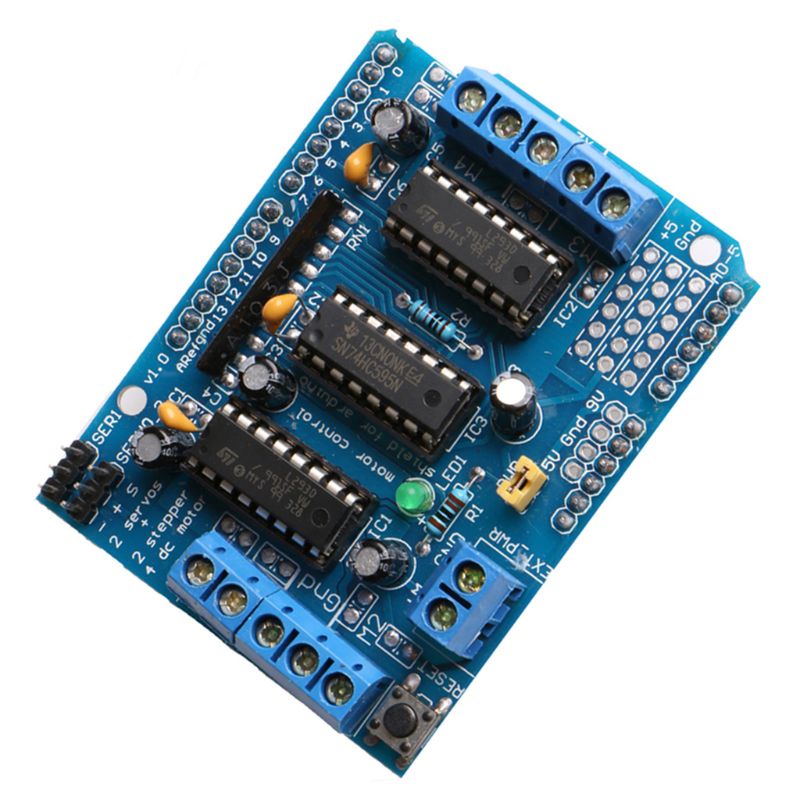

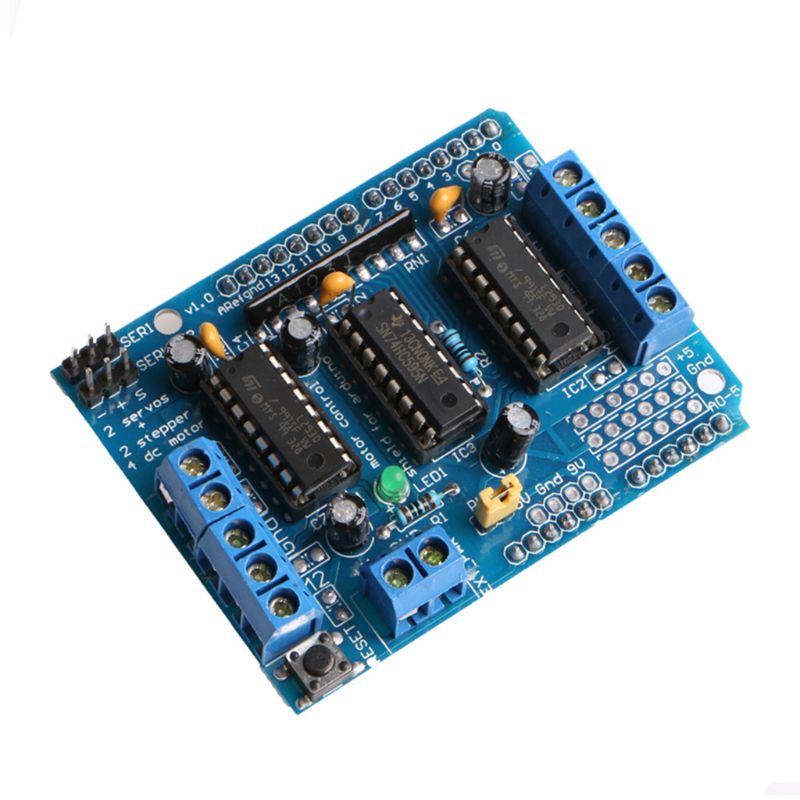

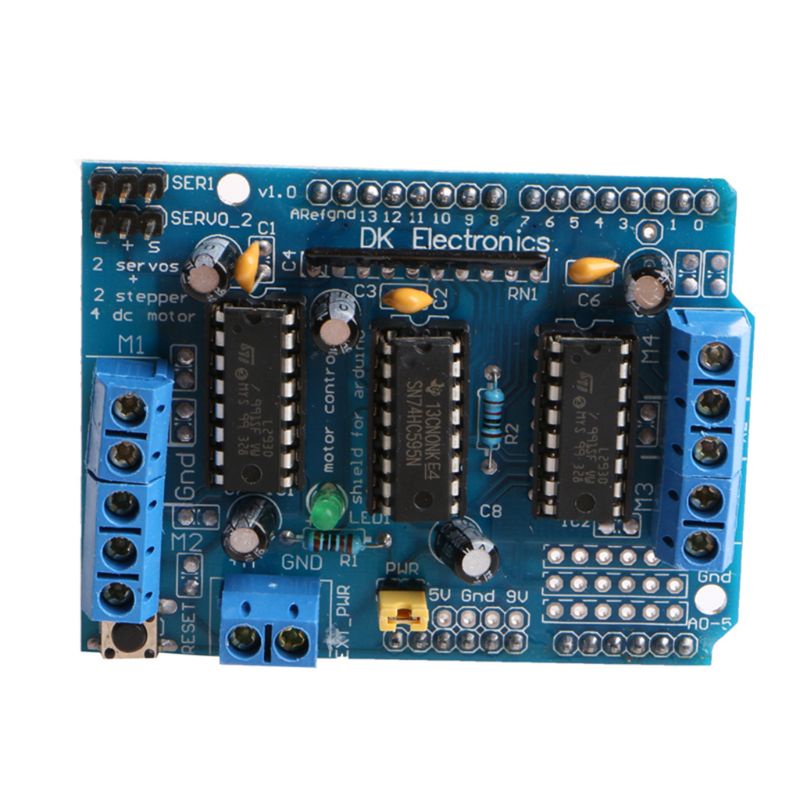

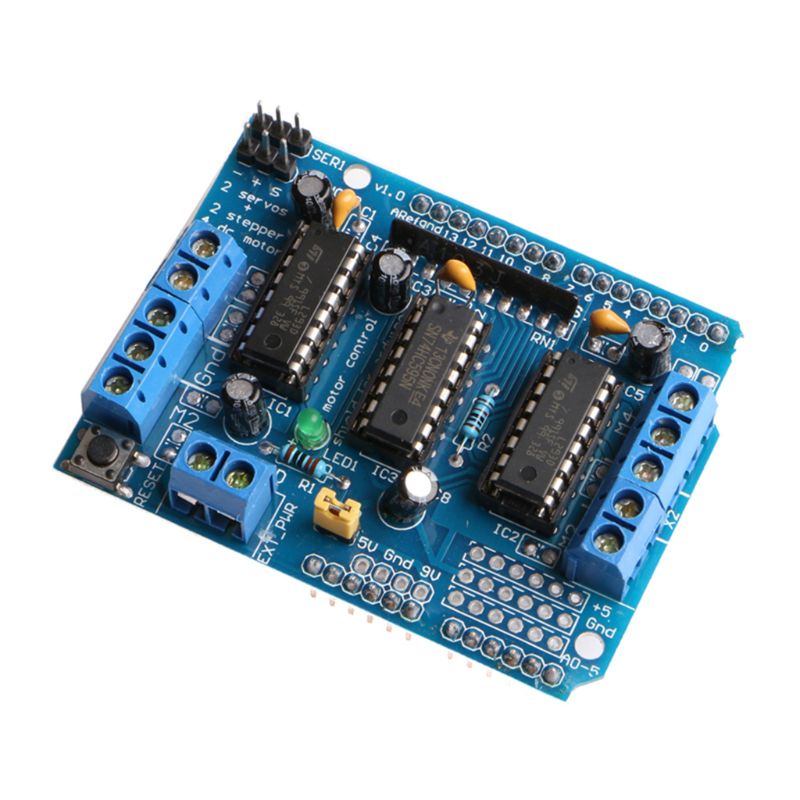

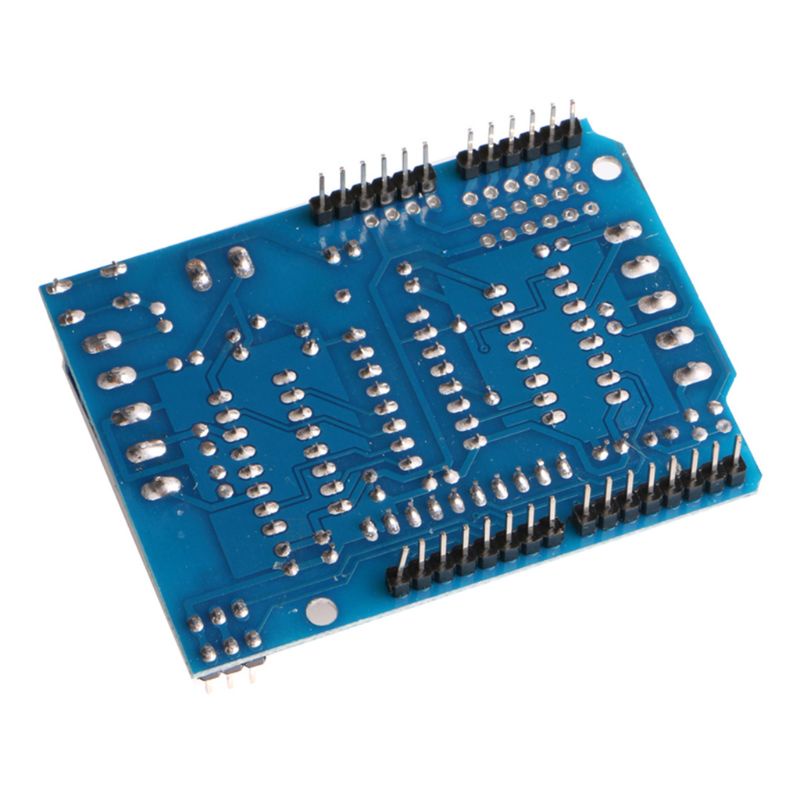

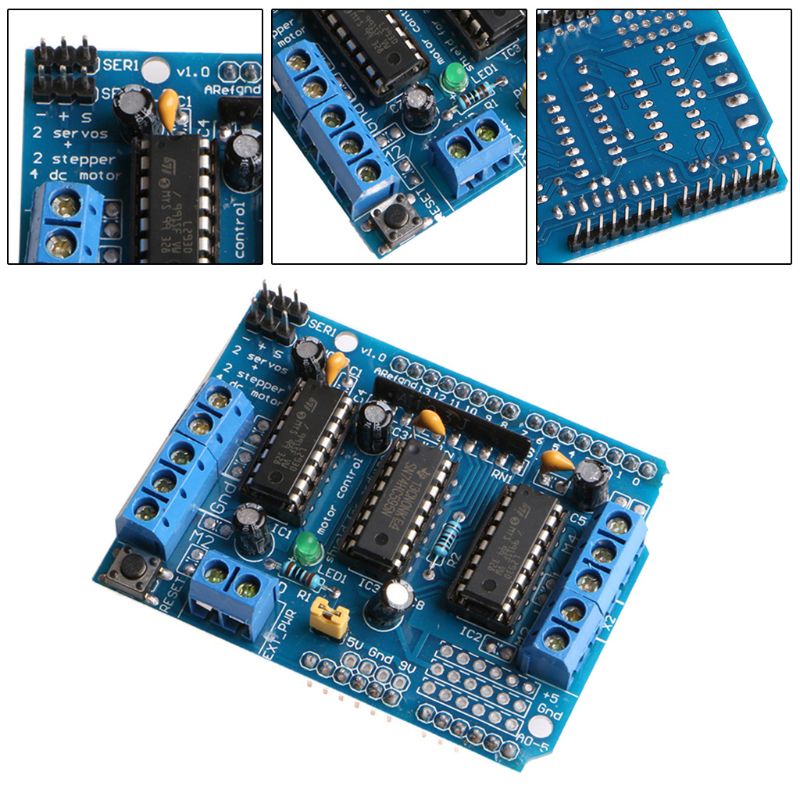

L293D Motor Control Shield Motor Drive Expansion Board for Duemilanove Module Accessories
Description:
100% brand new and high quality.
Feature:
The L293D is a monolithic integrated, high voltage, high current, 4-channel driver. The board can be used to interface microcontrollers to DC motors and power supplies of up to 36 Volts. The board can supply a maximum current of 600mA per channel.
2 Interfaces for 5V for Servo connected to the high-resolution dedicated timer.
Can drive 4 DC motors or 2 stepper motors or 2 servos.
Can drive up to 4 bi-directional DC motors with individual 8-bit speed selection.
Can drive up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping.
4 H-Bridges: Eachbridge provides 0.6A (1.2A peak current) with thermal protection, can run motors on 4.5V to 36V DC.
Pull down resistors keep motors disabled during power-up.
2 external terminal power interface, for separate logic/motor supplies.
Compatible with for Diecimila and for Duemilanove.
Motor Drive Shield only, other accessories demo in the picture is not included!
Specifications:
Item Type: Motor Drive Shield
Material: Plastic+Metal

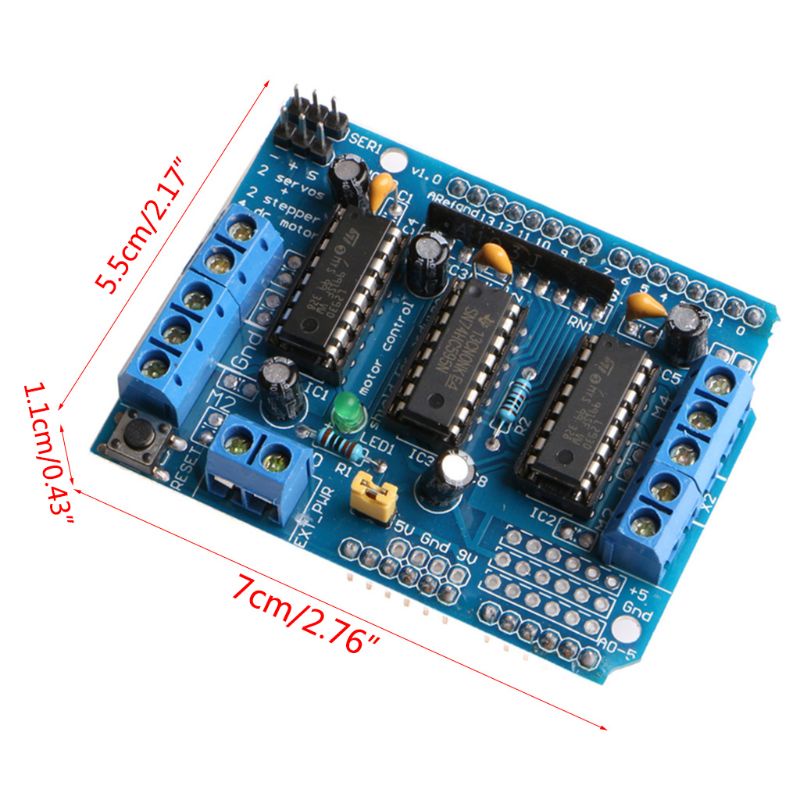

Size: 70x50x11mm/2.76x1.97x0.43in
Color: Blue
Quantity: 1 Pc
Note:
No retail package.
Transition: 1cm=10mm=0.39inch
Please allow 1-3mm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!
Package Includes:
1 x Motor Drive Shield
