Bảng Mạch Chỉnh Lưu 500w 12a 45mm 115x80mm
2 Đánh Giá
Đã Bán 4
87
339.000₫
Mua ngay trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
Cập nhật: thứ năm 17/09/2026 lúc 12:24 SA
LỊCH SỬ GIÁ SẢN PHẨM
Đang tải lịch sử giá...
SO SÁNH GIÁ
MÔ TẢ SẢN PHẨM
Description:

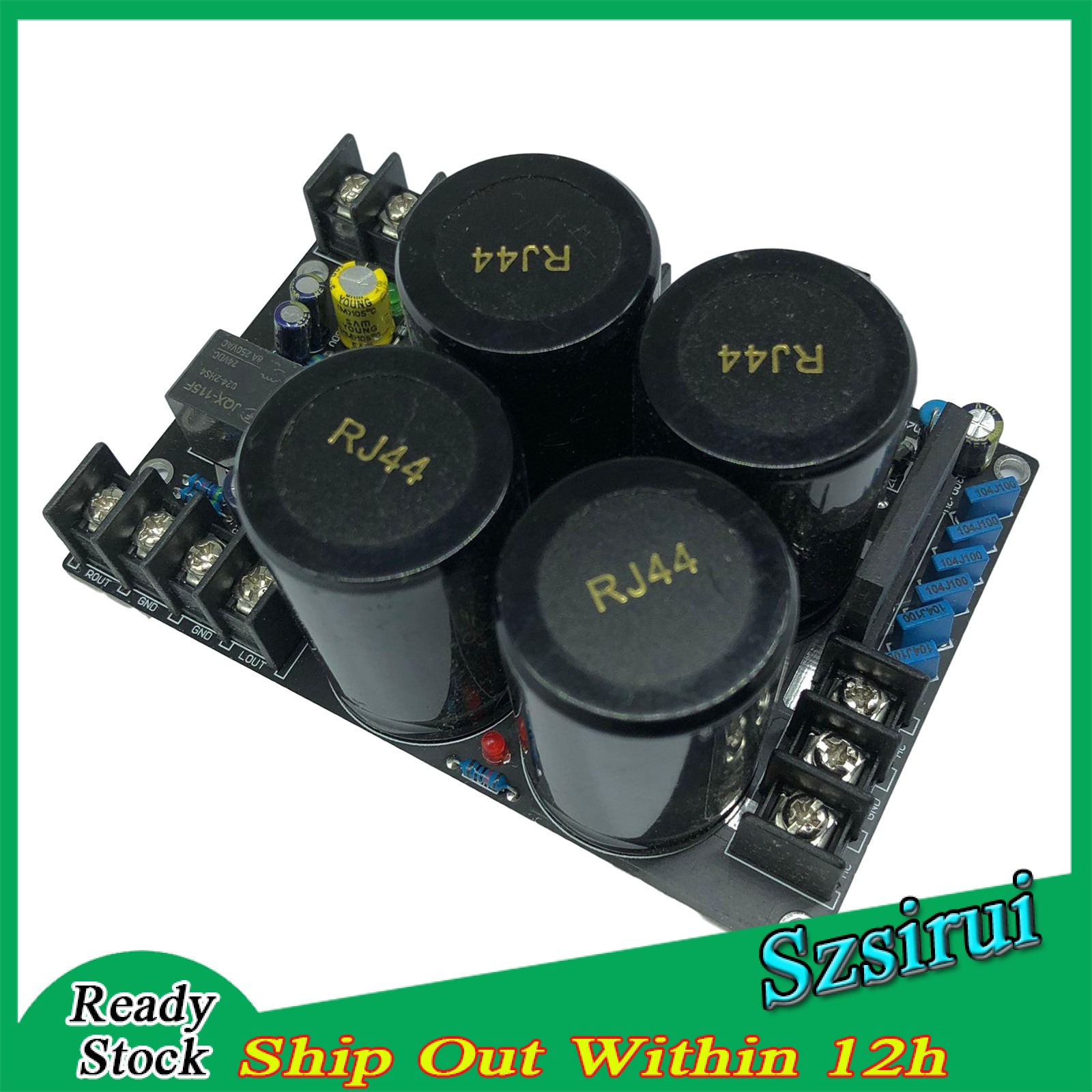

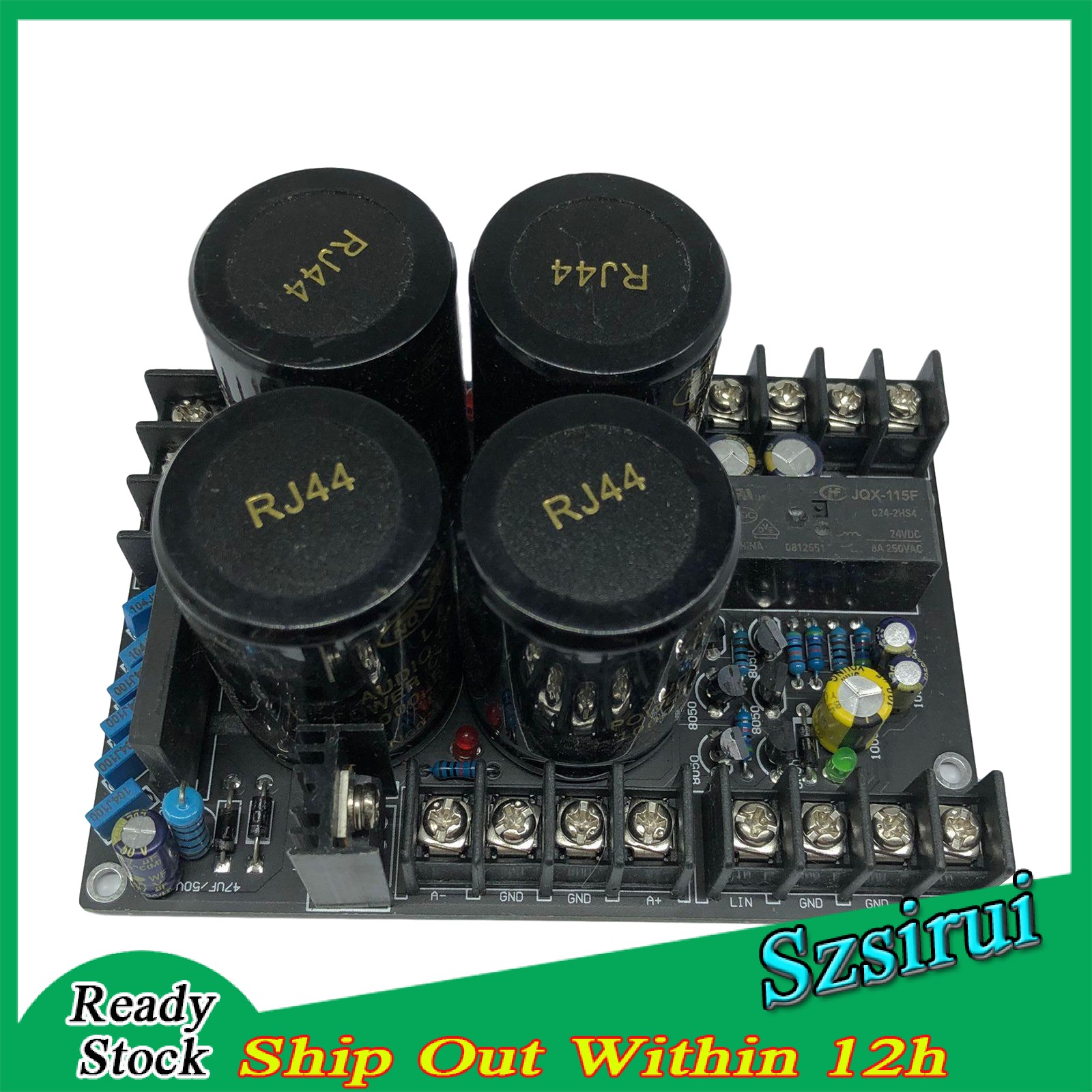

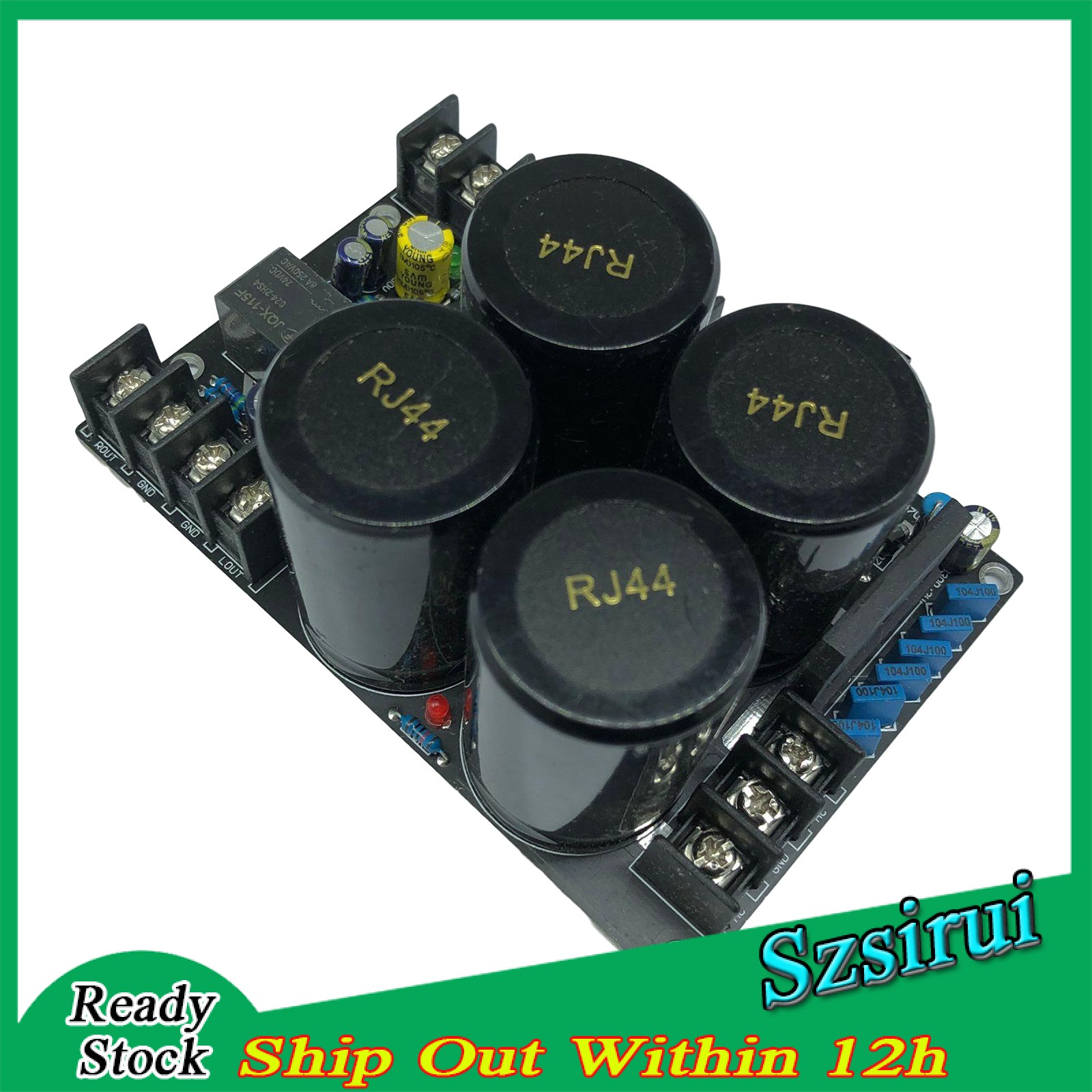

Assembled 10000uf*4/50v rectifier power supply+speaker protection integrated board

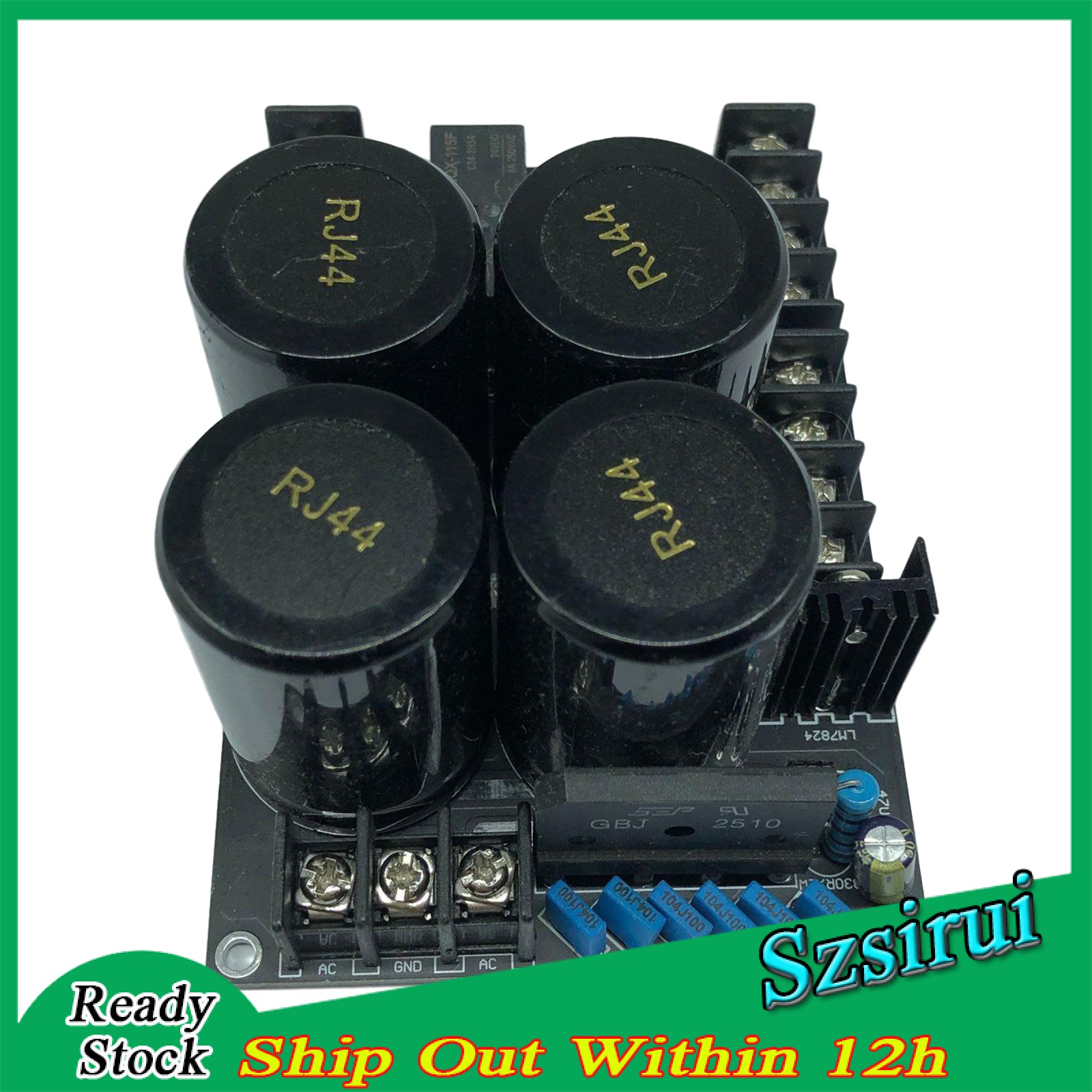

Using the original 2510 rectifier

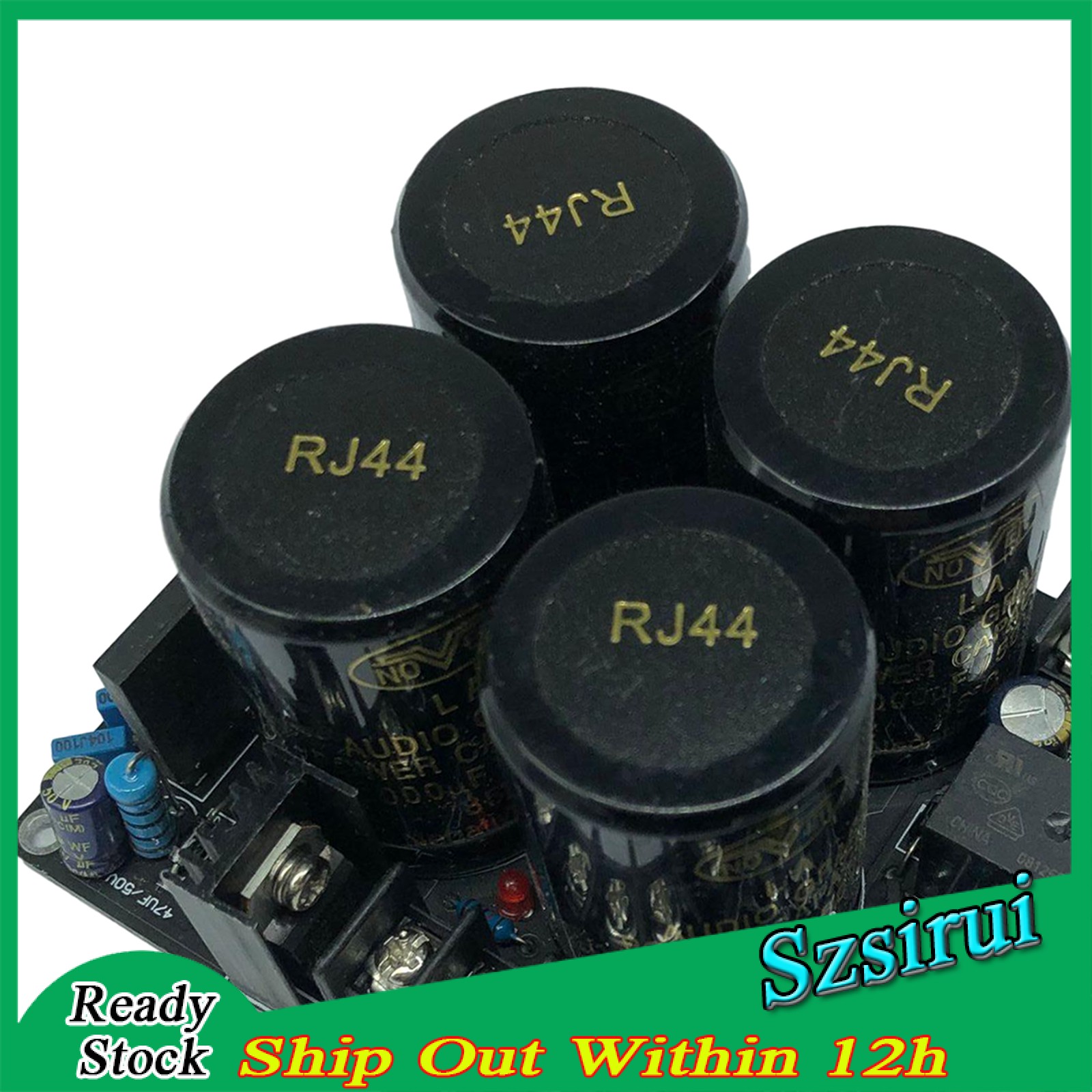

The main filter capacitor adopts the gold NOVER audio special capacitor 10000UF * 4 / 50V, which guarantees a strong continuous power support.
The PCB uses 1.6mm thick double-sided sheet, 2.0 oz copper thickness, and the whole process of spraying tin to ensure the good passing performance of large and small currents. Best-in-class PCB quality.

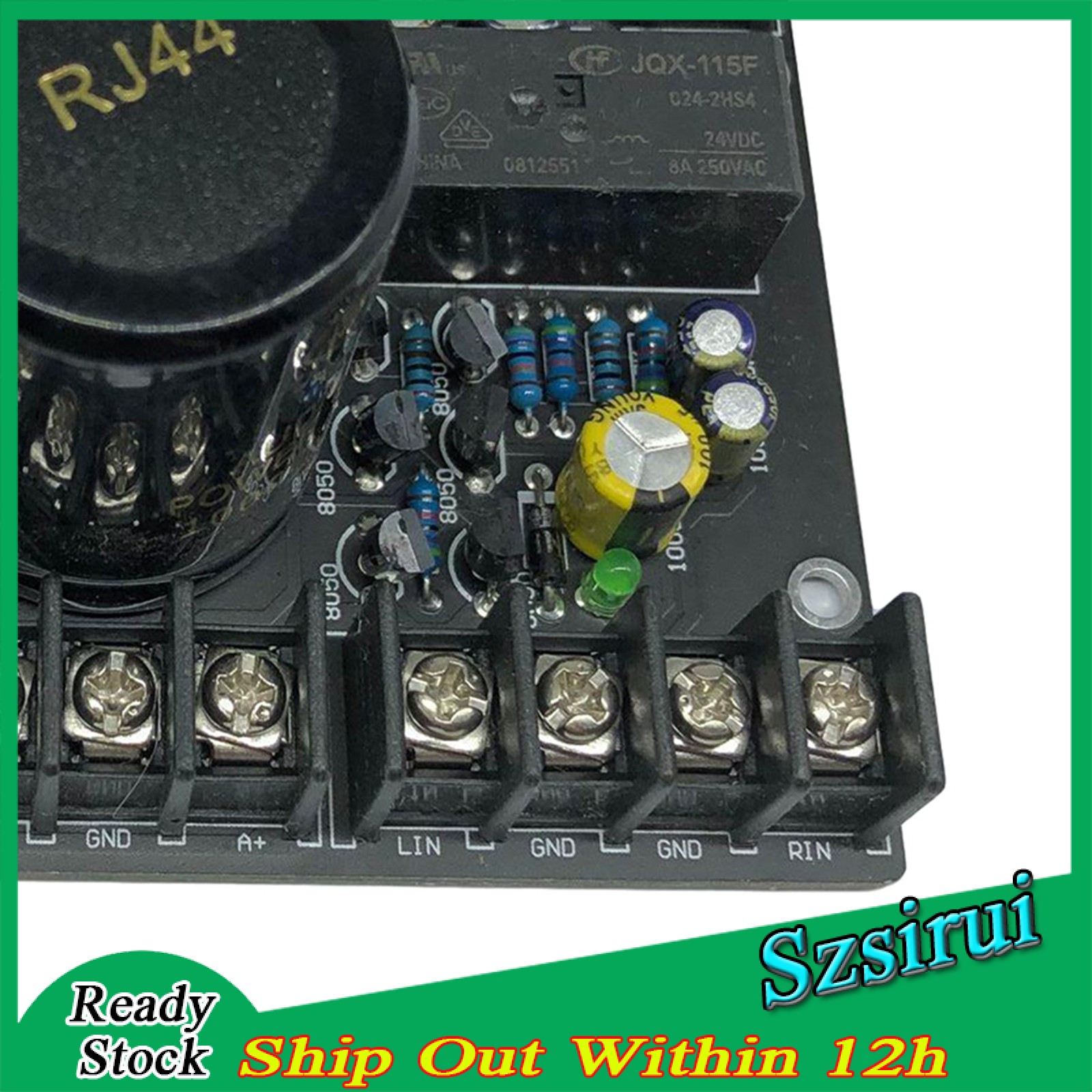

Using 12A high current imported relay, the performance is more stable and more durable.
Specification:
Input voltage: AC dual 34V or less
Output voltage: DC 50V or less
Rated output power of the power supply: 500W
Horn protection output current: 12A
Speaker protection function: delayed DC protection
Size Chart:
PCB size: 115x80mm / 4.53x3.15inch
Capacitance height: 45mm / 1.77inch
Package Includes:
1 Piece Assembled Rectifier Power Supply + Speaker Protection Integrated Board
Note:
Color might be slightly different due to the color calibration of each individual monitor.
Please allow slightly measuring deviation due to manual measurement.
