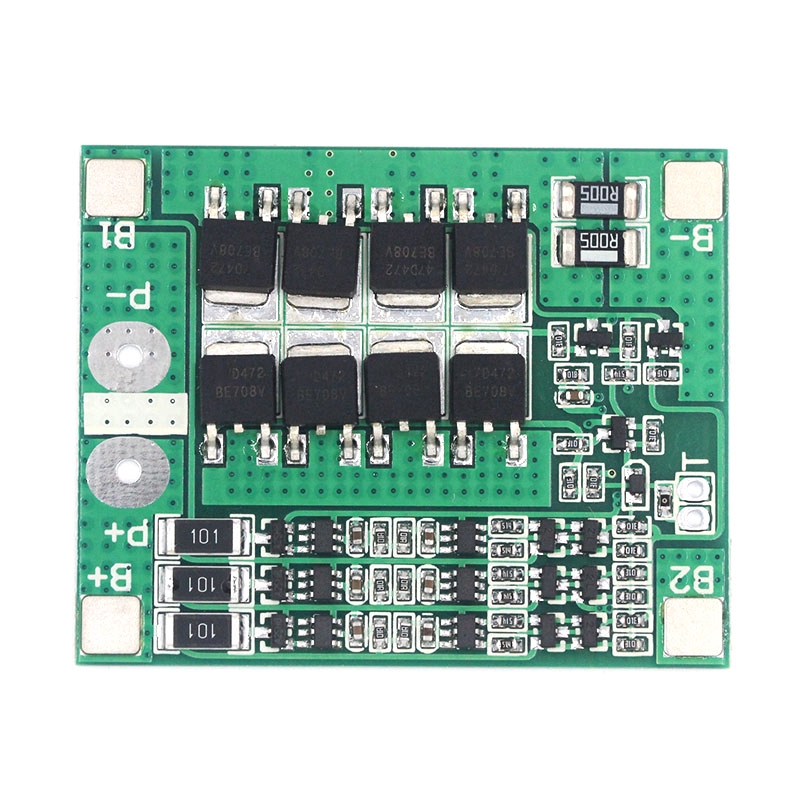

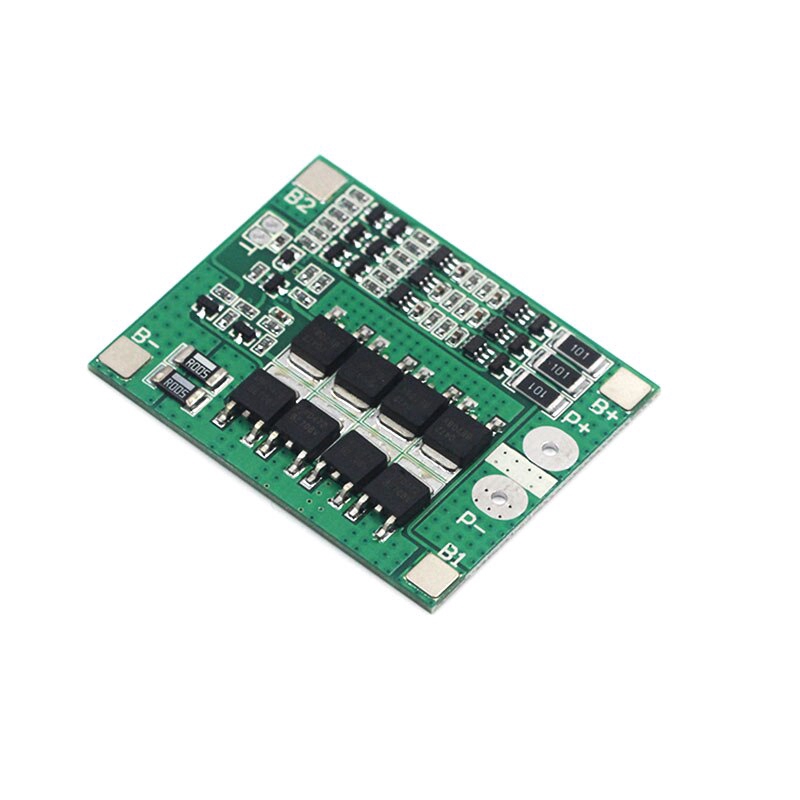

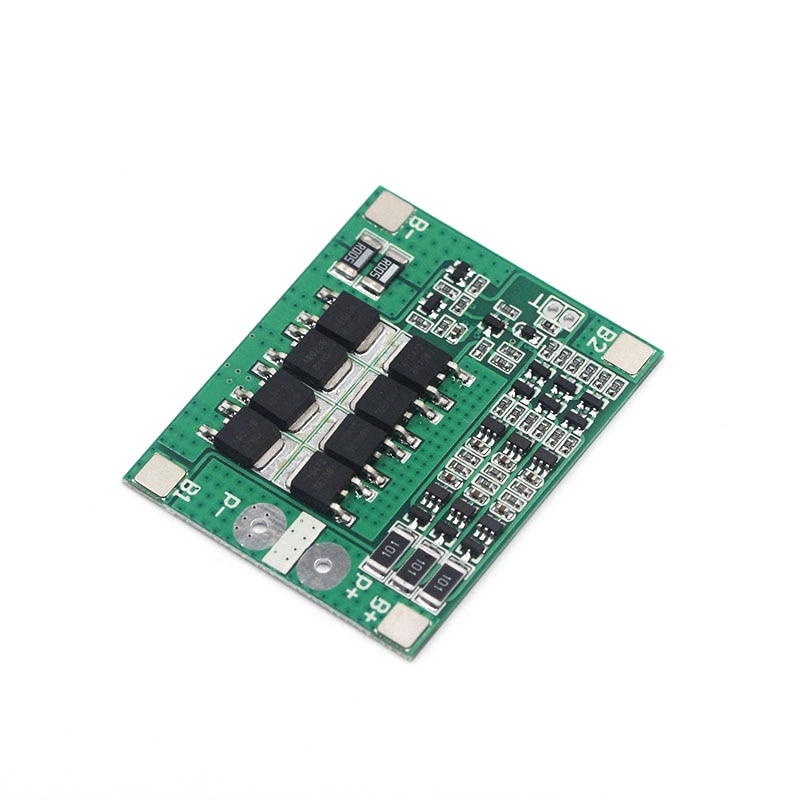

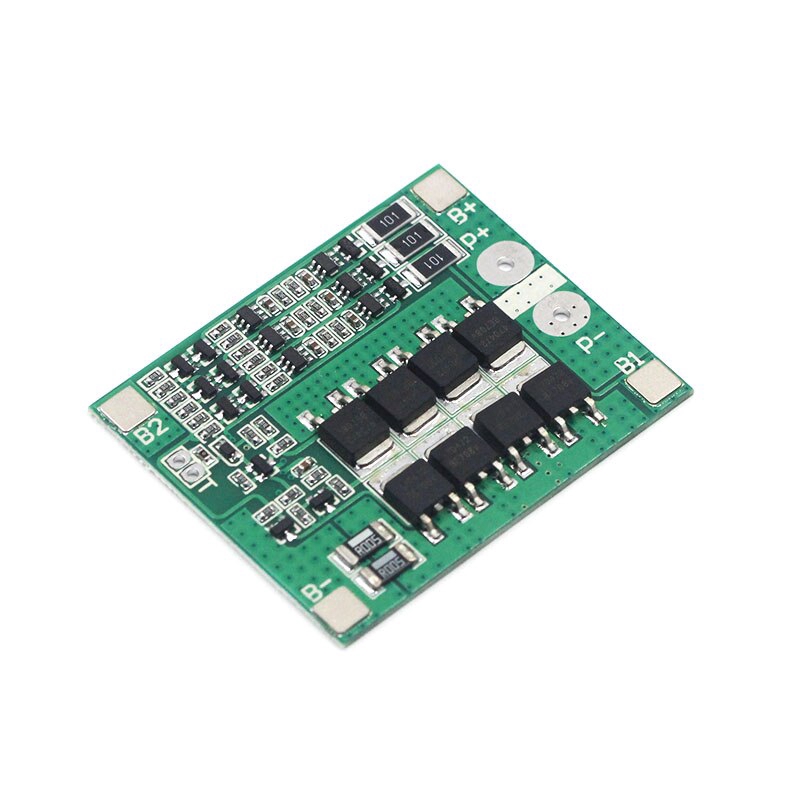

Bảng Mạch Bảo Vệ Pin Lithium 3s 25a Lithium Ion 18650 Bms
1 Đánh Giá
Đã Bán 2
106
48.880 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
chủ nhật 09/05/2021 lúc 10:37 CH
MÔ TẢ SẢN PHẨM
battery internal resistance differences within 5 milliohm, voltage within 0.03 V voltage, capacity vary within 50 ma
Features:
1) high-accuracy voltage detection circuit;
2) terminal of the charger using high voltage device;
3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit);
4) MOS transistor can control the battery charge and discharge;
5) low standby current consumption.
Brief Parameter:
Over Charge voltage:4.25-4.35v±0.05v
Over Discharge voltage: 2.3-3.0v±0.05v
Max Working current:25A
Max peak current:35-40A
Working temperature:-40---+50
Storage Temperature:-40-- +80
Small current:50uA
Life cycle:more then 30000 hours
Resistance:Less than 100mΩ
Short Cut:Protectable,Charge can repair
Size:56*45*4.0mm
Features:
1) high-accuracy voltage detection circuit;
2) terminal of the charger using high voltage device;
3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit);
4) MOS transistor can control the battery charge and discharge;
5) low standby current consumption.
Brief Parameter:
Over Charge voltage:4.25-4.35v±0.05v
Over Discharge voltage: 2.3-3.0v±0.05v
Max Working current:25A
Max peak current:35-40A
Working temperature:-40---+50
Storage Temperature:-40-- +80
Small current:50uA
Life cycle:more then 30000 hours
Resistance:Less than 100mΩ
Short Cut:Protectable,Charge can repair
Size:56*45*4.0mm
