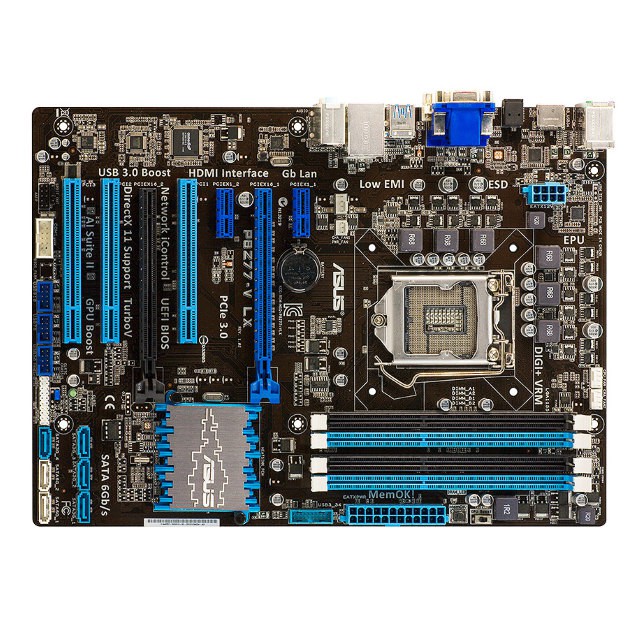

Asus P8Z77-V LX

Asus P8Z77-V LX mới

Intel® Socket 1155 for 3rd/2nd Generation Core™ i7/Core™ i5/Core™ i3/Pentium®/Celeron® Processors
Supports Intel® 22 nm CPU, Intel® 32 nm CPU, Intel® Turbo Boost Technology 2.0
Chipset Intel® Z77

Memory
4 x DIMM, Max. 32GB, DDR3 2400(O.C.)/2200(O.C.)/2133(O.C.)/2000(O.C.)/1866(O.C.)/1800(O.C.)/1600/1333 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture

Graphic
Integrated Graphics Processor
Multi-VGA output support: HDMI/DVI/RGB ports
Multi-GPU, Supports AMD Quad-GPU CrossFireX™ Technology

Expansion Slots, 1 x PCIe 3.0/2.0 x16 (blue) , 1 x PCIe 2.0 x16 (x4 mode, black), 2 x PCIe 2.0 x1, 3 x PCI

Storage
2 x SATA 6Gb/s port(s), gray. 4 x SATA 3Gb/s port(s), blue. Support Raid 0, 1, 5, 10
Supports Intel® Smart Response Technology, Intel® Rapid Start Technology, Intel® Smart Connect Technology

LAN Realtek®, 1 x Gigabit LAN Controller(s)

Audio
Realtek® ALC887 8-Channel High Definition Audio CODEC
Supports: Jack-detection, Front Panel Jack-retasking, Audio Feature: Optical S/PDIF out port(s) at back panel

USB Ports 4 x USB 3.1 Gen 1 port(s), 10 x USB 2.0 port(s)

Back I/O Ports
1 x PS/2 keyboard/mouse combo port(s)
1 x DVI
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.1 Gen 1
4 x USB 2.0
1 x Optical S/PDIF out
3 x Audio jack(s)

ATX Form Factor, 12 inch x 8.6 inch (30.5 cm x 21.8 cm)
Đóng gói: Asus P8Z77-V LX, chặn, dây sata x1
