1 Mô Đun Cảm Biến Wcs1800 35a
0 Đánh Giá
Đã Bán 3
166
164.061 đ
Xem sản phẩm trên Shopee
Cài đặt Bigbuy360 ExtensionQuốc tế
thứ năm 29/04/2021 lúc 09:34 CH
MÔ TẢ SẢN PHẨM

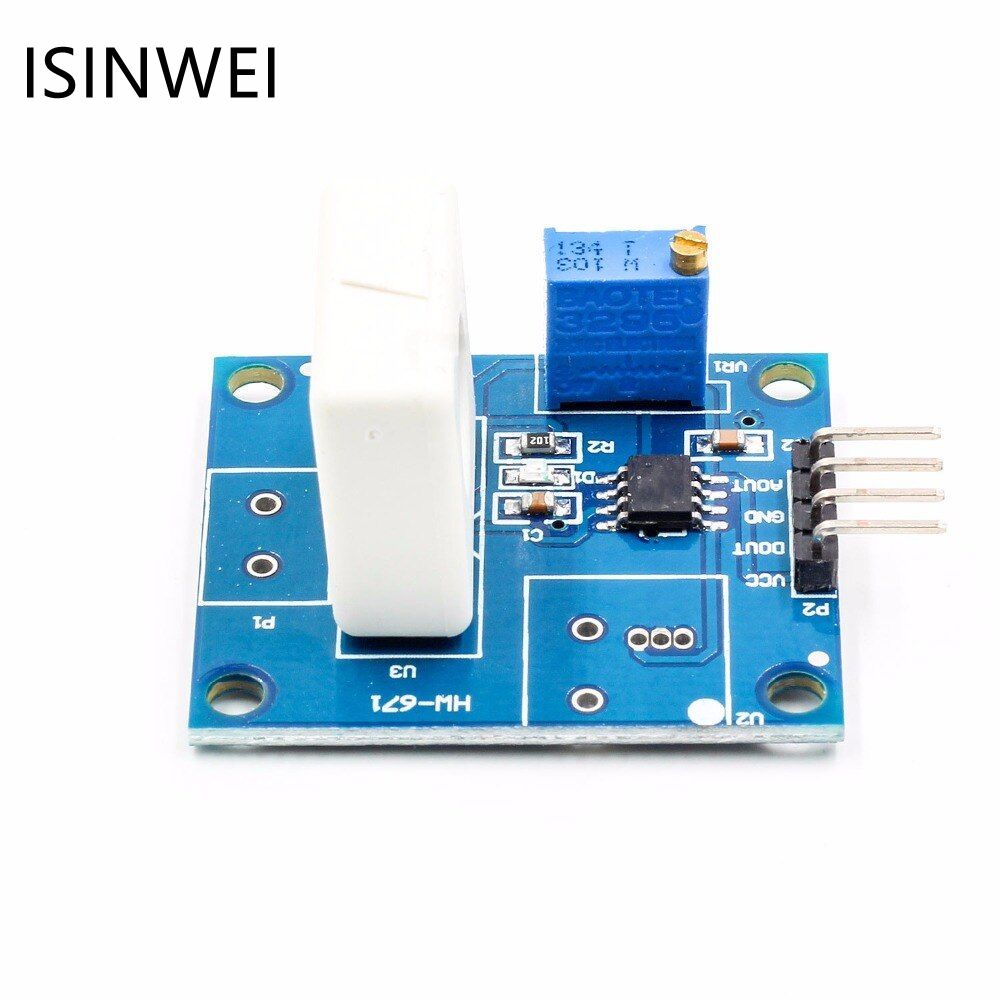

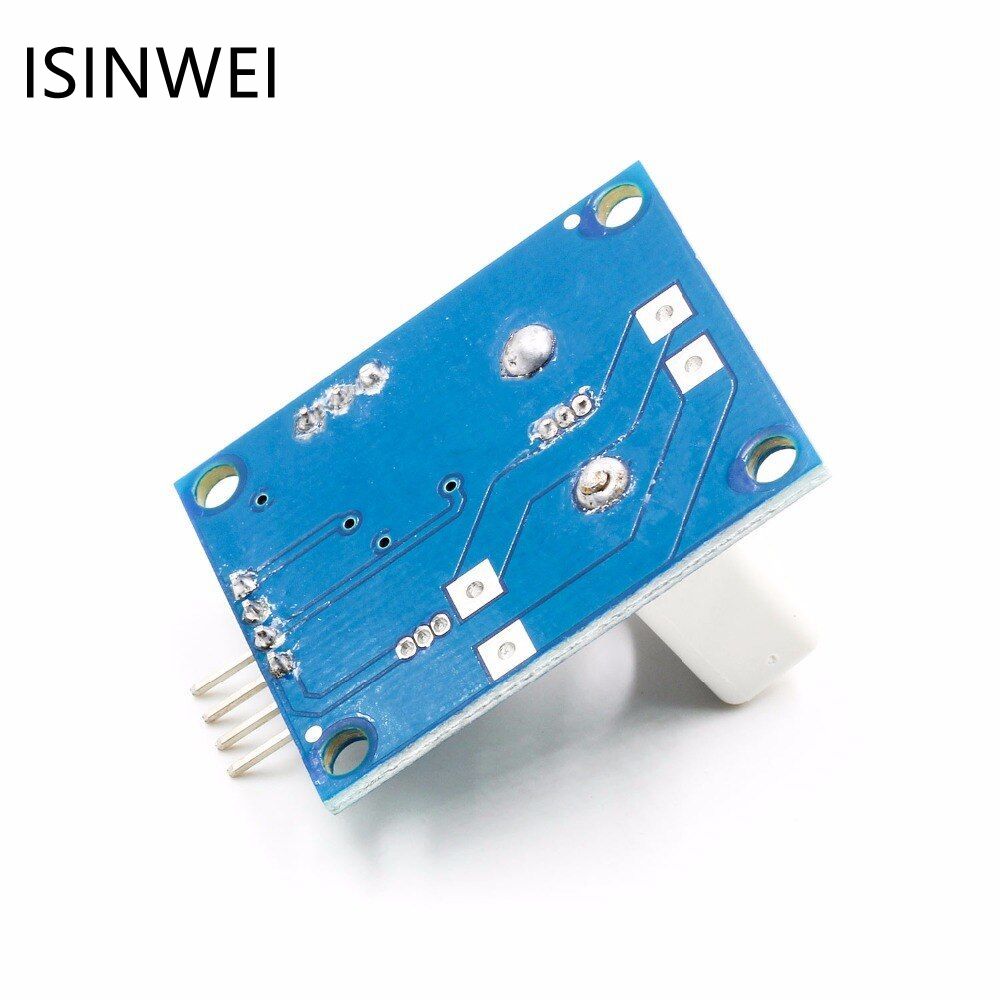

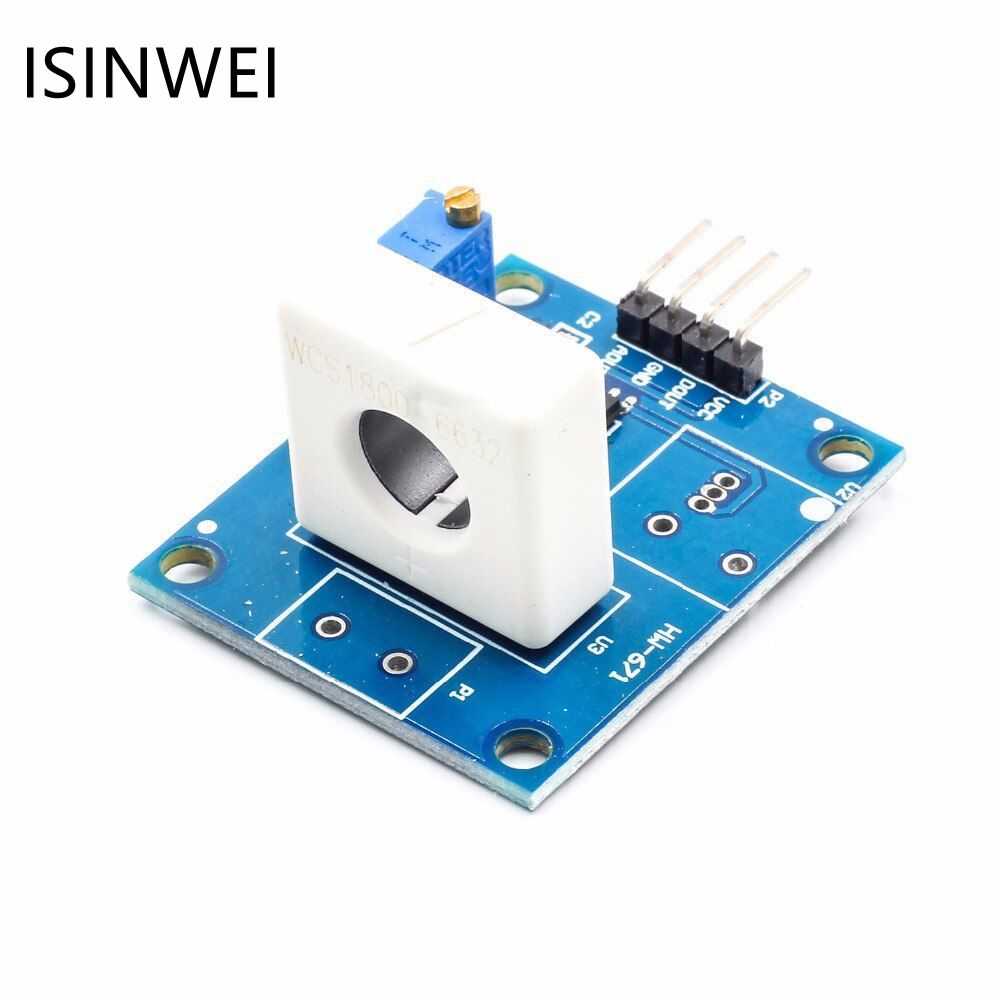

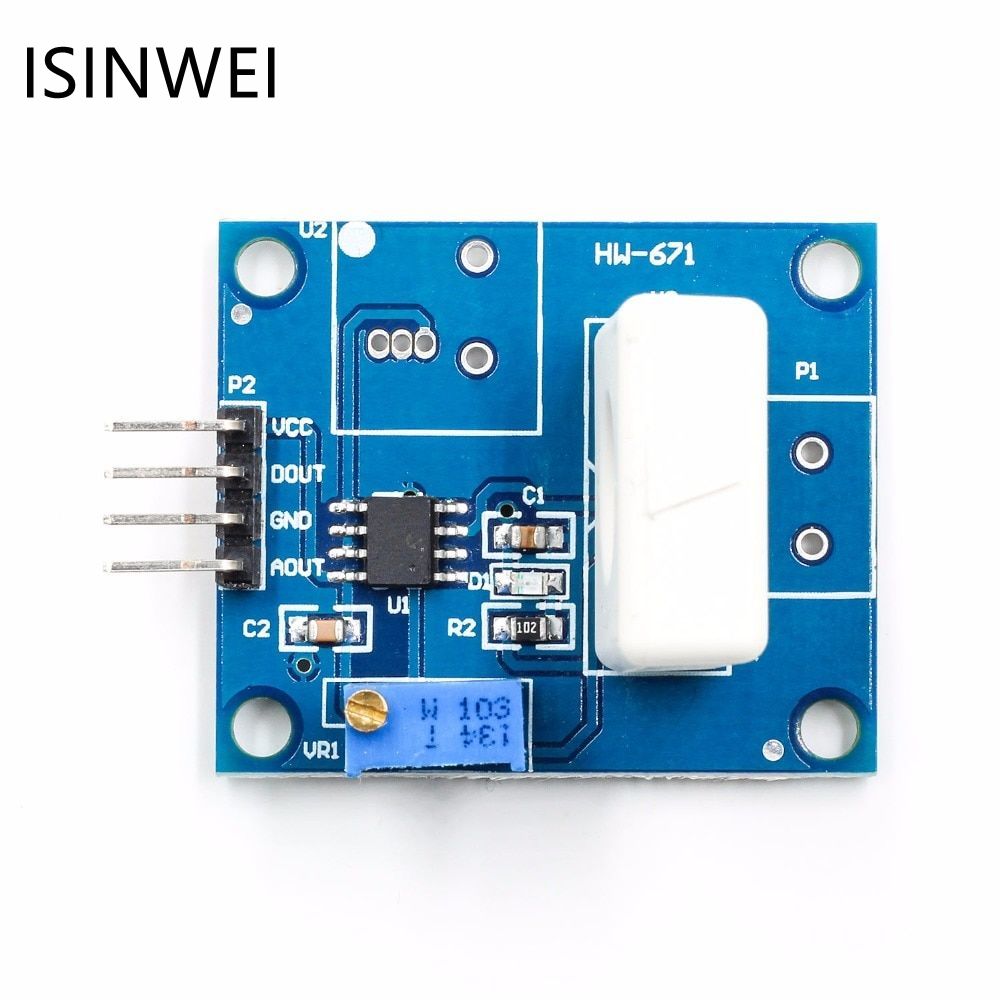

1PCS WCS1800 Hall Current Sensor 35A Short Over-Current Detector Protection Module
Feature:

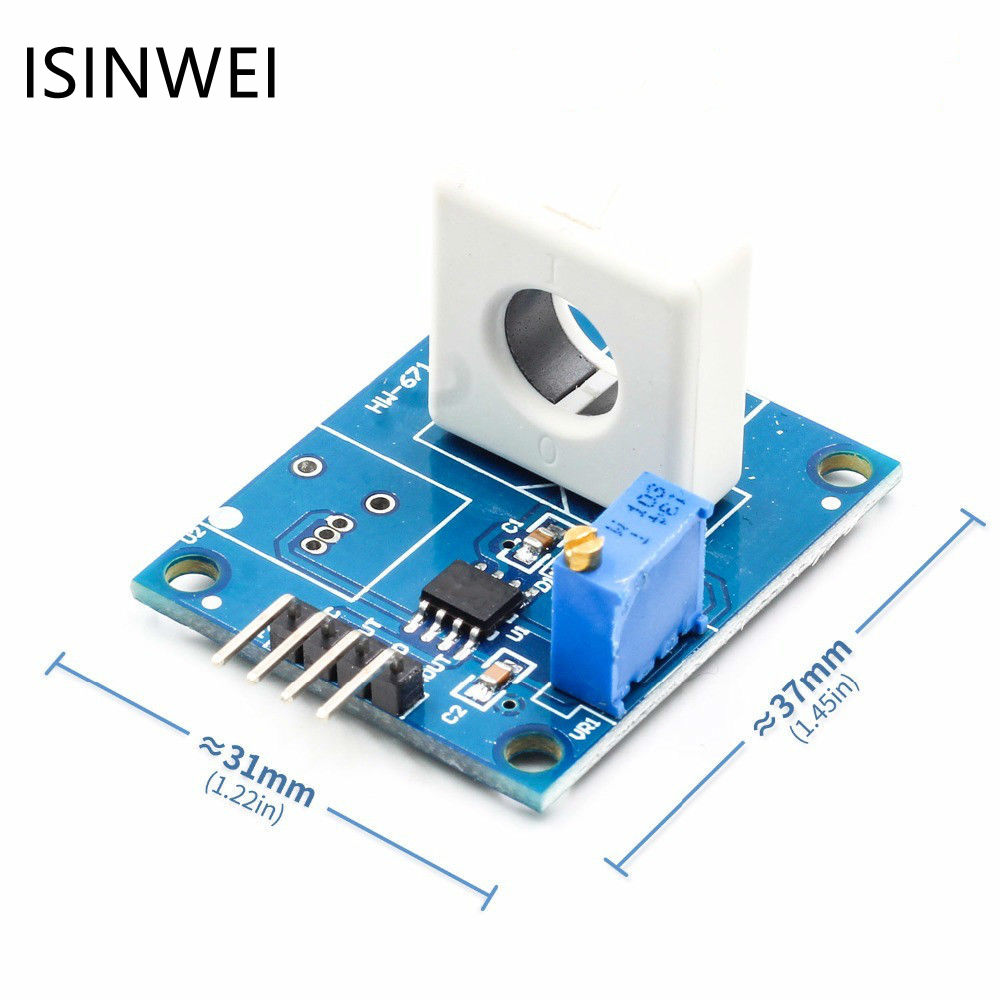

Size: Length 37mmX high 16.5mm wide 31mmX
Main chip: LM393 op amp, WCS1800
Operating voltage: DC DC5V
1, with the signal output indicator;
2, the current detection range DC ± 35A AC: 25A;
3, the current detection resolution of 60mV / A;
4, output overcurrent signal indication;
5, the critical point set overcurrent signal is adjustable, set the resolution 1.5A;
6, with mounting holes for easy firmware installation;
7, sample current conversion analog signal output, which can be accessed ADC, TTL level signal output, which can be accessed microcontroller IO port control.
Package included:
1 x WCS1800 Hall Current Sensor 35A Short Over-Current Detector Protection Module
